(8-114) - ARM AND BOOM HOLDING OPTION, ARM COMPONENTS, MODELS WITH LONG REACH

Запчасти Case 9040B (8-114) - ARM AND BOOM HOLDING OPTION, ARM COMPONENTS, MODELS WITH LONG REACH (08) - HYDRAULICS

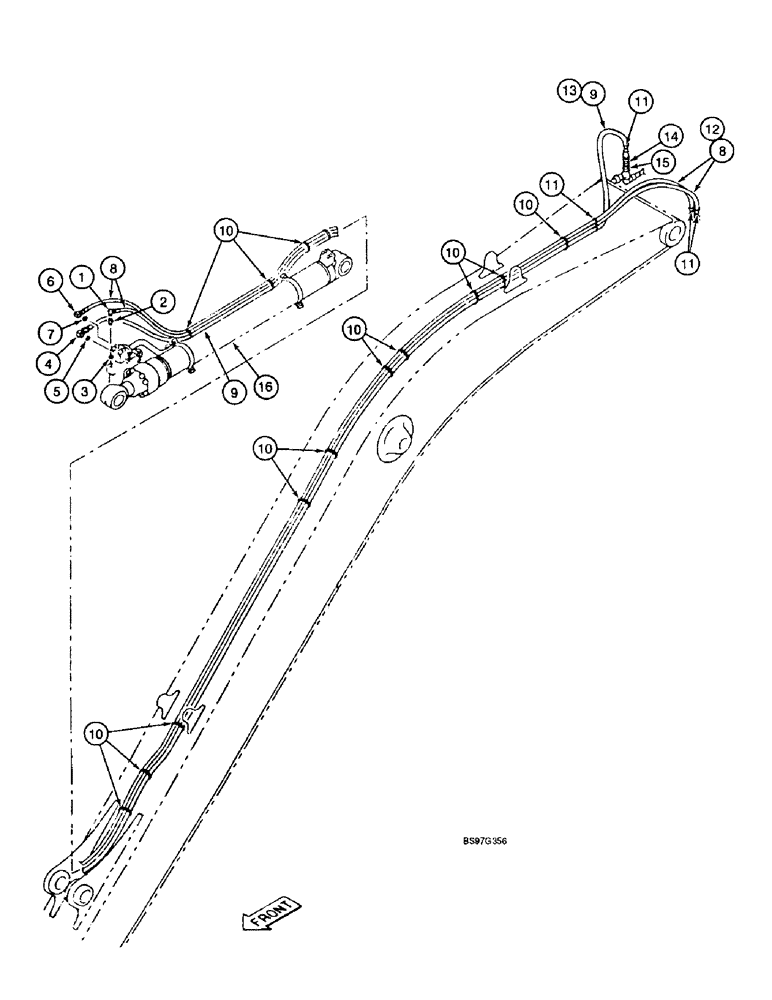

Схема запчастей Case 9040B - (8-114) - ARM AND BOOM HOLDING OPTION, ARM COMPONENTS, MODELS WITH LONG REACH (08) - HYDRAULICS
15
1
3
8
10
10
9
5
10
6
7
11
8
10
15
2
4
9
11
10
14
12
13
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

153495A1

ADAPTER

ELBOW - 90 degree

1шт.

2

153413A1

SOCKET

REDUCER - special, Includes: Ref. 3

1шт.

3

154475A1

O-RING

- reducer

1шт.

4

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 5

1шт.

5

154503A1

O-RING

- elbow

1шт.

6

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 7

1шт.

7

154475A1

O-RING

- elbow

1шт.

8

164424A1

HYDRAULIC HOSE

11 Meters

2шт.

9

164425A1

HYDRAULIC HOSE,19.00 mm ID x 11000.00 mm

19.00 mm ID x 11000.00 mm

1шт.

10

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

13шт.

11

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

6шт.

12

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

2шт.

13

157865A1

TUBE,28 mm ID, 34 mm OD, 800 mm Length

SLEEVE - corrugated

1шт.

14

150720A1

ADAPTER

- straight, special

1шт.

15

164426A1

BUSHING

- reducer

1шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, see figures 8-175A, 176 and 8-179A for correct cylinder and components

1шт.
