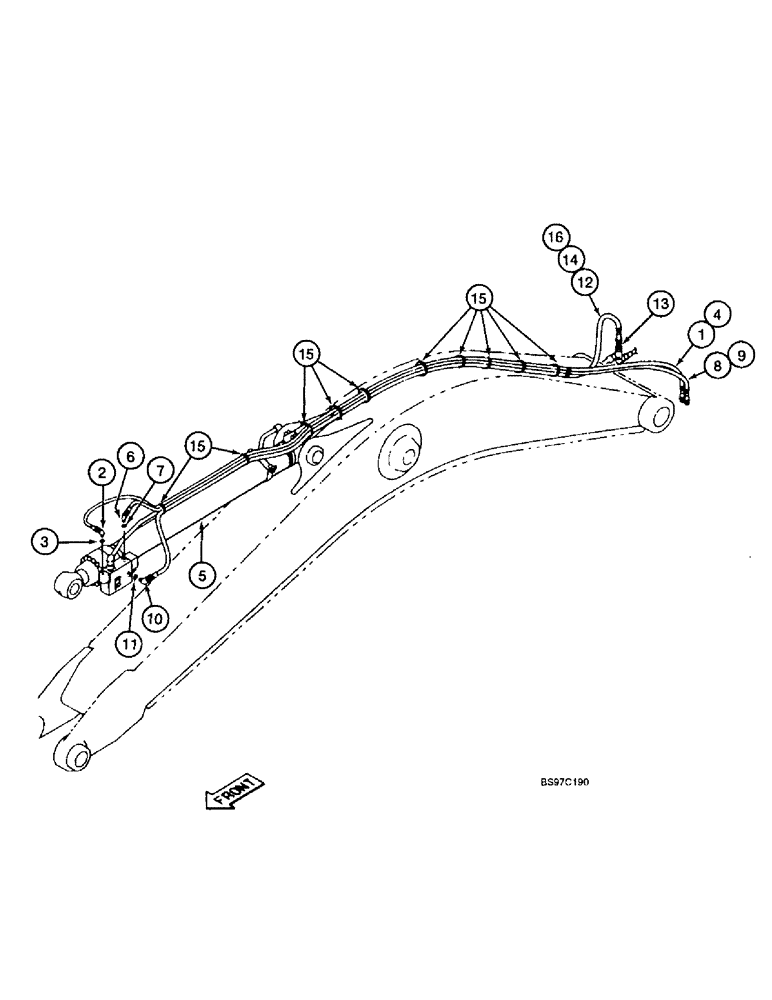

Запчасти Case 9040B (8-112) - ARM AND BOOM HOLDING OPTION, ARM COMPONENTS, STANDARD MODELS WITHOUT LONG REACH (08) - HYDRAULICS

1

162798A1

HOSE,6500.00 mm

arm cylinder release signal line (from fitting Ref. 9 figure 8-108 to port " P" of the arm cylinder lock valve) 6500.00 mm

1шт.

2

159367A1

ELBOW

- 90 degree, special, Includes: Ref. 3

1шт.

3

154475A1

O-RING

- elbow

1шт.

4

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

5

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, see figures 8-172, 8-175A and 8-178 for correct cylinder and components

1шт.

6

159367A1

ELBOW

- 90 degree, special, Includes: Ref. 7

1шт.

7

154475A1

O-RING

- elbow

1шт.

8

162798A1

HOSE,6500.00 mm

arm cylinder release signal return line (from port "T" of the arm cylinder lock valve to the fitting Ref. 10 figure 8-108) 6500.00 mm

1шт.

9

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

10

159370A1

ELBOW

- 90 degree, special, Includes: Ref. 11

1шт.

11

154487A1

O-RING

- elbow

1шт.

12

162801A1

HYDRAULIC HOSE,12.70 mm ID x 6500.00 mm

(From arm cylinder lock valve to tee in center of arm and boom return line) 12.70 mm ID x 6500.00 mm

1шт.

13

150073A1

ADAPTER

- straight, connects to Ref. 29 figure 8-108

1шт.

14

158061A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

15

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

10шт.

16

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

6шт.
