Запчасти Case 9040B (8-108) - ARM AND BOOM HOLDING OPTION, UPPER STRUCTURE-MOUNTED COMPONENTS (08) - HYDRAULICS

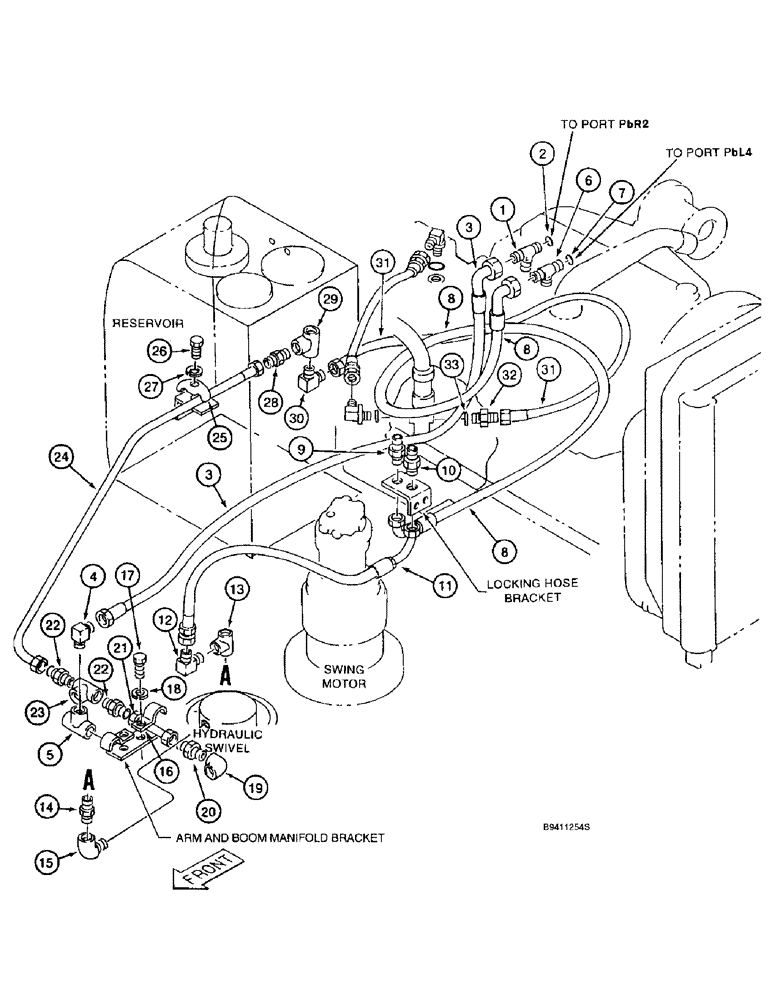

Схема запчастей Case 9040B - (8-108) - ARM AND BOOM HOLDING OPTION, UPPER STRUCTURE-MOUNTED COMPONENTS (08) - HYDRAULICS
21
30
29
16
31
26
7
33
20
32
12
14
3
19
8
22
8
22
23
18
1
27
31
10
28
8
17
24
3
25
9
5
6
4
13
2
15
11

Артикул

Название

Примечание

Количество

1

162827A1

TEE

- special (installed in control valve port " PbR2"), control signal lines

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee, control signal lines

1шт.

3

161661A1

HYDRAULIC HOSE

- 1850 mm (72-13/16 inch) long, Boom-release signal line (From tee in control valve port "PbR2" to arm and boom manifold bracket), Control

1шт.

4

153495A1

ADAPTER

ELBOW - 90 degree, control signal lines

1шт.

5

161976A1

TEE

- special, connects to ref 1 and 16 on figure 8-110, control signal lines

1шт.

6

162827A1

TEE

- special (installed in control valve port " PbL4"), control signal lines

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee, control signal lines

1шт.

8

159230A1

HOSE ASSY.

HOSE - 2150 mm (84-5/8 inch) long, arm-release signal line (from tee in control valve port "PbL4" to locking hose bracket), control

1шт.

9

162826A1

ADAPTER

- straight, special, connects to Ref. 1 figure 8-112, control signal lines

1шт.

10

162826A1

ADAPTER

- straight, special, connects to Ref. 8 on figure 8-112, return lines

1шт.

11

162835A1

HOSE ASSY.

HOSE - 600 mm (23-5/8 inch) long, arm-release return line (from fittingat locking hose bracket to tee at hydraulic swivel), return lines

1шт.

12

153495A1

ADAPTER

ELBOW - 90 degree, return lines

1шт.

13

150702A1

TEE

- special, connects to ref 29 on figure 8-10, return lines

1шт.

14

150850A1

NIPPLE, LUBE

BUSHING - reducer, replaces 152131A1, return lines

1шт.

15

152161A1

ELBOW

- 90 degree, return lines

1шт.

16

161935A1

CLAMP

- tube, return lines

1шт.

17

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Return lines Hex, M12 x 1.75 x 40, 10.9, Full Thd

1шт.

18

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Return Lines M12

1шт.

19

153563A1

ELBOW

- 90 degree, connects to Ref. 23 on figure 8-110, return lines

1шт.

20

161947A1

ELEC CONNECTOR

CONNECTOR - hydraulic, return lines

1шт.

21

161934A1

HYD TUBE,93.2 mm ID, 101.6 mm OD

TUBE - boom release return line (in fitting cluster at arm and boom manifold bracket to return hose)

1шт.

22

161947A1

ELEC CONNECTOR

CONNECTOR - hydraulic, return lines

2шт.

23

153589A1

TEE

- special, connects to ref 8 on figure 8-110, return lines

1шт.

24

164903A1

TUBE ASSY.

TUBE - boom release return line (from fitting cluster at arm and boom manifold bracket to hose) replaces 162616A1

1шт.

25

161935A1

CLAMP

- tube, return lines

1шт.

26

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Return lines Hex, M12 x 1.75 x 40, 10.9, Full Thd

1шт.

27

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Return Lines M12

1шт.

28

151672A1

MULTIPOLE CONNECTOR

CONNECTOR - hydraulic, return lines

1шт.

29

151809A1

TEE

- hydraulic, connects to Ref. 13 on figure 8-112, return lines

1шт.

30

150602A1

ADAPTER

ELBOW - 90 degree, return lines

1шт.

31

162226A1

HYDRAULIC HOSE,12.70 mm ID x 1100.00 mm

- Boom-release return line (From tube to cooler-to-reservoir return tube) 12.70 mm ID x 1100.00 mm

1шт.

32

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, return lines, Includes: Ref. 33

1шт.

33

154487A1

O-RING

- adapter, return lines

1шт.

Выбрано товаров: 33
