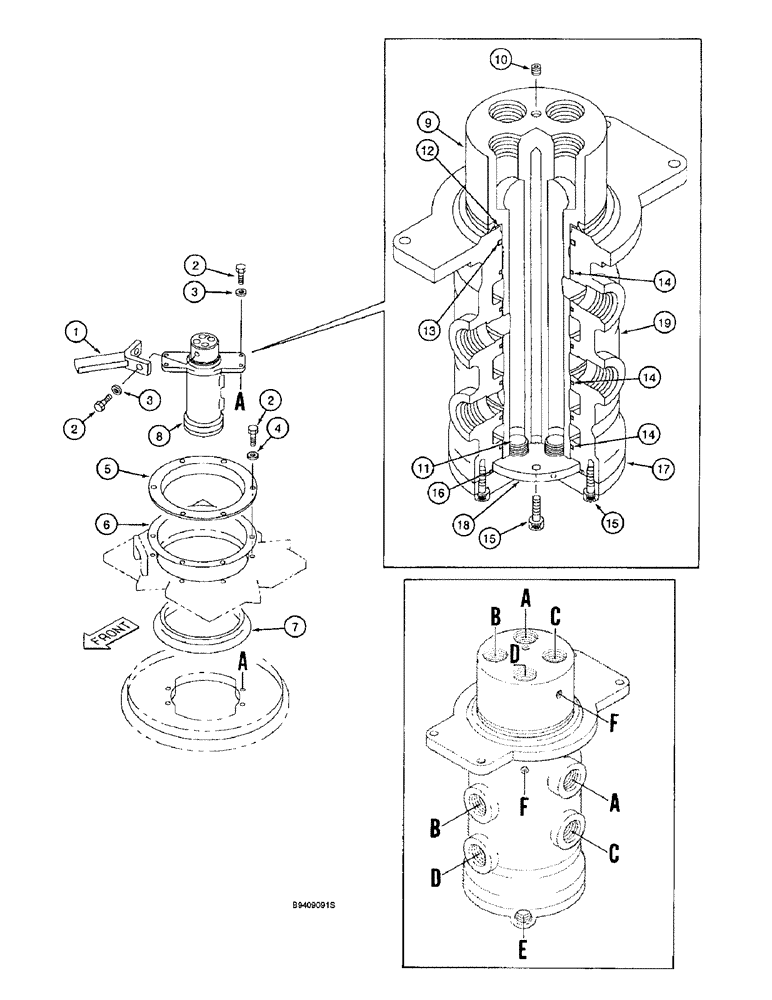

Запчасти Case 9040B (8-106) - HYDRAULIC SWIVEL (08) - HYDRAULICS

1

159664A1

LOCKING BAR

BAR - lock

1шт.

2

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

12шт.

3

150811A1

WASHER

- flat, special, 12 mm

6шт.

4

161498A1

SEALING WASHER

WASHER - sealing, special

6шт.

5

159666A1

RETAINER

- seal

1шт.

6

159667A1

RUBBER SEAL

- rubber

1шт.

7

159665A1

SEALING RING

SEAL - ring

1шт.

8

159680A1

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, Includes: Ref. 9 - 19

1шт.

9

159681A1

AXLE

- swivel assembly, Includes: Ref. 10 and 11

1шт.

10

150821A1

PLUG

- port, top of swivel

1шт.

11

150829A1

PLUG

- port, thrust plate

4шт.

12

151814A1

SEAL,72mm ID x 84mm OD x 11mm Thk

RING - swivel shaft, v type

1шт.

13

154688A1

O-RING

- axle

1шт.

14

165485A1

SEALING RING

RING - sealing

6шт.

15

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

8шт.

16

154721A1

O-RING,99.4mm ID x 3.1mm Width

- thrust plate

1шт.

17

159663A1

COVER

- swivel, lower

1шт.

18

159662A1

PLATE, THRUST

PLATE - thrust

1шт.

19

159682A1

ROTOR

- swivel

1шт.
