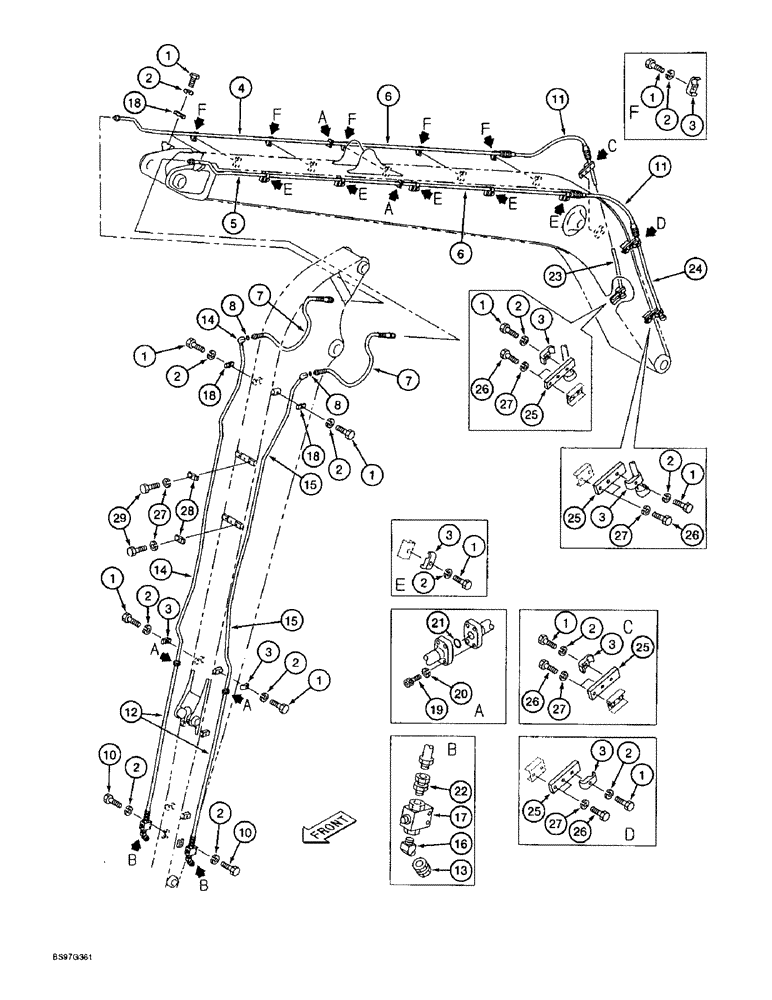

Запчасти Case 9040B (8-104) - AUXILIARY EQUIPMENT OPTION, SUPPLY AND CYLINDER LINES, FOR LONG REACH 7.9 METER ARM (08) - HYDRAULICS

1

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

20шт.

2

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

24шт.

3

151486A1

CLAMP BRACKET

CLAMP - tube

16шт.

4

164427A1

HYD TUBE

TUBE - hydraulic, on boom, arm end, right-hand

1шт.

5

164428A1

HYD TUBE

TUBE - hydraulic, on boom, arm end, left-hand

1шт.

6

164429A1

HYD TUBE

TUBE - hydraulic, on boom, middle

2шт.

7

162772A1

HYDRAULIC HOSE,19.00 mm ID x 1700.00 mm

- Includes Ref. 8 19.00 mm ID x 1700.00 mm

2шт.

8

154503A1

O-RING

- hose

2шт.

10

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

4шт.

11

163298A1

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

19.00 mm ID x 1000.00 mm

2шт.

12

164432A1

HYD TUBE

TUBE - hydraulic, on arm, bucket end

2шт.

13

153683A1

PLUG

CAP - hex, BSPP flare, used with 152400A1 elbow only

2шт.

13

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch, used with 284600A1 elbow only

2шт.

14

165325A1

HYD TUBE

TUBE - hydraulic, on arm, boom end, right-hand

1шт.

15

165324A1

HYD TUBE

TUBE - hydraulic, on arm, boom end, left-hand

1шт.

16

152400A1

ADAPTER

ELBOW - 45 degree, special, BSPT male pipe x BSPP flare, shipped on machines with auxiliary equipment option

2шт.

16

284600A1

NIPPLE, LUBE

ELBOW - 45 degree, BSPT male pipe x 1-1/16-12 inch flare (SAE 12), service option

2шт.

17

153692A1

VALVE

- stop

2шт.

18

152085A1

COLLAR

CLAMP - tube

4шт.

19

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

16шт.

20

112309A1

LOCK WASHER

- lock, special

16шт.

21

154528A1

O-RING

- tube joint

4шт.

22

153638A1

ADAPTER

- straight, special

2шт.

23

164435A1

HYD TUBE

TUBE - hydraulic, on boom, frame end, right-hand

1шт.

24

165899A1

HYD TUBE

TUBE - hydraulic, on boom, frame end, left-hand

1шт.

25

163302A1

BAR

BRACKET - flat, clamp mounting

4шт.

26

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

8шт.

27

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

10шт.

28

159742A1

COLLAR

CLAMP - tube

2шт.

29

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.
