Запчасти Case 9040B (8-092) - DOUBLE ACTION AUXILIARY EQUIP OPTION, FILTER & SELECTOR VLV CIRCTS,STD MODLS PRIOR TO PIN DAC0401166 (08) - HYDRAULICS

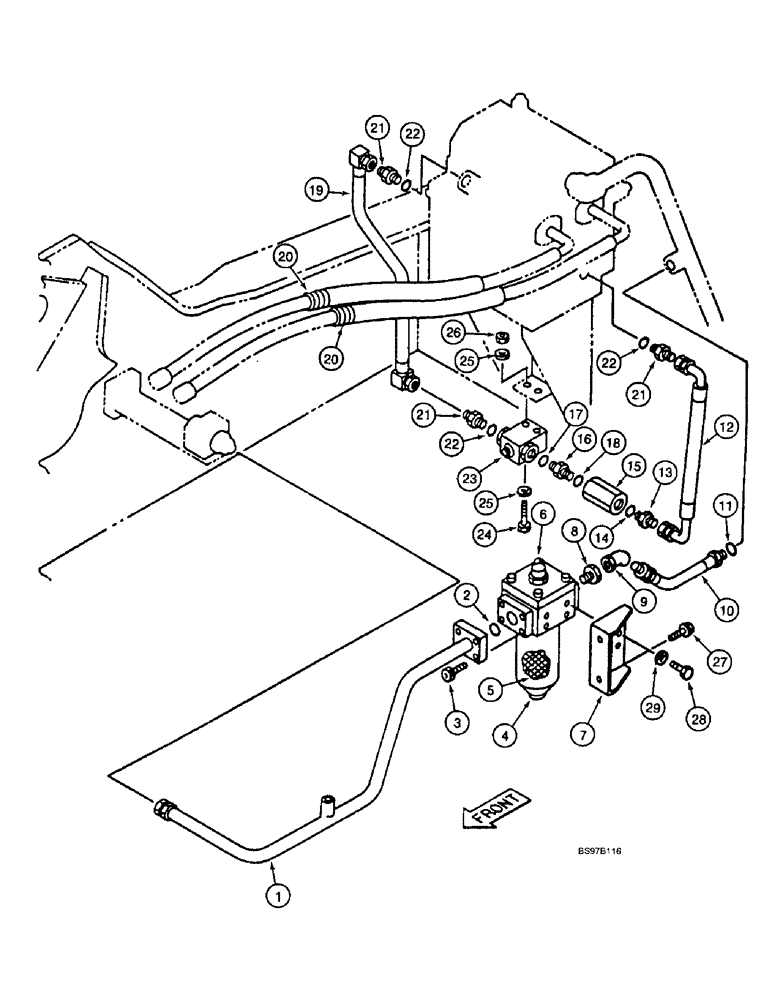

Схема запчастей Case 9040B - (8-092) - DOUBLE ACTION AUXILIARY EQUIP OPTION, FILTER & SELECTOR VLV CIRCTS,STD MODLS PRIOR TO PIN DAC0401166 (08) - HYDRAULICS
14
21
21
13
24
17
1
22
18
22
22
26
7
25
25
16
20
3
28
12
19
4
23
8
21
6
2
20
9
11
29
5
27
15
10

Артикул

Название

Примечание

Количество

1

159719A1

HYD TUBE,20.8 mm ID, 27 mm OD

TUBE - hydraulic

1шт.

2

154623A1

O-RING

-, Serial Range: tube-filter

1шт.

3

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

4шт.

4

159704A1

FILTER ASSY

FILTER ASSEMBLY - line, Includes: Ref. 5 and 6

1шт.

5

159705A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

6

159706A1

INDICATOR

GAUGE - special indicator

1шт.

7

159717A1

BRACKET

- mounting

1шт.

8

157506A1

BUSHING

- special

1шт.

9

152400A1

ADAPTER

ELBOW - 45 degree, special

1шт.

10

162838A1

HYDRAULIC HOSE,19.00 mm ID x 360.00 mm

- Includes Ref. 11 19.00 mm ID x 360.00 mm

1шт.

11

154503A1

O-RING

- hose

1шт.

12

159715A1

HYDRAULIC HOSE,19.00 mm ID x 480.00 mm

19.00 mm ID x 480.00 mm

1шт.

13

159387A1

ADAPTER

- straight, special, Includes: Ref. 14

1шт.

14

154523A1

O-RING

- adapter

1шт.

15

159484A1

VALVE

- check

1шт.

16

159712A1

ADAPTER

- straight, special, Includes: Ref. 17 and 18

1шт.

17

154523A1

O-RING

- adapter

1шт.

18

154503A1

O-RING

- adapter

1шт.

19

159725A1

TUBE,20.8 mm ID, 27.2 mm OD

- transfer

1шт.

20

159498A1

GUARD

- hose

2шт.

21

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 22

3шт.

22

154503A1

O-RING

- adapter

1шт.

23

159485A1

VALVE

- selector

1шт.

24

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

25

150811A1

WASHER

- flat, special, 12 mm

4шт.

26

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

27

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

28

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

29

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

Выбрано товаров: 29
