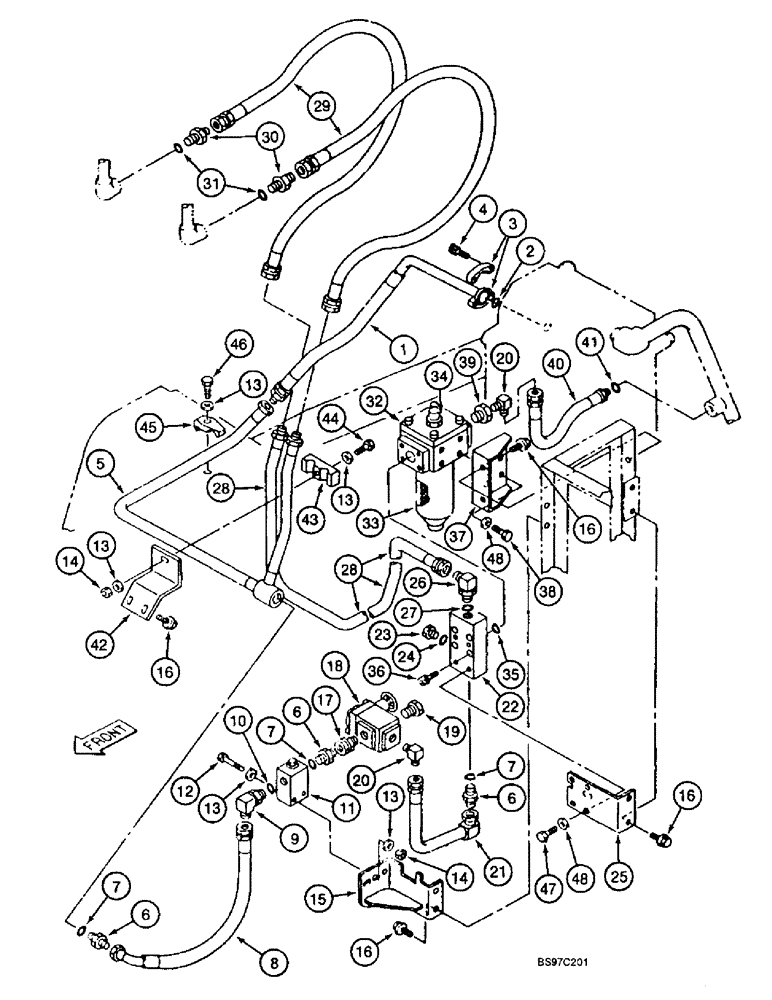

Запчасти Case 9040B (8-086) - SING ACTN AUXLY EQUIP OPT,CYLDR SPPLY LINES/RELIEF CIRCT,STD MODELS PIN DAC0401166 & AFT,LNG RCH MOD (08) - HYDRAULICS

1

162203A1

HYDRAULIC HOSE,19.00 mm ID x 560.00 mm

19.00 mm ID x 560.00 mm

1шт.

2

155210A1

O-RING

- seal

1шт.

3

153458A1

FLANGE

- split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

5

162204A1

HYD TUBE,20.8 mm ID, 27.2 mm OD

TUBE - hydraulic

1шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 7

3шт.

7

154503A1

O-RING

- adapter

3шт.

8

159724A1

HYDRAULIC HOSE,19.00 mm ID x 660.00 mm

19.00 mm ID x 660.00 mm

1шт.

9

159372A1

ELBOW

- 90 degree, special, Includes: Ref. 10

1шт.

10

154503A1

O-RING

- elbow

1шт.

11

159727A1

MANIFOLD

- hydraulic

1шт.

12

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

- hex, 12 - 1.75 x 75 mm, class 10.9

2шт.

13

150811A1

WASHER

- flat, special, 12 mm

7шт.

14

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

3шт.

15

165351A1

BRACKET

- hydraulic line support, manifold mounting

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

8шт.

17

153638A1

ADAPTER

- straight, special

1шт.

18

159490A1

VALVE

- relief

1шт.

19

151002A1

PLUG

- pipe

1шт.

20

153622A1

ADAPTER

ELBOW - 90 degree, special

2шт.

21

165347A1

TUBE ASSY.,27.2 mm OD

TUBE - relief valve to manifold

1шт.

22

165349A1

MANIFOLD

- hydraulic

1шт.

23

152924A1

PLUG

- manifold port, Includes: Ref. 24

1шт.

24

154503A1

O-RING

- plug

1шт.

25

162234A1

BRACKET

- manifold mounting

1шт.

26

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 27

1шт.

27

154503A1

O-RING

- elbow

1шт.

28

165355A1

TUBE ASSY.

TUBE -, Serial Range: manifold-cylinder

1шт.

29

165354A1

HYDRAULIC HOSE,25.40 mm ID x 1850.00 mm

25.40 mm ID x 1850.00 mm

2шт.

30

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, Includes: Ref. 31

2шт.

31

154523A1

O-RING

- adapter

1шт.

32

159704A1

FILTER ASSY

FILTER ASSEMBLY - line, Includes: Ref. 33 and 34

1шт.

33

159705A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

34

159706A1

INDICATOR

GAUGE - special indicator

1шт.

35

154623A1

O-RING

-, Serial Range: manifold-filter

1шт.

36

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 70 mm, class 12.9

4шт.

37

165350A1

BRACKET

- filter mounting

1шт.

38

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

39

157506A1

BUSHING

- special

1шт.

40

165352A1

HYDRAULIC HOSE,19.00 mm ID x 430.00 mm

- Includes Ref. 41 19.00 mm ID x 430.00 mm

1шт.

41

154503A1

O-RING

- hose

1шт.

42

159435A1

BRACKET

- mounting

1шт.

43

152085A1

COLLAR

CLAMP - tube

1шт.

44

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

45

151486A1

CLAMP BRACKET

CLAMP - tube

1шт.

46

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

1шт.

47

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

48

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

8шт.
