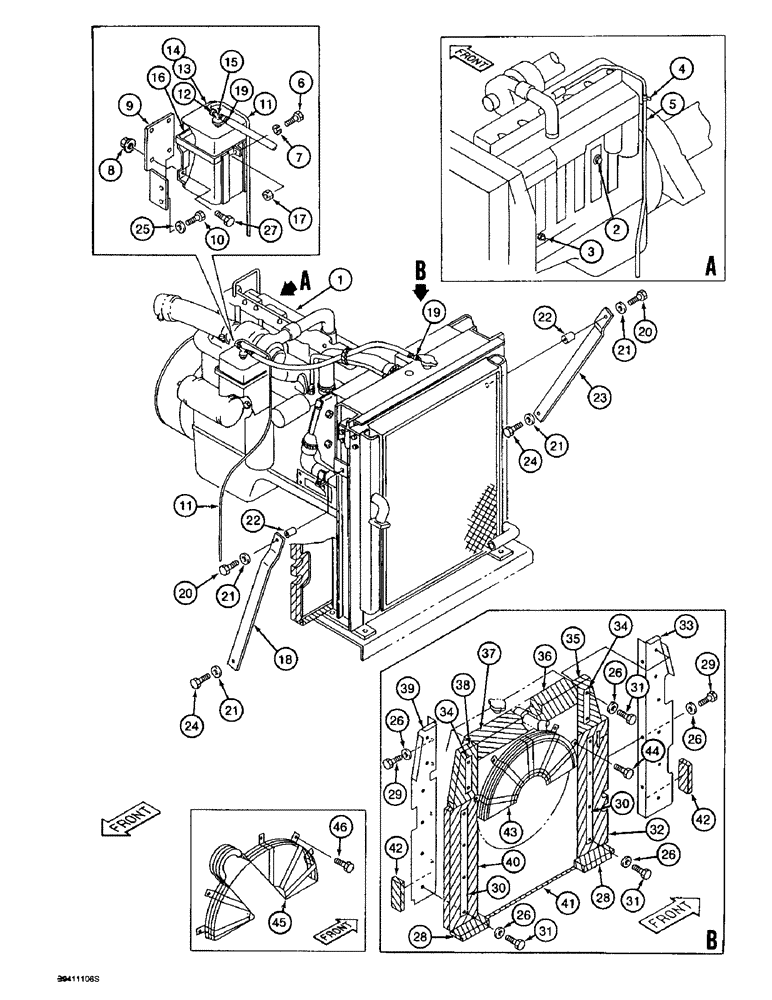

Запчасти Case 9040B (2-06) - RADIATOR SUPPORTS AND COOLANT OVERFLOW RESERVOIR, PRIOR TO P.I.N. DAC04#2001 (02) - ENGINE

1

REF

INSTRUCTION

ENGINE ASSEMBLY - see parts list figures 2-18 thru 2-98 and 3-12 thru 3-30, Includes: Ref. 2

1шт.

2

1983238C1

SENSOR,1/2" - 14

SENDER - engine coolant temperature, coolant

1шт.

3

1546461C1

SWITCH

- oil pressure, 10 psi

1шт.

4

157916A1

CLAMP

- special, engine breather hose

1шт.

5

1981644C1

HOSE

- 1100 mm (43-5/16 inch) long, special, engine breather

1шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9, Reservoir holder

1шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

8

150472A1

FLANGE NUT

- hex flange, special, 8 mm - 1.25

4шт.

9

160623A1

BRACKET

- reservoir holder

1шт.

10

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9, Holder to bracket

2шт.

11

150074A1

HOSE

- 1400 mm (55-1/8 inch) long, reservoir overflow

1шт.

12

153040A1

COLLAR

CLAMP - wire-type

1шт.

160639A1

RESERVOIR, COOLANT E

RESERVOIR ASSEMBLY - coolant overflow, Includes: Ref. 13 - 15

1шт.

13

161740A1

SWITCH

- sender, coolant level

1шт.

14

161847A1

RESERVOIR, COOLANT E

RESERVOIR - coolant overflow

1шт.

15

161848A1

PLUG

CAP - reservoir, removable

1шт.

16

150705A1

HOLDER

- coolant overflow reservoir

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

18

158960A1

SUPPORT

- radiator, left-hand, front

1шт.

19

153042A1

CLAMP

- adjustable, wire type, radiator overflow hose

2шт.

20

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

Radiator support Hex, M16 x 70, 10.9

2шт.

21

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

22

158958A1

SPACER

- special

2шт.

23

158959A1

SUPPORT

- radiator, left-hand, rear

1шт.

24

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

Radiator support Hex, M16 x 40, 10.9

2шт.

25

150811A1

WASHER

- flat, special, 12 mm

2шт.

26

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

20шт.

27

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

28

158978A1

SEAL

- cushion

2шт.

29

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

8шт.

30

158969A1

RING

RETAINER - seal

2шт.

31

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

12шт.

32

158974A1

SEAL

- cushion, with notches

1шт.

33

158967A1

BRACKET

- radiator, left-hand, front

1шт.

34

158968A1

RING

RETAINER - seal

2шт.

35

158972A1

SEAL

- cushion

1шт.

36

158975A1

SEAL

- cushion

1шт.

37

158976A1

SEAL

- cushion

1шт.

38

158971A1

SEAL

- cushion

1шт.

39

158966A1

BRACKET

- radiator, left-hand, rear

1шт.

40

158973A1

SEAL

- cushion

1шт.

41

158965A1

SEAL

- cushion

1шт.

42

158977A1

SEAL

- cushion

2шт.

43

158155A1

GUARD

- fan, machines without air conditioning

1шт.

44

162120A1

BOLT,Sems, Hex, M10 x 20mm, Spcl

BOLT - special, fan guard

4шт.

45

162910A1

GUARD ASSY.

GUARD - fan, machines with air conditioning

1шт.

46

162120A1

BOLT,Sems, Hex, M10 x 20mm, Spcl

BOLT - special, air conditioning fan guard

7шт.
