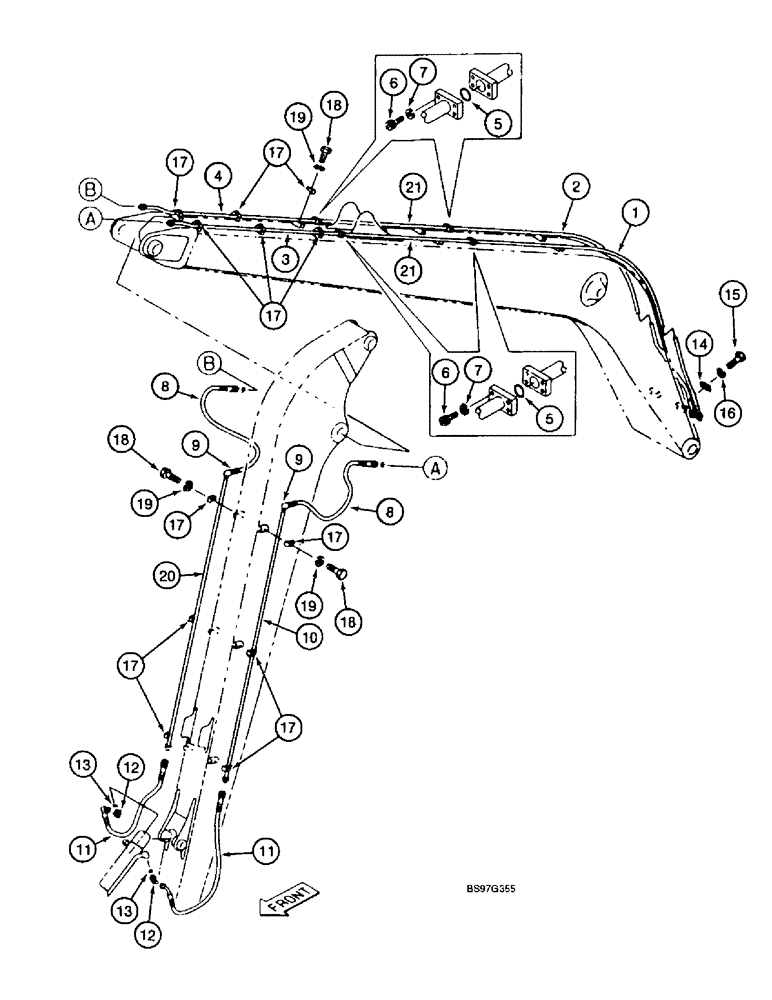

Запчасти Case 9040B (8-076) - BUCKET CYLINDER LINES, 7.9 METER ARM, LONG REACH MODELS (08) - HYDRAULICS

1

162852A1

HYD TUBE,27.2 mm OD

TUBE - hydraulic, to bucket cylinder, at base of boom, left-hand

1шт.

2

162856A1

HYD TUBE

TUBE - hydraulic, to bucket cylinder, at base of boom, right-hand

1шт.

3

162854A1

HYD TUBE,27.2 mm OD

TUBE - hydraulic, to bucket cylinder, at top of boom, left-hand

1шт.

4

162857A1

HYD TUBE,27.2 mm OD

TUBE - hydraulic, to bucket cylinder, at top of boom, right-hand

1шт.

5

154528A1

O-RING

- tube flange

4шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

16шт.

7

112309A1

LOCK WASHER

- lock, special

16шт.

8

162772A1

HYDRAULIC HOSE,19.00 mm ID x 1700.00 mm

- Includes Ref. 9 19.00 mm ID x 1700.00 mm

2шт.

9

154503A1

O-RING

- hose

1шт.

10

164225A1

HYD TUBE

TUBE - hydraulic, to bucket cylinder, on arm, left-hand

1шт.

11

164215A1

HYDRAULIC HOSE,19.00 mm ID x 800.00 mm

19.00 mm ID x 800.00 mm

2шт.

12

159372A1

ELBOW

- 90 degree, special, Includes: Ref. 13

2шт.

13

154503A1

O-RING

- elbow

1шт.

14

159742A1

COLLAR

CLAMP - tube

1шт.

15

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

16

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

17

151486A1

CLAMP BRACKET

CLAMP - tube

14шт.

18

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

14шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

14шт.

20

164226A1

HYD TUBE

TUBE - hydraulic, to bucket cylinder, on arm, right-hand

1шт.

21

162853A1

HYD TUBE,27.2 mm OD

TUBE - hydraulic, to bucket cylinder, middle of boom

2шт.
