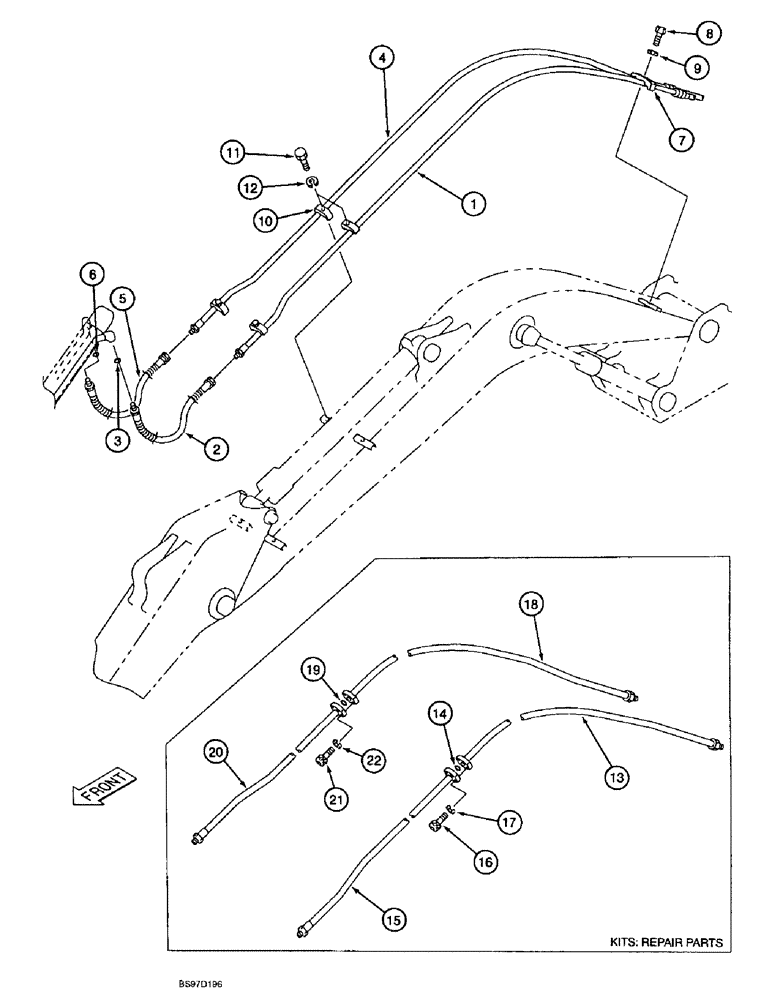

Запчасти Case 9040B (8-074) - BUCKET CYLINDER LINES, 3.50 METER ARM (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

TUBE - bucket-open line, replace with Kit No. 159476A1 shown below

1шт.

2

162915A1

HYDRAULIC HOSE,19.00 mm ID x 2100.00 mm

- Bucket-open line, 3.5 meter arm, Includes Ref. 3 19.00 mm ID x 2100.00 mm

1шт.

3

154503A1

O-RING

- line seal

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - bucket-close line, replace with Kit No. 159475A1 shown below

1шт.

5

162915A1

HYDRAULIC HOSE,19.00 mm ID x 2100.00 mm

- Bucket-open line, 3.5 meter arm, Includes Ref. 19.00 mm ID x 2100.00 mm

1шт.

6

154503A1

O-RING

- line seal

1шт.

7

159742A1

COLLAR

CLAMP - bucket cylinder lines

1шт.

8

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

1шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

10

151486A1

CLAMP BRACKET

CLAMP - bucket cylinder lines

4шт.

11

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

4шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

159476A1

TUBE

KIT - bucket-open line, See Note, Includes: Ref. 13 - 17

1шт.

13

159474A1

TUBE

- replacement, input end, bucket-open line

1шт.

14

154528A1

O-RING

- line seal

1шт.

15

159473A1

TUBE,27.2 mm OD, 2419.9 mm Length

- replacement, output end, bucket-open line

1шт.

16

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

17

112309A1

LOCK WASHER

- lock, special

4шт.

159475A1

TUBE

KIT - bucket-close line, See Note, Includes: Ref. 18 - 22

1шт.

18

159472A1

TUBE

- replacement, input end, bucket-close line

1шт.

19

154528A1

O-RING

- line seal

1шт.

20

159471A1

TUBE

- replacement, output end, bucket-close line

1шт.

21

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

22

112309A1

LOCK WASHER

- lock, special

4шт.
