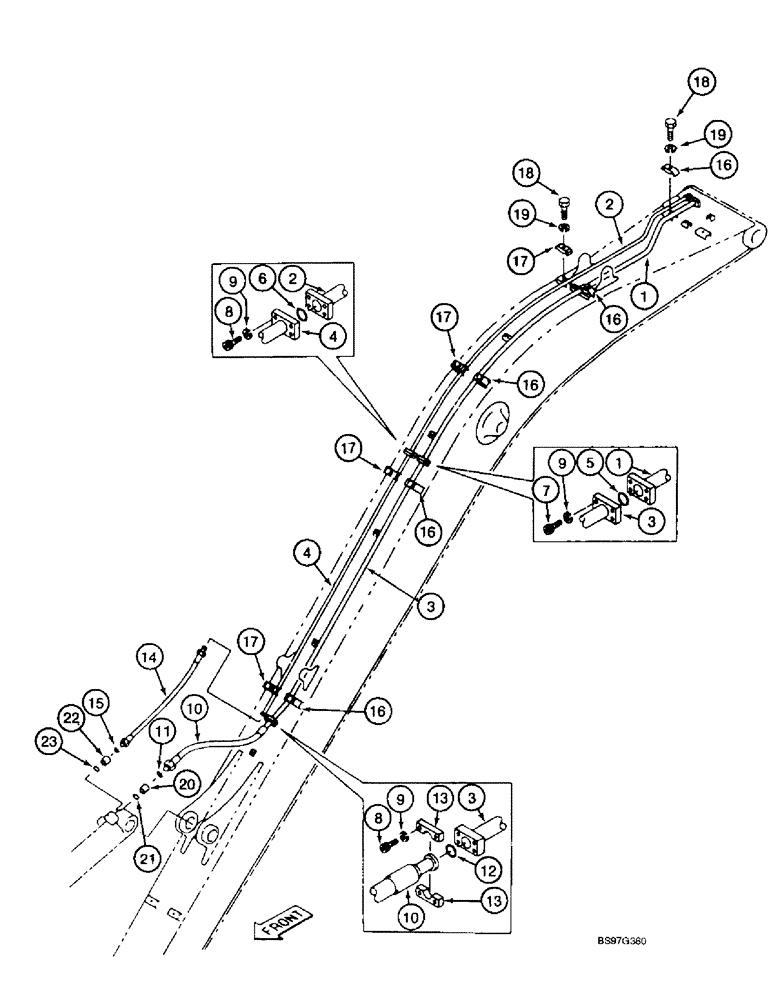

Запчасти Case 9040B (8-070) - ARM CYLINDER LINES, LONG REACH MODELS (08) - HYDRAULICS

1

162848A1

HYD TUBE

TUBE - hydraulic, to closed end of arm cylinder, at base of boom, left-hand

1шт.

2

162850A1

HYD TUBE

TUBE - hydraulic, to rod end of arm cylinder, at base of boom, right-hand

1шт.

3

162849A1

HYD TUBE,34 mm OD

TUBE - hydraulic, to closed end of arm cylinder, at top of boom, left-hand

1шт.

4

162851A1

HYD TUBE,27.2 mm OD

TUBE - hydraulic, to rod end of arm cylinder, at top of boom, right-hand

1шт.

5

154548A1

O-RING

- tube flange, left-hand tubes

1шт.

6

154528A1

O-RING

- tube flange, right-hand tubes

1шт.

7

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 45 mm, class 12.9

4шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

8шт.

9

112309A1

LOCK WASHER

- lock, special

12шт.

10

159739A1

HYDRAULIC HOSE,19.05mm ID x 1000mm L

- At closed end of arm cylinder, Includes Ref. 11 25.40 mm ID x 1000.00 mm

1шт.

11

154523A1

O-RING

- hose

1шт.

12

150678A1

O-RING

- tube flange to split flange type hose end

1шт.

13

153459A1

FLANGE

- split

2шт.

14

159740A1

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

- To rod end of arm cylinder, Includes Ref. 15 19.00 mm ID x 1000.00 mm

1шт.

15

154503A1

O-RING

- hose

1шт.

16

151489A1

CLAMP

- tube

6шт.

17

159742A1

COLLAR

CLAMP - tube

5шт.

18

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

11шт.

19

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

11шт.

20

162861A1

SOCKET

BUSHING - reducer

1шт.

21

154559A1

O-RING

- bushing

1шт.

22

162860A1

SOCKET

BUSHING - reducer

1шт.

23

154559A1

O-RING

- bushing

1шт.
