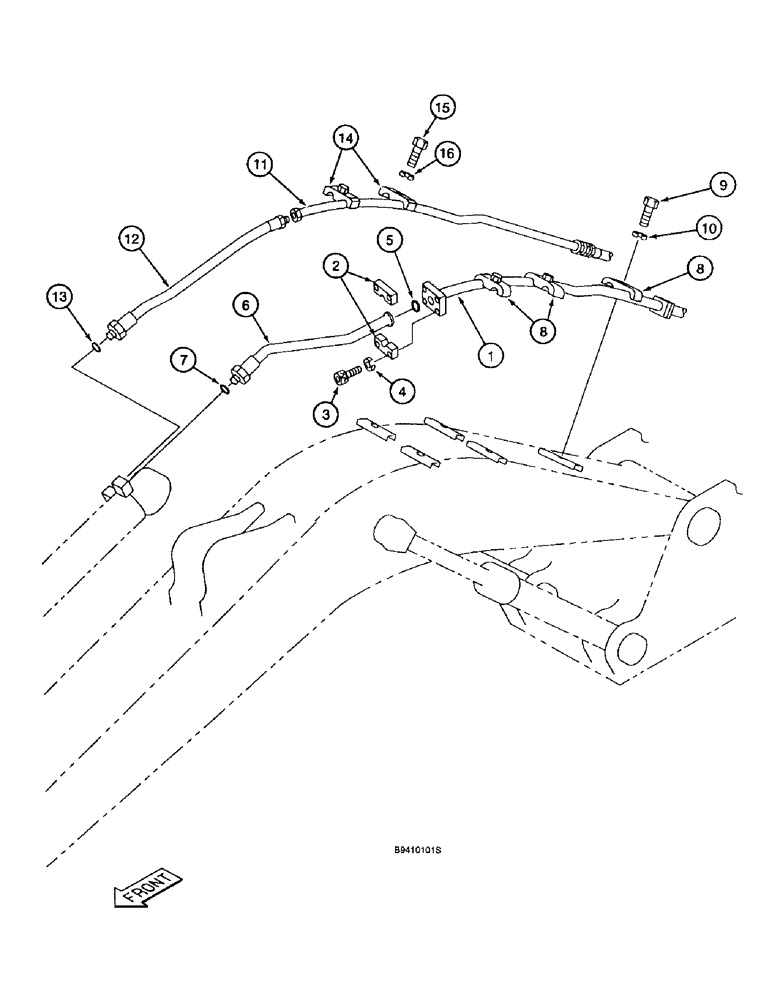

Запчасти Case 9040B (8-068) - ARM CYLINDER LINES, MODELS WITHOUT LONG REACH (08) - HYDRAULICS

1

159470A1

TUBE

- arm-in line, 3.09 meter arm with or without Load Hold and 3.5 meter arm without Load Hold

1шт.

1

162913A1

TUBE

- arm-in line, 3.5 meter arm with Load Hold

1шт.

2

153459A1

FLANGE

- split

2шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

4

112309A1

LOCK WASHER

- lock, special

4шт.

5

150678A1

O-RING

- tube assembly seal

1шт.

6

159739A1

HYDRAULIC HOSE,19.05mm ID x 1000mm L

- Arm-in line, Includes Ref. 7 25.40 mm ID x 1000.00 mm

1шт.

7

154523A1

O-RING

- cylinder seal

1шт.

8

151489A1

CLAMP

- tube

3шт.

9

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

3шт.

10

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

3шт.

11

159469A1

TUBE

- arm-out line, 3.09 meter arm with or without Load Hold and 3.5 meter arm without Load Hold

1шт.

11

162914A1

TUBE

- arm-out line, 3.5 meter arm with Load Hold

1шт.

12

159740A1

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

- Arm-out line, Includes Ref. 13 19.00 mm ID x 1000.00 mm

1шт.

13

154503A1

O-RING

- cylinder seal

1шт.

14

159742A1

COLLAR

CLAMP - tube

2шт.

15

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

16

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

2шт.
