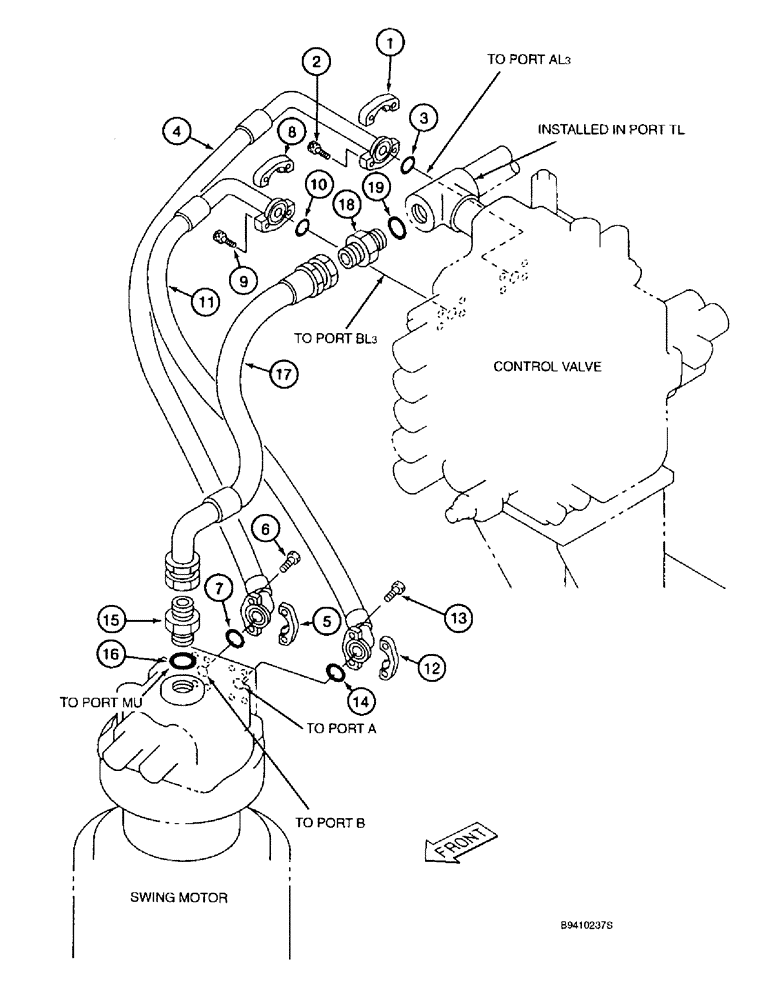

Запчасти Case 9040B (8-062) - SWING MOTOR CIRCUIT (08) - HYDRAULICS

1

153458A1

FLANGE

- split

2шт.

2

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

3

155210A1

O-RING

- seal, split flange

1шт.

4

159189A1

HYDRAULIC HOSE,19.00 mm ID x 710.00 mm

- Swing right power line (Control valve port "AL3" to swing motor port " B") 19.00 mm ID x 710.00 mm

1шт.

5

153458A1

FLANGE

- split

2шт.

7

155210A1

O-RING

- seal, split flange

1шт.

8

153458A1

FLANGE

- split

2шт.

9

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

10

155210A1

O-RING

- seal, split flange

1шт.

11

159190A1

HYDRAULIC HOSE,19.00 mm ID x 550.00 mm

- Swing left power line (Control valve port "BL3" to swing motor port "A") 19.00 mm ID x 550.00 mm

1шт.

12

153458A1

FLANGE

- split

2шт.

14

155210A1

O-RING

- seal, split flange

1шт.

15

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, Includes: Ref. 16

1шт.

16

154523A1

O-RING

- adapter

1шт.

17

159191A1

HYDRAULIC HOSE,25.40 mm ID x 620.00 mm

- Return line (From swing motor port "MU" to tee in control valve port "TL") 25.40 mm ID x 620.00 mm

1шт.

18

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, Includes: Ref. 19

1шт.

19

154523A1

O-RING

- adapter

1шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
