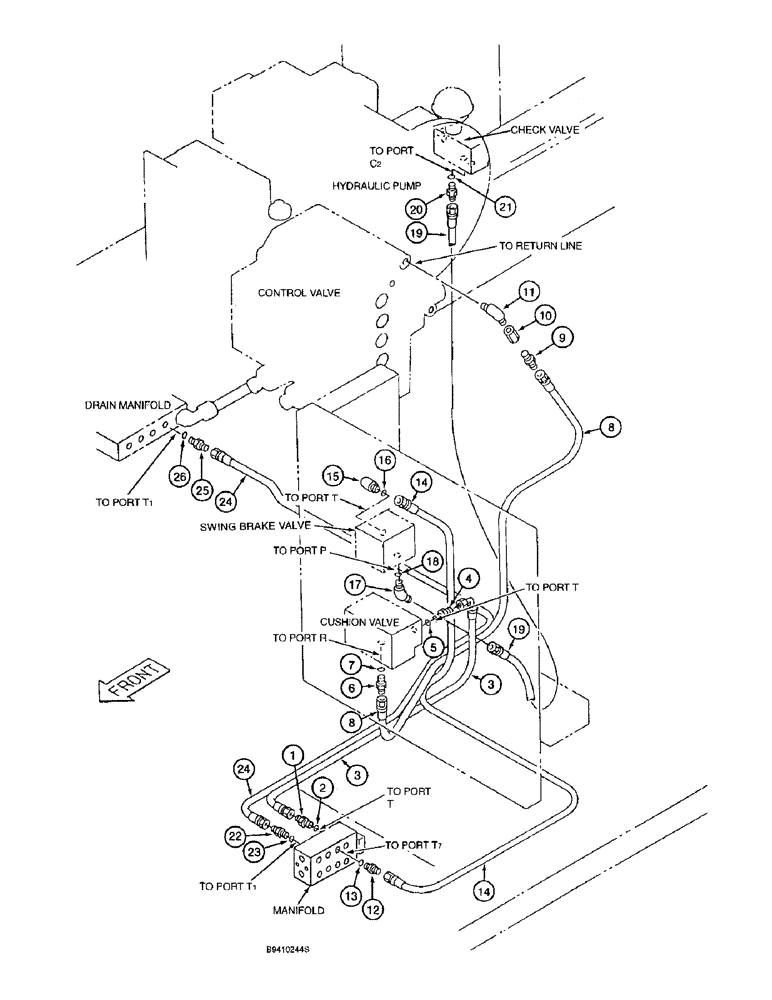

Запчасти Case 9040B (8-058) - MISCELLANEOUS PILOT LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
153378A1
ADAPTER
- straight, Includes: Ref. 2
1шт.
2
154475A1
O-RING
- adapter
1шт.
3
159019A1
HOSE ASSY.
HOSE - 900 mm (35-7/8 inch) long (pilot line between manifold port "T" and cushion valve port " T")
1шт.
4
153378A1
ADAPTER
- straight, Includes: Ref. 5
1шт.
5
154475A1
O-RING
- adapter
1шт.
6
153378A1
ADAPTER
- straight, Includes: Ref. 7
1шт.
7
154475A1
O-RING
- adapter
1шт.
8
153483A1
HOSE ASSY.
HOSE - 1450 mm (57 inch) long ( pilot line from cushion valve port "R" to return line)
1шт.
9
153603A1
ADAPTER
- straight
1шт.
11
159022A1
ELBOW
- 90 degree, special
1шт.
12
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ADAPTER - straight, Includes: Ref. 13
1шт.
13
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
14
152604A1
HOSE,63.00 mm ID x 1600.00 mm
(Pilot line between manifold port "T7" and swing brake release valve port "T") 63.00 mm ID x 1600.00 mm
1шт.
15
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
- 90 degree, Includes: Ref. 16
1шт.
16
154467A1
O-RING,10.8mm ID x 2.4mm Width
- elbow
1шт.
17
150933A1
ELBOW
- 45 degree, Includes: Ref. 18
1шт.
18
154467A1
O-RING,10.8mm ID x 2.4mm Width
- elbow
1шт.
19
151904A1
HOSE,6.3mm ID x 3100mm L
(Pilot line between swing brake release valve port "P" and check valve port "C2") 63.00 mm ID x 3100.00 mm
1шт.
20
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ADAPTER - straight, Includes: Ref. 21
1шт.
21
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
22
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 23
1шт.
23
154475A1
O-RING
- adapter
1шт.
24
157967A1
HOSE
- 2200 mm (86-5/8 inch) long (line from manifold port "T1" to drain manifold port "T1")
1шт.
25
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 26
1шт.
26
154475A1
O-RING
- adapter
1шт.
Выбрано товаров: 26
