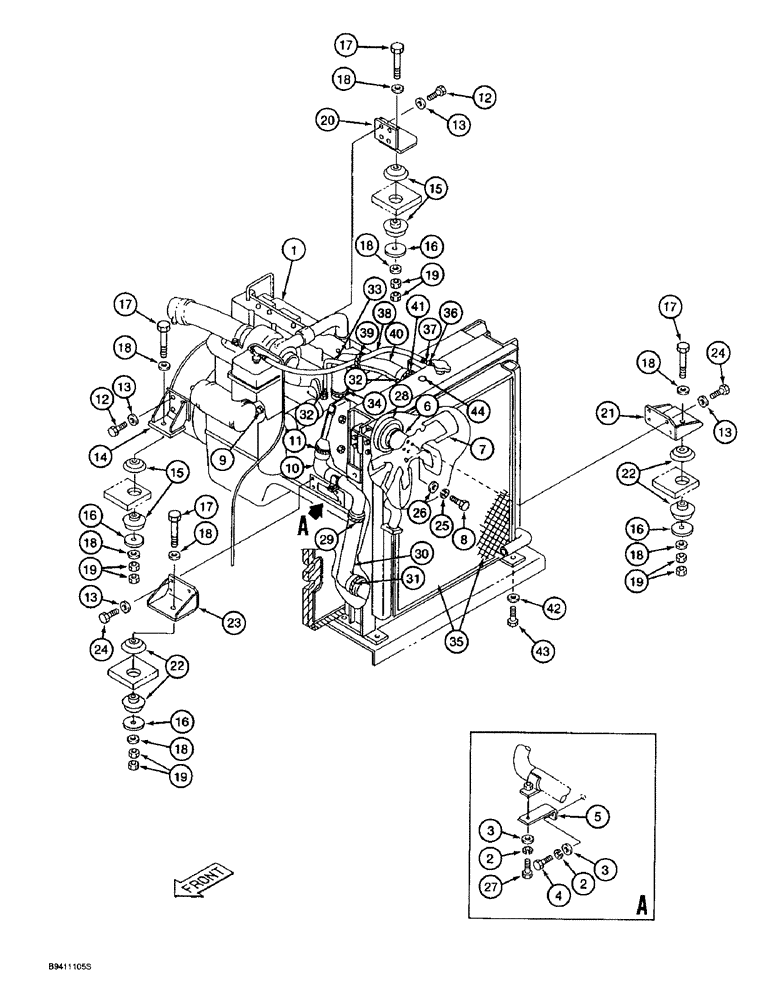

Запчасти Case 9040B (2-04) - ENGINE MOUNTING, RADIATOR AND ADAPTING PARTS, P.I.N. DAC04#2001 AND AFTER (02) - ENGINE

1

REF

INSTRUCTION

ENGINE ASSEMBLY - see parts list figures 2-18 thru 2-98 and 3-12 thru 3-30

1шт.

2

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

4

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

1шт.

5

158106A1

BRACKET

- support, water pipe

1шт.

6

A189227

SPACER

- fan

1шт.

7

1547933C1

FAN

- puller, 650 mm O.D.

1шт.

8

152870A1

BOLT,High Strength, Hex, M10 x 130mm

BOLT - hex, special

4шт.

9

153493A1

BUSHING

- reducer

1шт.

10

164268A1

PIPE

- radiator, water

1шт.

11

157287A1

COLLAR

CLAMP - adjustable, replaces 150890A1, clamp

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

8шт.

13

150811A1

WASHER

- flat, special, 12 mm

16шт.

14

160373A1

SUPPORT

BRACKET - engine mounting, right-hand, front

1шт.

15

151304A1

INSULATOR BLOCK

ISOLATOR - rubber, engine mounting, right-hand, front

4шт.

16

150874A1

WASHER

- special

4шт.

17

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

- hex, 20 - 2.5 x 130 mm, class 10.9

4шт.

18

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

8шт.

19

829-1420

NUT,M20, Cl 10

8шт.

20

160374A1

ENGINE MOUNT

BRACKET - engine mounting, right-hand, rear

1шт.

21

160375A1

ENGINE MOUNT

BRACKET - engine mounting, left-hand, rear

1шт.

22

151309A1

SUSPENSION BLOCK

INSULATOR - rubber, engine mounting, left-hand

4шт.

23

160376A1

ENGINE MOUNT

BRACKET - engine mounting, left-hand, front

1шт.

24

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

8шт.

25

892-11010

LOCK WASHER,M10

4шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

1шт.

28

A189155

PULLEY

- compressor drive, behind fan spacer

1шт.

29

157287A1

COLLAR

CLAMP - adjustable, replaces 150890A1, clamp

1шт.

30

163742A1

RADIATOR HOSE,49.80 mm ID, 74.00 mm ID x 334.50 mm

49.80 mm ID, 74.00 mm ID x 334.50 mm

1шт.

31

150902A1

COLLAR

CLAMP - adjustable

1шт.

32

157705A1

CLAMP

- wire-type, adjustable, coolant filter water line

2шт.

33

165067A1

HOSE,9.50 mm ID x 570.00 mm

Rubber, Special, Coolant Filter 9.50 mm ID x 570.00 mm

1шт.

34

152796A1

COLLAR

CLAMP - adjustable, upper radiator hose, replaces 150893A1

1шт.

35

NSS

NOT SOLD SEPARAT

RADIATOR ASSEMBLY - water and hydraulic oil cooling, see parts list figure 2-16

1шт.

36

153042A1

CLAMP

- adjustable, coolant overflow hose

1шт.

37

150487A1

HOSE

- 1200 mm (47-1/4 inch) long, coolant overflow

1шт.

38

150774A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 1000 mm (39-3/8 inch) long

1шт.

39

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

40

164267A1

RADIATOR HOSE

Upper

1шт.

41

150736A1

COLLAR

CLAMP - upper radiator hose, replaces 157918A1

1шт.

42

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

43

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

Radiator attaching Hex, M16 x 40, 10.9

4шт.

44

151885A1

DECAL

LABEL - coolant

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.
