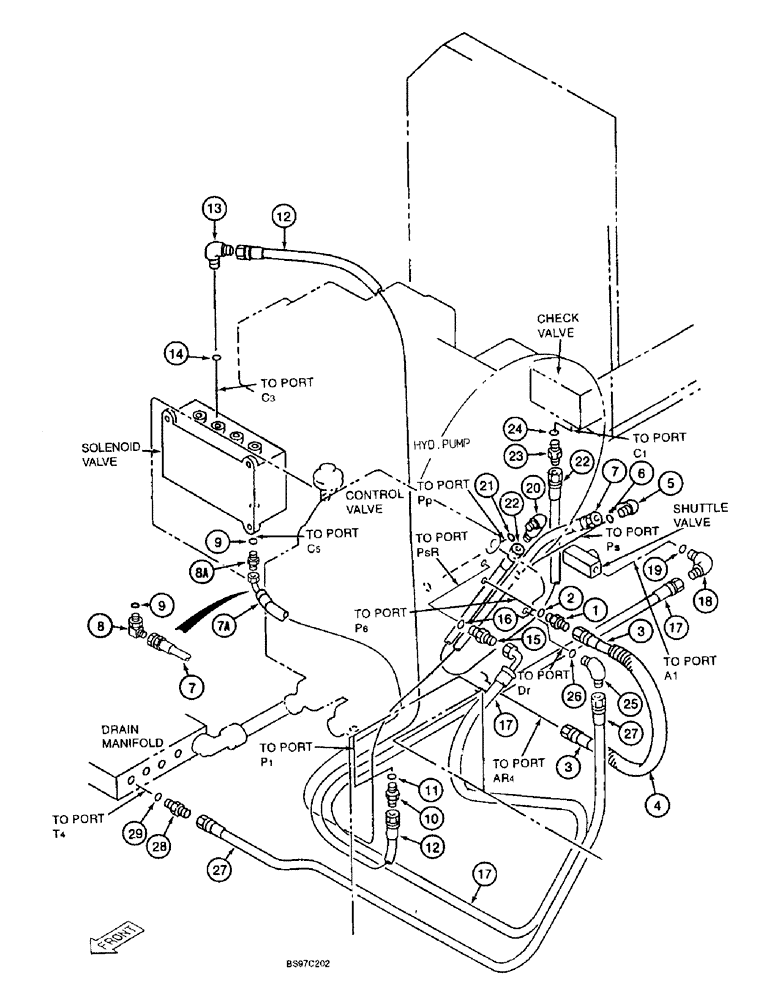

Запчасти Case 9040B (8-054) - CONTROL VALVE PILOT LINES (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159021A1

HYDRAULIC HOSE,6.30 mm ID x 400.00 mm

(Transfer line between control valve ports "P6" and "AR4") 6.30 mm ID x 400.00 mm

1шт.

4

150768A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 300 mm Length

SLEEVE - corrugated, 300 mm (11-13/16 inch) long

1шт.

5

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

7

152704A1

HOSE

- 1800 mm (71 inch) long, Pilot line between control valve port "PS" and solenoid valve port "C5", Serial Range: -DAC04#2001

1шт.

7a

161485A1

HOSE ASSY.

HOSE - 1850 mm (72-13/16 inch) long, pilot line between control valve port "PS" and solenoid valve port "C5", Start Serial: DAC04#2001

1шт.

8

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Serial Range: -DAC04#2001

1шт.

8a

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 9, Start Serial: DAC04#2001

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow or adapter

1шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

12

152773A1

HOSE ASSY.

HOSE - 1850 mm (72-13/16 inch) long, pilot line between control valve port "P1" and solenoid valve port "C3", Standard models, Serial Range: -DAC04#2001

1шт.

12

159004A1

HOSE

- 2150 mm (84-5/8 inch) long, pilot line between control valve port "P1" and solenoid valve port "C3", Long Reach models, Serial Range: -DAC04#2001

1шт.

12

159007A1

HOSE

- 2300 mm (90-9/16 inch) long, pilot line between control valve port "P1" and solenoid valve port "C3", Start Serial: DAC04#2001

1шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

17

159020A1

HOSE

- 2450 mm (96-7/16 inch) long (pilot line between control valve port "PsR" and shuttle valve)

1шт.

18

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

20

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

22

159004A1

HOSE

- 2150 mm (84-5/8 inch) long (pilot line between control valve port "Pp" and check valve port " C1")

1шт.

23

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

25

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

27

162251A1

HOSE

- 1300 mm (51-3/16 inch) long (Pilot line from control valve port "Dr" to drain manifold port "T4" )

1шт.

28

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.
