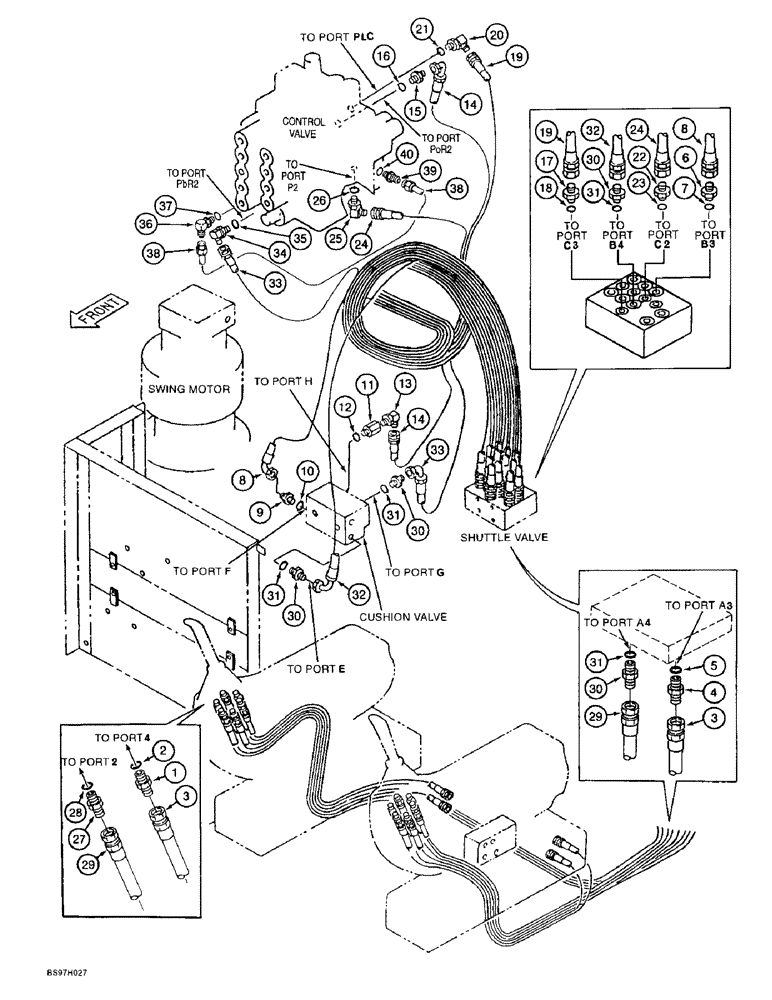

Запчасти Case 9040B (8-030) - BOOM CONTROL LINES (08) - HYDRAULICS

1

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159211A1

HYDRAULIC HOSE

HOSE - 2000 mm (78-3/4 inch) long, boom-up control line, right hand console to shuttle valve (controller port " 4" to shuttle valve port "A3")

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154475A1

O-RING

- adapter

1шт.

8

159223A1

HOSE ASSY.

HOSE - 1100 mm (44-3/16 inch) long, boom-up control line (shuttle valve port "B3" to cushion valve port "F")

1шт.

9

160074A1

PLUG

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154486A1

O-RING

- adapter

1шт.

11

159226A1

ADAPTER

- straight, Includes: Ref. 12

1шт.

12

154475A1

O-RING

- adapter

1шт.

13

153526A1

ELBOW

- 90 degree, special

1шт.

14

159228A1

HOSE ASSY.

HOSE - 1750 mm (68-7/8 inch) long, boom-up control line (cushion valve port "4" to control valve port " PoR2")

1шт.

15

152747A1

ADAPTER

- straight, Includes: Ref. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

17

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

19

152270A1

HOSE,6.3mm ID x 2600mm L

Boom-up/down control line (Shuttle valve port "C3" to control valve port "PLC") 63.00 mm ID x 2600.00 mm

1шт.

20

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

22

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 23

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

24

152270A1

HOSE,6.3mm ID x 2600mm L

Boom-up control line (Shuttle valve port "C2" to control valve port "P2") 63.00 mm ID x 2600.00 mm

1шт.

25

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

27

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, Includes: Ref. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

29

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

- Boom-down control line (RH controller port "2" to shuttle valve port "A4") 9.50 mm ID x 2100.00 mm

1шт.

30

160074A1

PLUG

ADAPTER - straight, Includes: Ref. 31

4шт.

31

154486A1

O-RING

- adapter

1шт.

32

159224A1

HOSE ASSY.

HOSE - 900 mm (35-7/16 inch) long, boom-down control line (shuttle valve port "B4" to cushion valve port "E")

1шт.

33

159229A1

HOSE ASSY.

HOSE - 1650 mm (65 inch) long, boom-down control line (cushion valve port "G" to control valve port " PbR2")

1шт.

34

153559A1

ELBOW

- 90 degree, Includes: Ref. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

36

159241A1

ELBOW

- 90 degree, Includes: Ref. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

38

159240A1

HYD TUBE

TUBE - hydraulic

1шт.

39

151693A1

MULTIPOLE CONNECTOR

ADAPTER - straight, Includes: Ref. 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.
