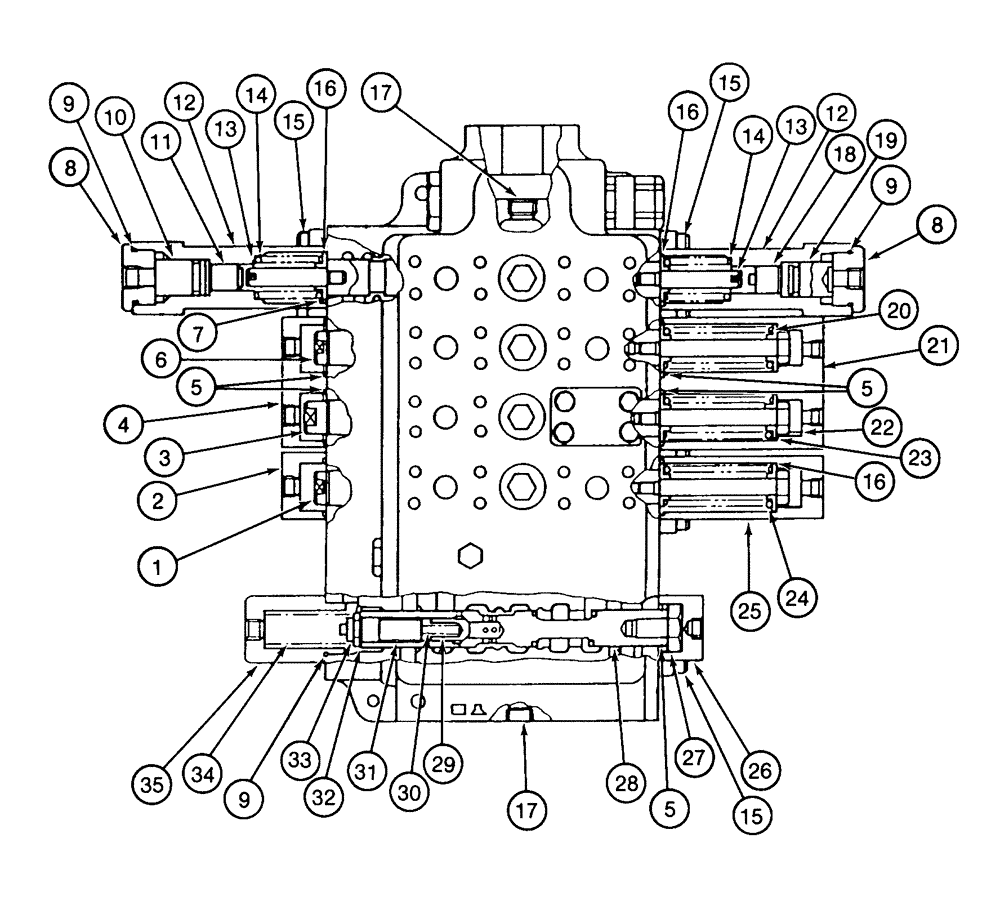

Запчасти Case 9040 (8-74) - 153354A1 LEFT-HAND CONTROL VALVE ASSEMBLY, SPOOLS AND RELATED PARTS, NOT USED ON LONG REACH MODELS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
153354A1
CONTROL
VALVE ASSEMBLY - hydraulic control, left-hand, 4-spool, parts list figures 8-74 and 8-76, see figure 8-08 for valve mounting, Includes: Ref. 1 - 35
1шт.
1
NSS
NOT SOLD SEPARAT
SPOOL - travel
1шт.
2
156247A1
CAP
COVER - spool end
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL - boom
1шт.
4
156249A1
CAP
COVER - spool end
1шт.
5
155173A1
O-RING
- seal, spool cover
9шт.
Part of Contol Valve Seal Kit P/N 155988A1
1шт.
6
NSS
NOT SOLD SEPARAT
SPOOL - swing
1шт.
7
NSS
NOT SOLD SEPARAT
SPOOL - arm
1шт.
8
155444A1
PLUG
- spool end
2шт.
9
153860A1
O-RING
- spool end plug
3шт.
Part of Contol Valve Seal Kit P/N 155988A1
1шт.
10
155907A1
PISTON
- valve
1шт.
11
155906A1
PISTON
SHUTTLE - valve spool
1шт.
12
156250A1
CAP
HOUSING - piston and shuttle
2шт.
13
156251A1
END
ROD - spool end
2шт.
14
156058A1
SPRING
- piston return
2шт.
15
156163A1
BOLT (MACHINE),Hex Skt
BOLT - hex socket, special
18шт.
16
156019A1
SPRING SEAT
SEAT - spring
8шт.
17
151033A1
PLUG
- hex socket, special, port
2шт.
18
155927A1
PISTON
SHUTTLE - valve spool
1шт.
19
155926A1
PISTON
- control valve
1шт.
20
156059A1
SPRING
- spool return
1шт.
21
156283A1
CAP
COVER - spool, spring end
1шт.
22
156243A1
CAP
RETAINER - spring
3шт.
23
156057A1
SPRING
- valve
1шт.
24
156018A1
SPRING
- spool return
1шт.
25
156284A1
CAP
COVER - spool, spring end
1шт.
26
156252A1
CAP
COVER - spool end, selector
1шт.
27
155442A1
PLUG
- spool end
1шт.
28
NSS
NOT SOLD SEPARAT
SPOOL - selector
1шт.
29
155904A1
VALVE POPPET
POPPET - spool
1шт.
30
156015A1
SPRING
- poppet
1шт.
31
155574A1
SPACER
- selector spool
1шт.
32
153884A1
O-RING
- plug
1шт.
Part of Contol Valve Seal Kit P/N 155988A1
1шт.
33
155443A1
PLUG
- spool end
1шт.
34
156054A1
SPRING
- spool return
1шт.
35
156248A1
CAP
RETAINER - spring
1шт.
155988A1
SEAL KIT
- seal, control valve, Includes: Ref. 5, 9 and 32 this figure and 4, 10, 22, 26 and 27 on Figure 08-76
1шт.
Выбрано товаров: 40
