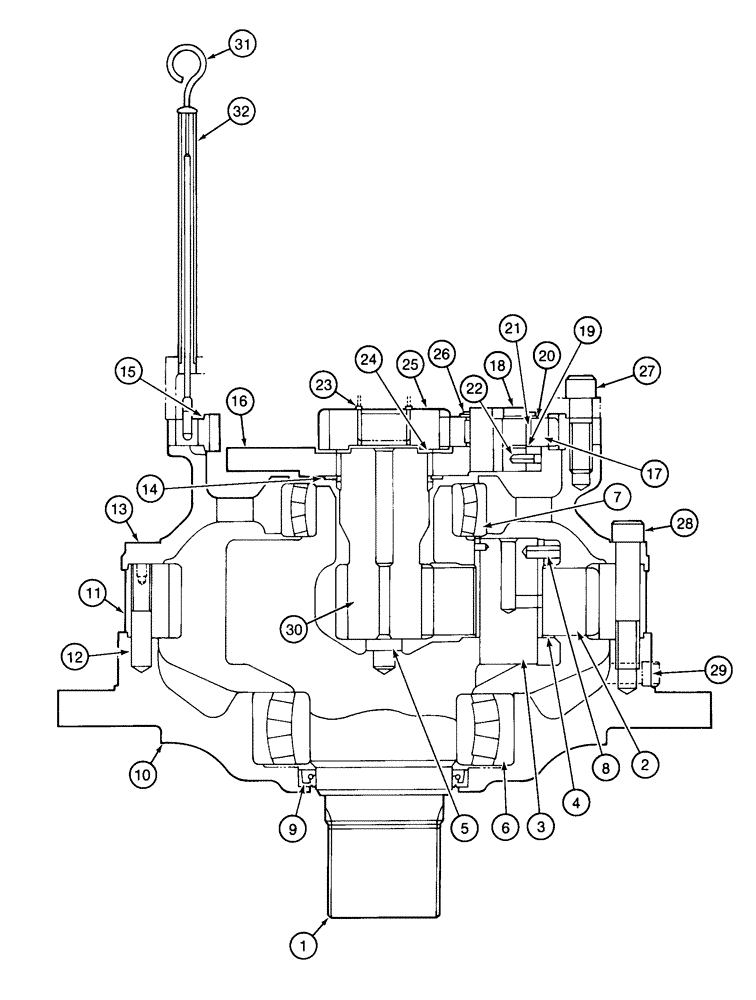

Запчасти Case 9040 (8-72) - 157205A1 SWING REDUCTION GEAR ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
157205A1
MOTO-REDUCTION GEAR
GEAR ASSEMBLY - reduction, swing, Includes: Ref. 1 - 32
1шт.
157206A1
SHAFT
AND CARRIER ASSEMBLY - planetary, secondary, Includes: Ref. 1 - 8
1шт.
1
157207A1
DRIVE SHAFT
SHAFT - drive
1шт.
2
157208A1
GEAR
- planetary, secondary
3шт.
3
155593A1
PIN
- planetary gear
3шт.
4
155374A1
THRUST WASHER
- thrust
6шт.
5
155373A1
PLATE
- thrust
1шт.
6
156123A1
BEARING, ROLLER,130 mm ID x 230 mm OD x 64 mm
BEARING - roller
1шт.
7
156124A1
BEARING, ROLLER,120 mm ID x 180 mm OD x 46 mm
BEARING - roller
1шт.
8
738-1820
LOCK PIN,M8 x 20, Slotted
PIN - roll, 8 x 20 mm
3шт.
9
153922A1
OIL SEAL
SEAL - lip, shaft, oil
1шт.
157209A1
HOUSING ASSY.
HOUSING ASSEMBLY - gear, shaft end, Includes: Ref. 10 - 12
1шт.
10
156303A1
HOUSING
- gear
1шт.
11
157210A1
GEAR
- ring, secondary
1шт.
12
155592A1
PIN
- dowel
4шт.
13
157211A1
HOUSING
- center
1шт.
14
800-1185
SNAP RING,M85, Ext
RING - external retaining, No. 85
1шт.
15
157212A1
GEAR
- ring, primary
1шт.
157213A1
CARRIER
ASSEMBLY - planetary, primary, Includes: Ref. 16 - 22
1шт.
16
157214A1
CARRIER
- planetary
1шт.
17
157215A1
GEAR
- planetary, primary
3шт.
18
155672A1
PIN
SHAFT - planetary gear
3шт.
19
156310A1
PLATE
RING - thrust
3шт.
20
156309A1
PLATE
RING - thrust
3шт.
21
156507A1
NEEDLE BEARING
BEARING - needle
3шт.
22
738-5820
LOCK PIN,M8 x 20, Slotted
PIN - roll, 8 x 20 mm
3шт.
23
800-1145
SNAP RING,M45, Ext
Retaining M45, Ext
1шт.
24
156308A1
PLATE
- side
1шт.
25
157217A1
GEAR
- sun, primary
1шт.
26
800-1150
SNAP RING,M50, Ext
RING - external retaining, No. 50
3шт.
27
157218A1
BOLT,Hex Skt
- hex socket, special
12шт.
28
157219A1
BOLT,Hex Skt
- hex socket, special
16шт.
29
155497A1
PLUG
- port, housing side
1шт.
30
157220A1
GEAR
- sun, secondary
1шт.
31
155671A1
DIPSTICK
- oil lube
1шт.
32
155488A1
PIPE
TUBE - dipstick
1шт.
Выбрано товаров: 36
