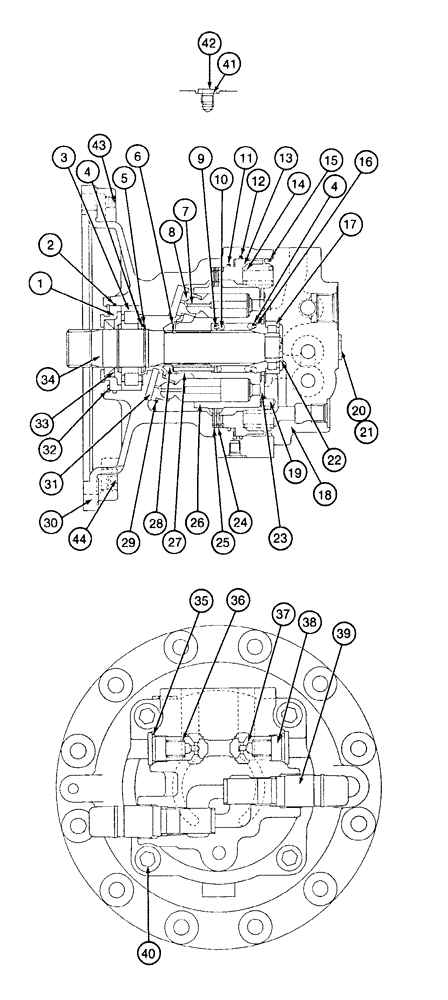

Запчасти Case 9040 (8-70) - 158042A1 SWING MOTOR ASSEMBLY (08) - HYDRAULICS

158042A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, Includes: Ref. 1 - 44

1шт.

1

156342A1

COVER

RETAINER - shaft seal, front

1шт.

2

154721A1

O-RING,99.4mm ID x 3.1mm Width

- cover

1шт.

3

156147A1

ROLLER BEARING,45 mm ID x 100 mm OD x 25 mm

- roller

1шт.

4

155669A1

SPACER

- bearing

3шт.

5

800-1145

SNAP RING,M45, Ext

Retaining M45, Ext

2шт.

6

155667A1

SPACER

SEAT - push rod

1шт.

155810A1

PISTON

ASSEMBLY - swing motor, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - swing motor

9шт.

8

NSS

NOT SOLD SEPARAT

SHOE - piston

9шт.

9

155666A1

SPACER

SEAT - spring

1шт.

10

156098A1

SPRING

- compression, cylinder

1шт.

11

155214A1

O-RING

- seal

1шт.

12

155216A1

O-RING

- seal

1шт.

13

155954A1

PISTON

- brake

1шт.

14

156085A1

SPRING

- brake

10шт.

15

155184A1

O-RING

- seal

1шт.

16

800-2158

SNAP RING,M58, Int

RING - internal retaining, No. 58

1шт.

17

156140A1

BEARING, ROLLER,25 mm ID x 62 mm OD x 17 mm

BEARING - roller

1шт.

155811A1

VALVE

HOUSING ASSEMBLY - valve, Includes: Ref. 18 and 19

1шт.

18

156343A1

VALVE

HOUSING - valve

1шт.

19

155661A1

PIN

- roll

2шт.

20

155496A1

PLUG

- port

2шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

- port plug

2шт.

22

800-1125

SNAP RING,M25, Ext

RING - external retaining, No. 25

1шт.

23

158043A1

PLATE

- valve

1шт.

24

156340A1

PLATE

- separator

2шт.

25

156341A1

PLATE

- friction

2шт.

26

156346A1

CYLINDER

BLOCK - cylinder, swing motor

1шт.

27

155668A1

PUSH ROD

ROD - push

12шт.

28

155396A1

RETAINER

BUSHING - spherical, plate

1шт.

29

156345A1

PLATE

- piston retaining

1шт.

30

158044A1

HOUSING

- swing motor

1шт.

31

156344A1

PLATE

- swash, shoe

1шт.

32

800-21100

SNAP RING,Int, M100 x 3

RING, SNAP, Int, M100 x 3

1шт.

33

153925A1

OIL SEAL

SEAL - oil

1шт.

34

155366A1

DRIVE SHAFT

SHAFT - drive

1шт.

35

154519A1

O-RING

- seal

2шт.

36

156072A1

SPRING

- compression

2шт.

37

155942A1

PLUNGER

- check valve

2шт.

38

155475A1

PLUG

- port, retaining

2шт.

39

158045A1

VALVE, PRESSURE RELI

VALVE - relief

2шт.

40

861-20045

HEX SOC SCREW,M20 x 45mm, Cl 12.9

BOLT - hex socket, 10 - 2.5 x 45 mm, class 12.9

4шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

- seal

1шт.

42

155496A1

PLUG

- port

1шт.

43

155505A1

PLUG

- port

1шт.

44

151035A1

PLUG

- pipe, port

1шт.
