Запчасти Case 9040 (8-68) - SWING MOTOR AND MOUNTING (08) - HYDRAULICS

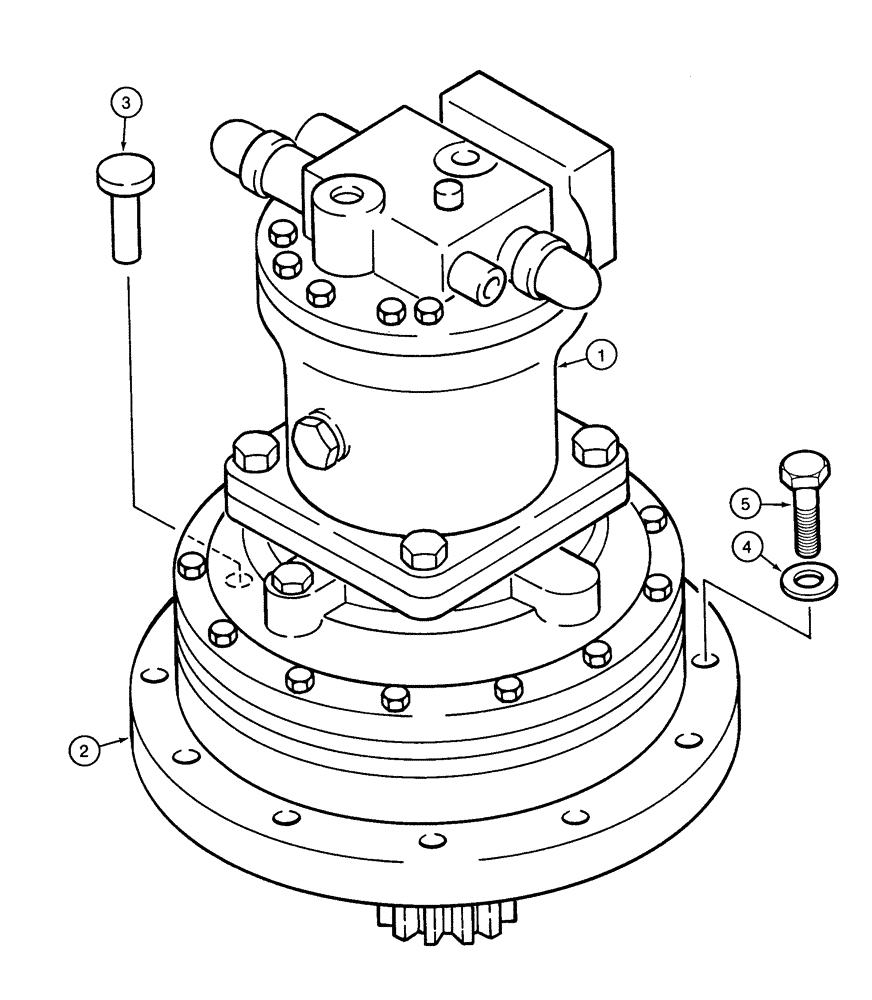

Схема запчастей Case 9040 - (8-68) - SWING MOTOR AND MOUNTING (08) - HYDRAULICS
1
4
2
5
3

Артикул

Название

Примечание

Количество

150326A1

MOTOR

ASSEMBLY - swing, with reduction gear, Includes: Ref. 1 and 2

1шт.

1

158042A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, parts list Figure 8-70

1шт.

2

157205A1

MOTO-REDUCTION GEAR

GEAR ASSEMBLY - reduction, swing motor, parts list Figure 8-72

1шт.

3

150079A1

PIN

- alignment, headed

1шт.

4

150996A1

WASHER

- special

12шт.

5

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

- hex, 20 - 2.5 x 70 mm, class 10.9

12шт.

Выбрано товаров: 6
