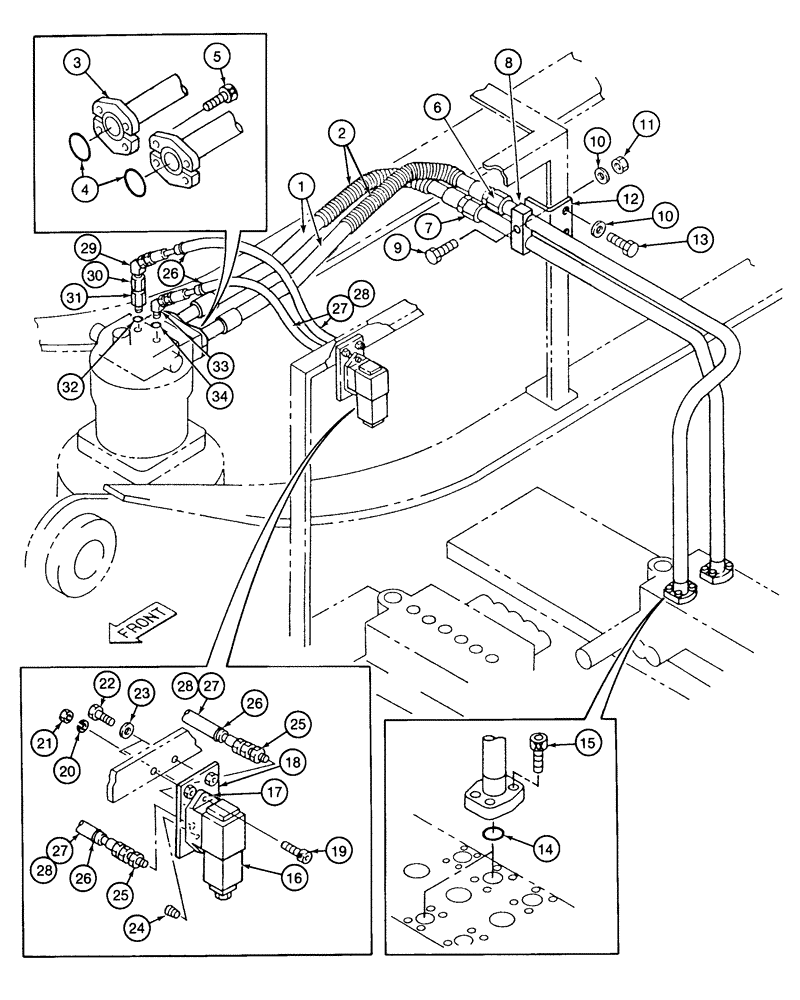

Запчасти Case 9040 (8-64) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

156928A1

HOSE ASSY.

HOSE - 38-9/16 inch (980 mm) long, at swing motor

2шт.

2

156929A1

GUARD

SLEEVE - hose guard

2шт.

3

153458A1

FLANGE

- split, at swing motor

4шт.

4

153628A1

O-RING

- hose, at swing motor

2шт.

5

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

8шт.

6

156930A1

TUBE

- left-hand control valve to swing motor hose

1шт.

7

156931A1

TUBE,846, 463 mm Length

- left-hand control valve to swing motor hose

1шт.

8

150485A1

SPECIAL CLAMP

CLAMP - tube, double, 30 mm

1шт.

9

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

10

150988A1

WASHER

- flat, special, 12 mm

3шт.

11

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

12

153285A1

BRACKET

- mounting

1шт.

13

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

2шт.

14

154529A1

O-RING

- at control valve

2шт.

15

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 X 35 mm, class 12.9

8шт.

16

153470A1

VALVE

ASSEMBLY - solenoid, swing motor line, parts list page 8-67

1шт.

17

150589A1

PLATE

- adapter, solenoid, Serial Range: valve-hoses

1шт.

18

153384A1

BRACKET

- mounting

1шт.

19

861-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 25 mm, class 12.9

2шт.

20

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

21

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

2шт.

22

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

23

150811A1

WASHER

- flat, special, 12 mm

2шт.

24

151026A1

PLUG

- port, solenoid

1шт.

25

153603A1

ADAPTER

- straight, hydraulic

2шт.

26

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

4шт.

27

156934A1

HOSE ASSY.

HOSE - 86-5/8 inch (2200 mm) long, to swing motor

2шт.

28

150390A1

TUBE,13 mm ID, 17.5 mm OD, 400 mm Length

SLEEVE - corrugated

2шт.

29

153599A1

ADAPTER

ELBOW - 45 degree, at swing motor

1шт.

30

153341A1

ORIFICE

- flow restrictor

1шт.

31

153412A1

SOCKET

ADAPTER - straight, 1/4 PT x 7/16-20 inch O-ring boss, Includes: Ref. 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

- reducer bushing

1шт.

33

150933A1

ELBOW

- 45 degree, hydraulic, Includes: Ref. 34

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.
