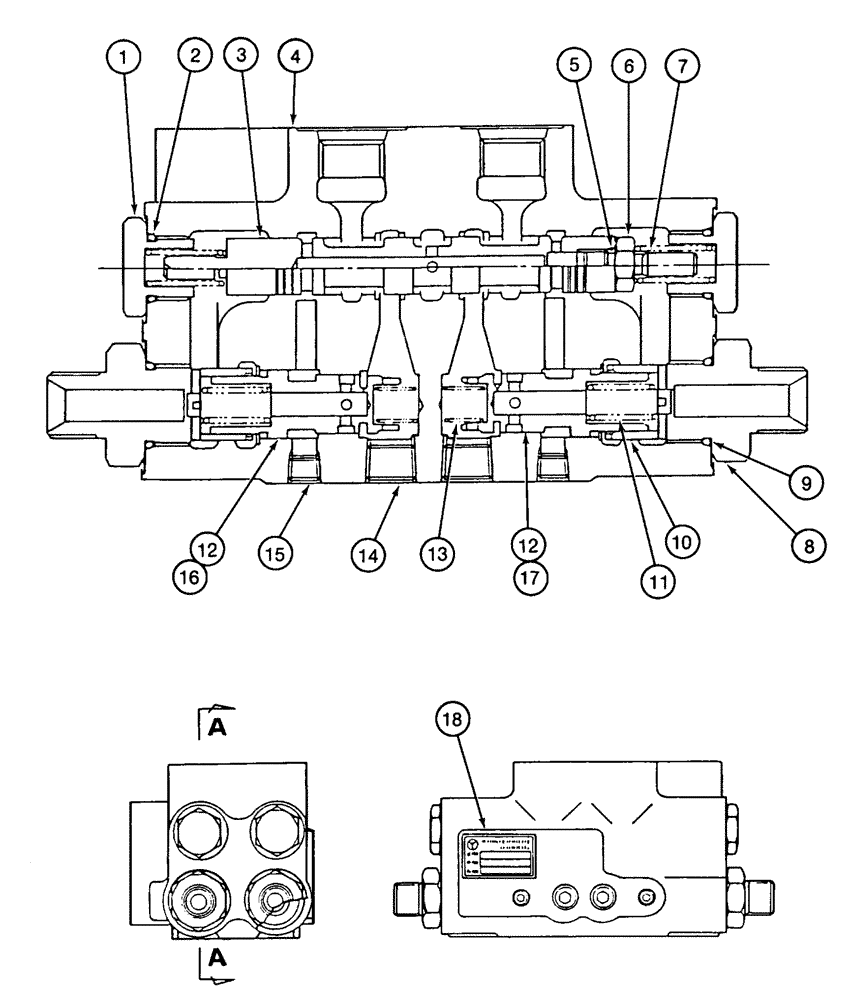

Запчасти Case 9040 (8-56) - 153406A1 CUSHION VALVE ASSEMBLY (08) - HYDRAULICS

153406A1

VALVE, CUSHION

VALVE - cushion, Includes: Ref. 1 - 18

1шт.

1

153539A1

PLUG

- spool end

4шт.

2

154474A1

O-RING

- plug

4шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

154446A1

O-RING

- spool

2шт.

6

153537A1

SCREW

GUIDE - spring, spool end

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING - spool return

4шт.

8

153548A1

PLUG

- secondary spool retaining

4шт.

9

154486A1

O-RING

- plug

4шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - secondary spool

4шт.

11

NSS

NOT SOLD SEPARAT

SPRING - secondary spool, outer

4шт.

12

NSS

NOT SOLD SEPARAT

SPOOL - secondary, arm cushioning

2шт.

13

NSS

NOT SOLD SEPARAT

SPRING - secondary spool, inner

4шт.

14

151026A1

PLUG

- port, large

8шт.

15

151229A1

PLUG

- hex socket, small

11шт.

16

NSS

NOT SOLD SEPARAT

SPOOL - secondary, boom cushioning

1шт.

17

NSS

NOT SOLD SEPARAT

SPOOL - secondary, boom cushioning

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - identification

1шт.
