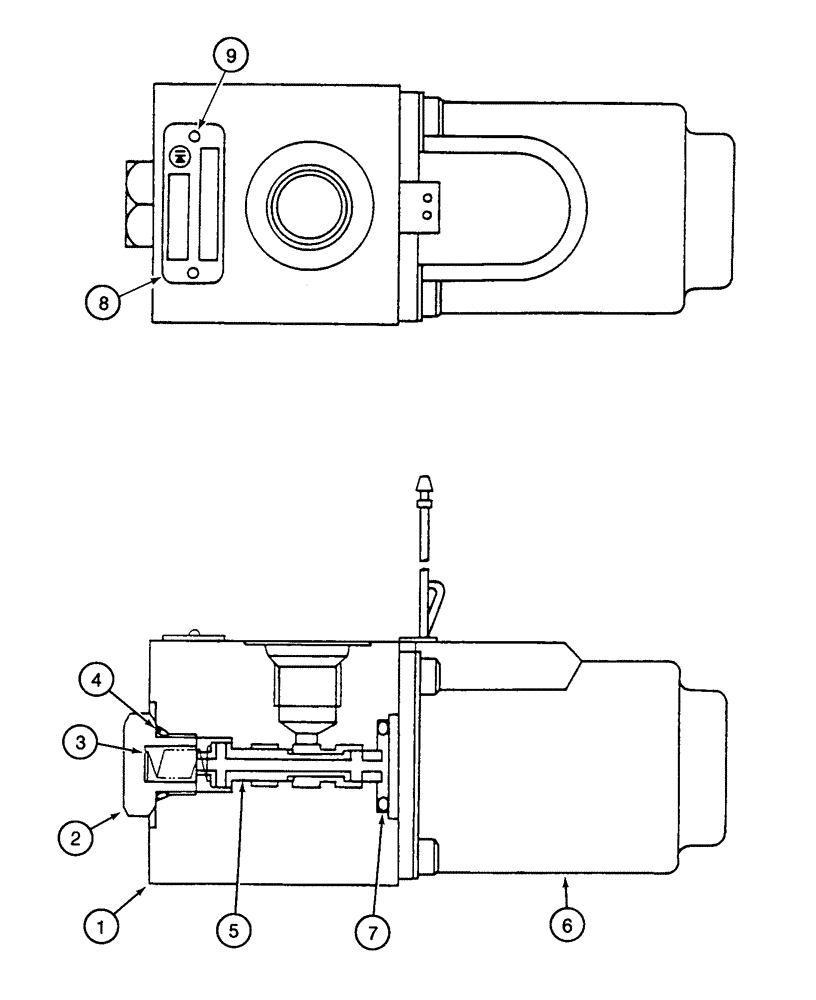

Запчасти Case 9040 (8-54) - 150844A1 SOLENOID VALVE (08) - HYDRAULICS

150844A1

VALVE

ASSEMBLY - solenoid, 2-speed travel, swing brake release or cushion shutoff, Includes: Ref. 1 - 9

3шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

155456A1

PLUG

- port, spool retaining

1шт.

3

156048A1

SPRING

- compression, spool return

1шт.

4

154463A1

O-RING

- plug, seal

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

6

165145A1

SOLENOID VALVE

SOLENOID - valve (replaces 163894A1)

1шт.

7

154475A1

O-RING

- solenoid, seal

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

9

NSS

NOT SOLD SEPARAT

RIVET - name plate mounting

2шт.
