Запчасти Case 9040 (8-52) - 150425A1 CONTROL SHUTOFF SOLENOID VALVE (08) - HYDRAULICS

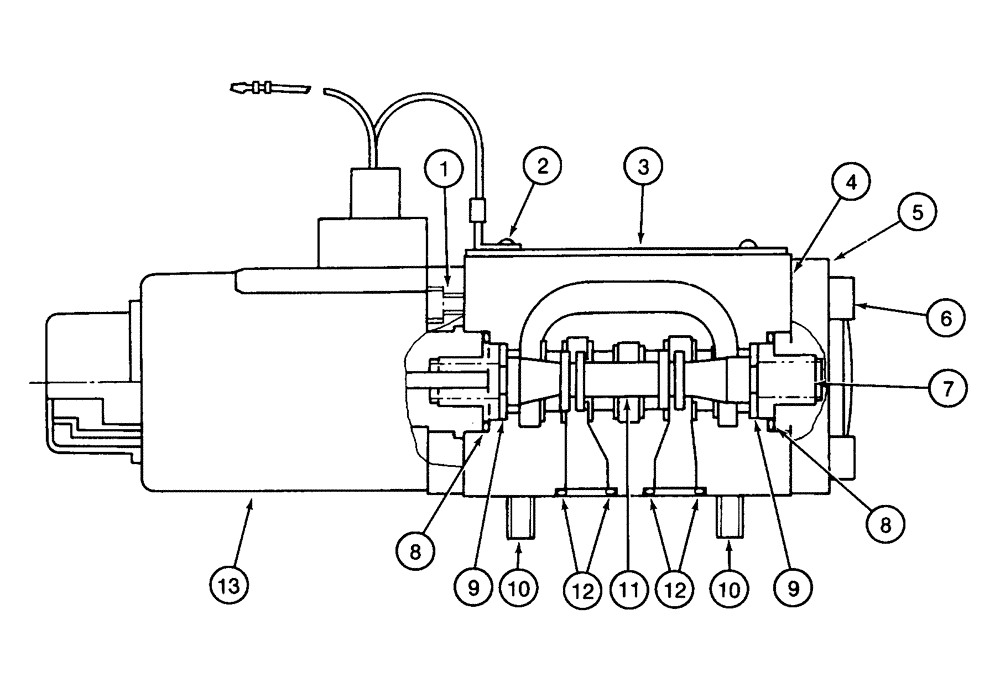

Схема запчастей Case 9040 - (8-52) - 150425A1 CONTROL SHUTOFF SOLENOID VALVE (08) - HYDRAULICS
8
11
12
10
1
12
4
13
10
3
7
2
5
8
9
6
9

Артикул

Название

Примечание

Количество

150425A1

VALVE

ASSEMBLY - solenoid, control shutoff, Includes: Ref. 1 - 13

1шт.

1

156174A1

BOLT

BOLT - hex socket, solenoid to spool housing

4шт.

2

156176A1

SCREW

- name plate mounting

2шт.

3

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - spool

1шт.

5

156279A1

COVER

- valve, closed end

1шт.

6

156175A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, cover mounting

4шт.

7

156044A1

SPRING

- valve, spool end

2шт.

8

155205A1

O-RING

- spring retainer

2шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - spring

2шт.

10

150125A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, special

4шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

12

155185A1

O-RING

- port seal

4шт.

13

165374A1

SOLENOID

- valve

1шт.

Выбрано товаров: 14
