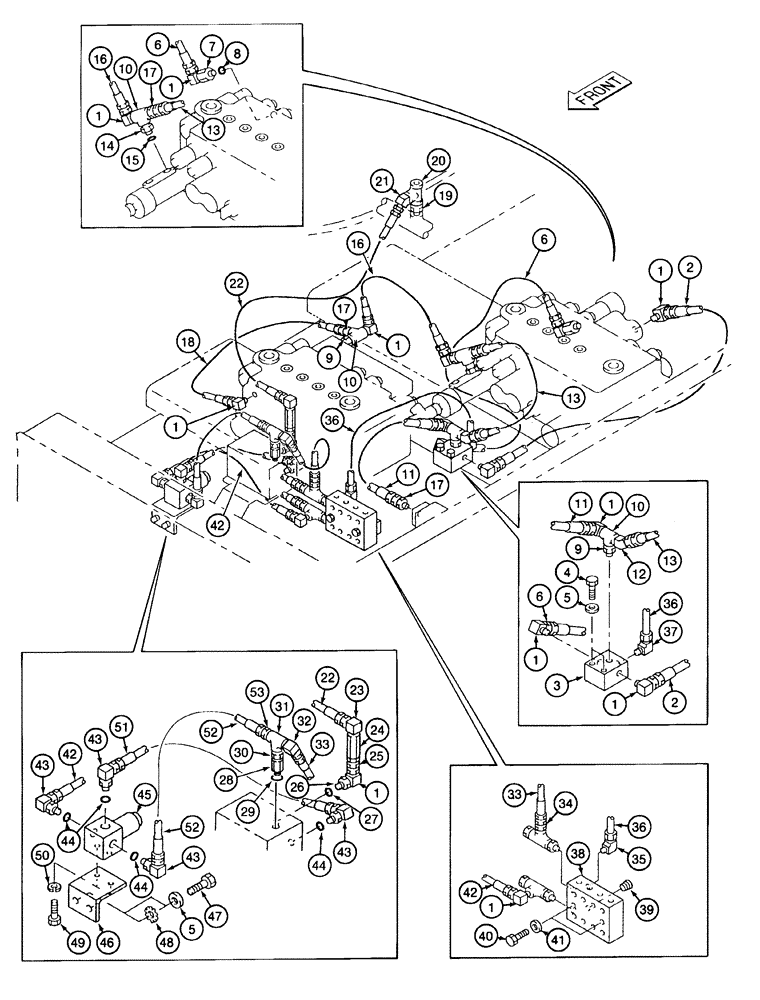

Запчасти Case 9040 (8-48) - HYDRAULIC CONTROL CIRCUIT, CONTROL VALVE PILOT LINES TO, CUSHION VALVES AND MANIFOLDS (08) - HYDRAULICS

1

153596A1

ADAPTER

ELBOW - 90 degree, hydraulic

10шт.

2

152517A1

HOSE,63mm ID x 1100mm L

- LH control valve to manifold 63.00 mm ID x 1100.00 mm

1шт.

3

152610A1

MANIFOLD

- hydraulic

1шт.

4

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

- hex, 10 - 1.5 x 60 mm, class 10.9

2шт.

5

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

6

152512A1

HOSE ASSY.

HOSE - 27-9/16 inch (700 mm) long, manifold to left-hand control valve

1шт.

7

152309A1

SOCKET

REDUCER - special, Includes: Ref. 8

1шт.

8

154475A1

O-RING

- reducer

1шт.

9

150847A1

HYD CONNECTOR

CONNECTOR - straight

2шт.

10

152135A1

TEE

- hydraulic

3шт.

11

151862A1

HOSE,63.00 mm ID x 400.00 mm

- At tee on manifold 63.00 mm ID x 400.00 mm

1шт.

12

153599A1

ADAPTER

ELBOW - 45 degree, at tee on manifold

1шт.

13

152276A1

HOSE,63mm ID x 550mm L

Manifold to LH control valve 63.00 mm ID x 550.00 mm

1шт.

14

152636A1

ADAPTER

- straight, at left-hand control valve, Includes: Ref. 15

1шт.

15

154475A1

O-RING

- adapter

1шт.

16

151862A1

HOSE,63.00 mm ID x 400.00 mm

- LH control valve to RH valve 63.00 mm ID x 400.00 mm

1шт.

17

153603A1

ADAPTER

- straight, hydraulic

3шт.

18

151872A1

HOSE ASSY.

HOSE - 33-1/2 inch (850 mm) long, at tee on right-hand control valve

1шт.

19

152131A1

NIPPLE, LUBE

ADAPTER -, Serial Range: tee,-tube

1шт.

20

150702A1

TEE

- special

1шт.

21

153488A1

ADAPTER

ELBOW - 45 degree, hydraulic

1шт.

22

152763A1

HOSE ASSY.

HOSE - to attachment cushion valve

1шт.

23

152749A1

ADAPTER

ELBOW - 90 degree, to attachment cushion valve

1шт.

24

151552A1

FILTER

- hydraulic, in-line

1шт.

25

153601A1

ADAPTER

- straight, hydraulic

1шт.

26

153494A1

ORIFICE

REDUCER - special, with orifice, Includes: Ref. 27

1шт.

27

154475A1

O-RING

- bushing

1шт.

28

153413A1

SOCKET

REDUCER - special, Includes: Ref. 29

1шт.

29

154475A1

O-RING

- bushing

1шт.

30

150848A1

NIPPLE, LUBE

ADAPTER - straight

1шт.

31

152137A1

TEE

- at attachment cushion valve

1шт.

32

153488A1

ADAPTER

ELBOW - 45 degree, at tee on attachment cushion valve

1шт.

33

152612A1

HOSE,95.00 mm ID x 600.00 mm

- Attachment cushion valve to manifold 95.00 mm ID x 600.00 mm

1шт.

34

153597A1

ADAPTER

- straight, hydraulic

1шт.

35

153234A1

ELBOW

- special, 90 degree, at manifold

1шт.

36

153314A1

TUBE

- crossover, Serial Range: manifold-manifold

1шт.

37

151733A1

ELBOW

- 90 degree

1шт.

38

152457A1

MANIFOLD

- hydraulic, controller valve hoses

1шт.

39

151026A1

PLUG

- port, manifold

1шт.

40

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, 12 - 1.75 x 55 mm, class 10.9

2шт.

41

150988A1

WASHER

- flat, special, 12 mm

2шт.

42

152775A1

HOSE ASSY.

HOSE - 19-3/4 inch (500 mm) long, manifold to cushion shutoff solenoid

1шт.

43

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, hydraulic, Includes: Ref. 44

4шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

45

150844A1

VALVE

ASSEMBLY - solenoid, cushion shutoff parts list page 8-55

1шт.

46

153388A1

BRACKET

- mounting, solenoid valve

1шт.

48

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

2шт.

49

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

50

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

51

152793A1

HOSE ASSY.

HOSE - 17-3/4 inch (450 mm) long, cushion shutoff solenoid to attachment cushion valve

1шт.

52

152362A1

HOSE,530.00 mm

- Cushion shutoff solenoid to attachment cushion valve 530.00 mm

1шт.

53

152194A1

BUSHING

REDUCER - special

1шт.

47

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
