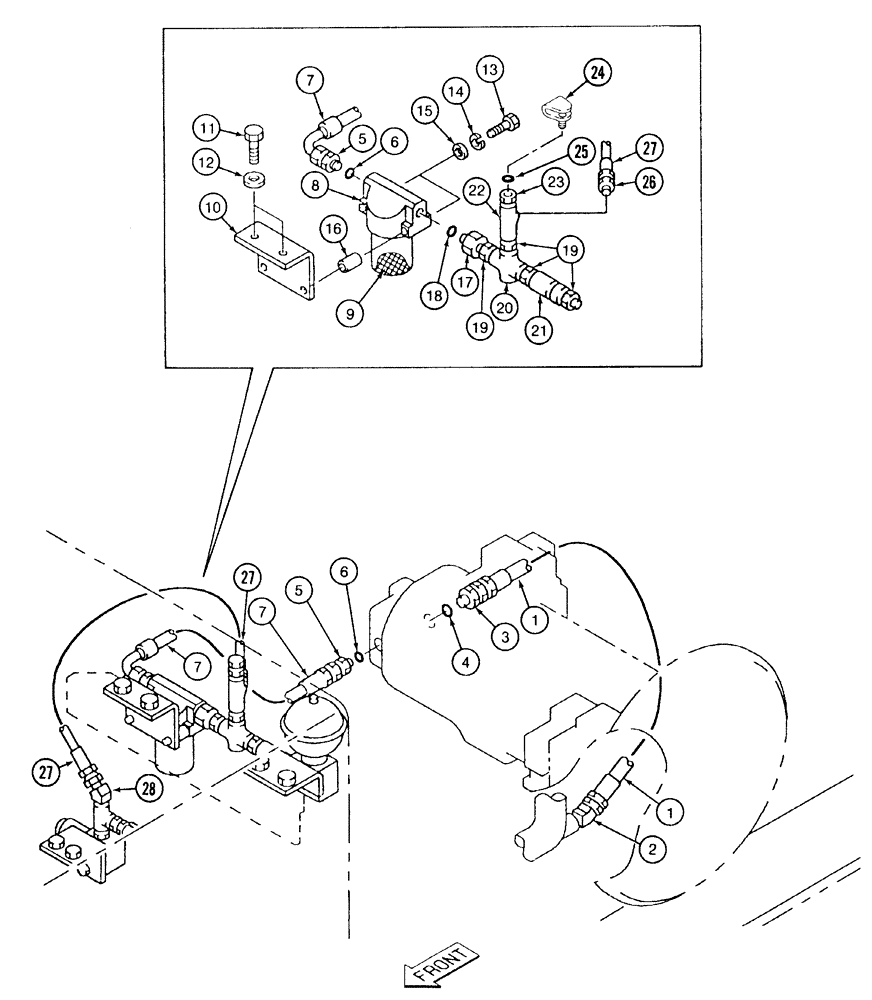

Запчасти Case 9040 (8-46) - HYDRAULIC CONTROL CIRCUIT, PUMP TO PILOT LINE FILTER (08) - HYDRAULICS

1

158151A1

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

at Equipment Pump, Replaces 151217A1 Hose 19.00 mm ID x 670.00 mm

1шт.

2

153622A1

ADAPTER

ELBOW - 90 degree, special

1шт.

3

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, hydraulic, Includes: Ref. 4

1шт.

4

154503A1

O-RING

- adapter

1шт.

5

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, Includes: Ref. 6

2шт.

6

154487A1

O-RING

- adapter

1шт.

7

153227A1

HOSE

- 21-11/16 inch (550 mm) long, pump to pilot line filter

1шт.

8

153168A1

FILTER

ASSEMBLY - hydraulic, pilot line, Includes: Ref. 9 - 9B

1шт.

9

153233A1

HYDRAULIC OIL FILTER

ELEMENT - filter, pilot line, when replacing element also replace 154623A1 O-ring

1шт.

9a

154623A1

O-RING

- filter, not shown

1шт.

9b

154074A1

BACK-UP RING

RING - backup, not shown

1шт.

10

153496A1

BRACKET

- mounting, filter

1шт.

11

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

12

150988A1

WASHER

- flat, special, 12 mm

2шт.

13

153231A1

SPECIAL BOLT,High Strength, Hex, M6 x 80mm

BOLT - hex, special, filter mounting

2шт.

14

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

150325A1

SPACER

- tube, 8 ID x 13.8 OD x 10.35 mm long, Serial Range: filter-bracket

2шт.

17

152317A1

SOCKET

REDUCER - special, Includes: Ref. 18

1шт.

18

154487A1

O-RING

- adapter

1шт.

19

152130A1

NIPPLE, LUBE

ADAPTER - straight, hydraulic

4шт.

20

152686A1

CROSS

- special, Serial Range: filter-accumulator

1шт.

21

152937A1

VALVE, CHECK

VALVE - check, hydraulic

1шт.

22

153598A1

TEE

- special, hydraulic

1шт.

23

150499A1

BUSHING

ADAPTER - straight, 9/16 inch female straight thread x 3/8 inch, Serial Range: PT,-plug

1шт.

S243647

COUPLING

ASSEMBLY - quick disconnect, Includes: Ref. 23A - 25

1шт.

23a

NSS

NOT SOLD SEPARAT

COUPLING - quick disconnect, not shown

1шт.

24

S301201

CAP

- dust, Aero-Quip is stamped on coupling, if used

1шт.

24

H434163

DUST CAP

CAP - dust, PD361 is stamped on coupling, if used

1шт.

26

153603A1

ADAPTER

- straight, hydraulic

1шт.

27

152793A1

HOSE ASSY.

HOSE - 17-3/4 inch (450 mm) long, to 2-speed travel solenoid

1шт.

28

153599A1

ADAPTER

ELBOW - 45 degree, at 2-speed travel solenoid

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
