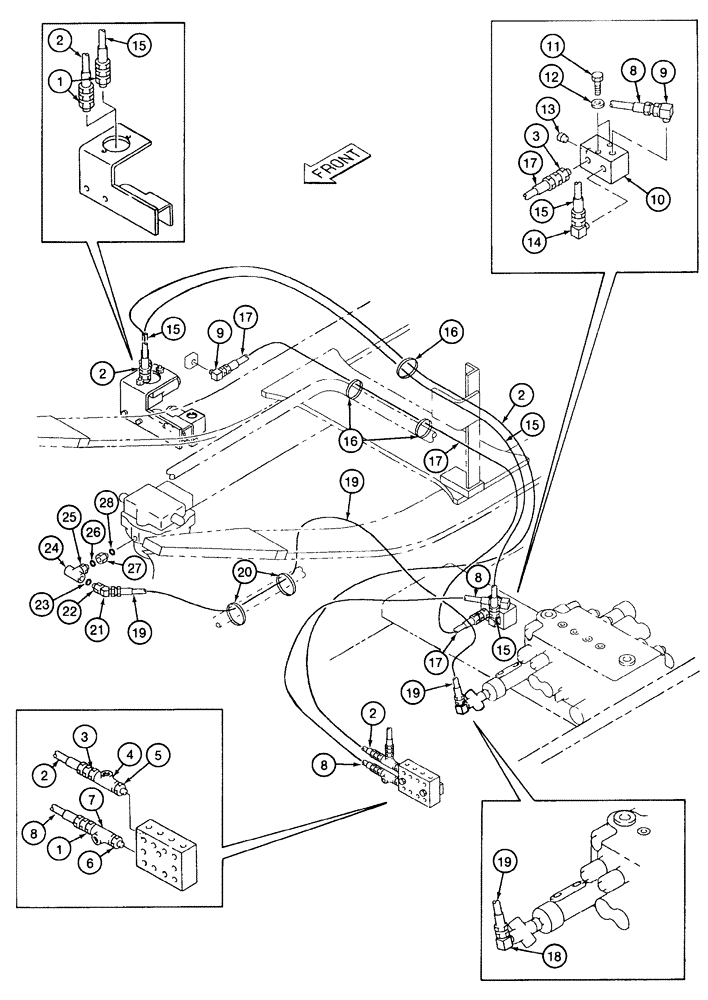

Запчасти Case 9040 (8-44) - HYD. CONTROL CIRCUIT, CONTROL VALVE PILOT LINES TO SWING MOTOR, CONTROL SHUTOFF SOLENOID & RESERVOIR (08) - HYDRAULICS

1

153597A1

ADAPTER

- straight, hydraulic

3шт.

2

152777A1

HOSE ASSY.

HOSE - 126 inch (3200 mm) long, control shutoff, Serial Range: solenoid-manifold

1шт.

3

150073A1

ADAPTER

- straight

2шт.

4

150702A1

TEE

- special

1шт.

5

152131A1

NIPPLE, LUBE

ADAPTER - tee, at manifold

1шт.

6

150867A1

NIPPLE, LUBE

CONNECTOR - straight

1шт.

7

153411A1

TEE

- special

1шт.

8

153313A1

HOSE

- 49-1/4 inch (1250 mm) long, Serial Range: manifold-manifold

1шт.

9

150602A1

ADAPTER

ELBOW - 90 degree

2шт.

10

153305A1

MANIFOLD

- hydraulic

1шт.

11

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

2шт.

12

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

13

151033A1

PLUG

- hex socket, special, manifold

1шт.

14

152749A1

ADAPTER

ELBOW - 90 degree

1шт.

15

152766A1

HOSE

- 90-9/16 inch (2300 mm) long, manifold to control shutoff solenoid

1шт.

16

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

17

156939A1

HOSE

- 92-1/2 inch (2350 mm) long, Serial Range: manifold-reservoir

1шт.

18

153596A1

ADAPTER

ELBOW - 90 degree, at left-hand control valve

1шт.

19

150966A1

HOSE ASSY.

HOSE - 78-3/4 inch (2000 mm) long, left-hand control valve to tee at swing motor

1шт.

20

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

21

153599A1

ADAPTER

ELBOW - 45 degree, at swing motor tee

1шт.

22

152309A1

SOCKET

REDUCER - special, Includes: Ref. 23

1шт.

23

154475A1

O-RING

- reducer

1шт.

24

153374A1

SHUT-OFF VALVE

VALVE - shuttle, at swing motor

1шт.

25

152636A1

ADAPTER

- straight, special, at swing motor, Includes: Ref. 26

1шт.

26

154475A1

O-RING

- adapter

1шт.

27

153412A1

SOCKET

ADAPTER - straight, 1/4 PT x 7/16-20 inch O-ring boss, at swing motor, Includes: Ref. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

- reducer bushing

1шт.
