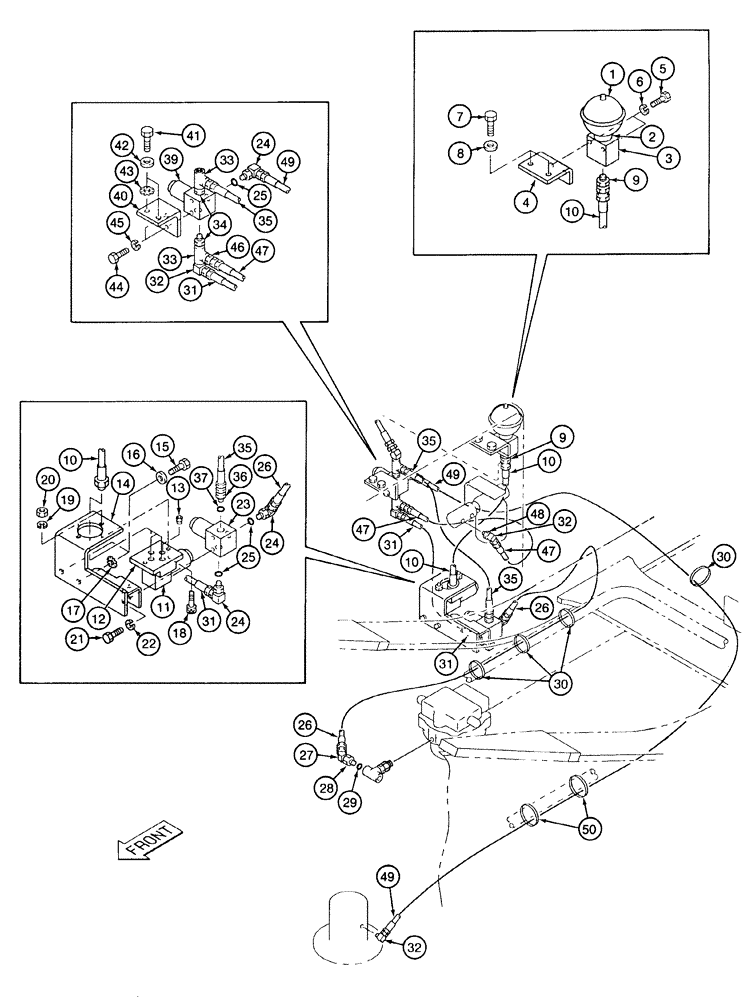

Запчасти Case 9040 (8-40) - HYDRAULIC CONTROL CIRCUIT, PILOT LINES AT SOLENOIDS AND ACCUMULATOR (08) - HYDRAULICS

1

150894A1

ACCUMULATOR

- hydraulic, pilot, Includes: Ref. 2

1шт.

2

154486A1

O-RING

- special

1шт.

3

150898A1

MANIFOLD

- at accumulator

1шт.

4

153518A1

BRACKET

- mounting, accumulator

1шт.

5

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

7

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

8

150988A1

WASHER

- flat, special, 12 mm

2шт.

9

153597A1

ADAPTER

- straight, hydraulic

1шт.

10

153336A1

HOSE ASSY.

HOSE - 15-3/4 inch (400 mm) long, pilot accumulator to control shutoff solenoid

1шт.

11

150425A1

VALVE

ASSEMBLY - solenoid, control shutoff parts list figure 8-52

1шт.

12

150447A1

PLATE

- adapter, solenoid mounting

1шт.

13

151030A1

PLUG

- port

1шт.

14

153410A1

BRACKET

- mounting, solenoid

1шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

16

150988A1

WASHER

- flat, special, 12 mm

2шт.

17

30574R1

LOCK WASHER,Ext Tooth, M12

WASHER - internal tooth lock, 12 mm

1шт.

18

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 25 mm, class 12.9

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

21

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

23

150844A1

VALVE

ASSEMBLY - solenoid, swing brake release, parts list figure 8-54

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, hydraulic, Includes: Ref. 25

3шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

152604A1

HOSE,63.00 mm ID x 1600.00 mm

- Swing brake release solenoid valve to swing motor 63.00 mm ID x 1600.00 mm

1шт.

27

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

28

152309A1

SOCKET

REDUCER - special, to tee, Includes: Ref. 29

1шт.

29

154475A1

O-RING

- reducer

1шт.

30

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

31

151862A1

HOSE,63.00 mm ID x 400.00 mm

- Swing brake release solenoid to 2-speed travel solenoid 63.00 mm ID x 400.00 mm

1шт.

32

153596A1

ADAPTER

ELBOW - 90 degree

3шт.

33

152135A1

TEE

- hydraulic

2шт.

34

152899A1

HYD CONNECTOR

CONNECTOR - straight

2шт.

35

152362A1

HOSE,530.00 mm

- At 2-speed travel solenoid to swing brake release solenoid 530.00 mm

1шт.

36

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

39

150844A1

VALVE

ASSEMBLY - solenoid, 2-speed travel, parts list figure 8-54

1шт.

40

153394A1

BRACKET

- mounting

1шт.

41

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

42

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

44

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

43

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

45

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

46

153603A1

ADAPTER

- straight, hydraulic

1шт.

47

152517A1

HOSE,63mm ID x 1100mm L

- at 2-speed travel solenoid 63.00 mm ID x 1100.00 mm

1шт.

48

152194A1

BUSHING

REDUCER - special

1шт.

49

152778A1

HOSE ASSY.

HOSE - 106-5/16 inch (2700 mm) long, 2-speed travel, Serial Range: solenoid-swivel

1шт.

50

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.
