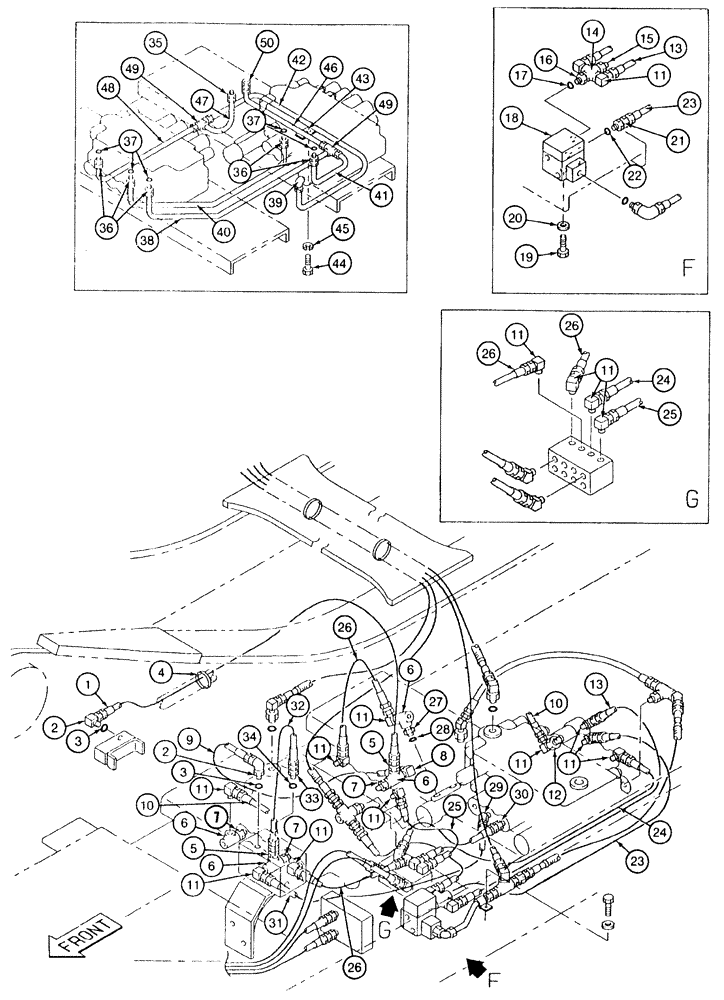

Запчасти Case 9040 (8-36) - PILOT CONTROL LINE HYDRAULIC CIRCUIT, PILOT LINES AT CONTROL VALVES (08) - HYDRAULICS

1

152765A1

HOSE

- 82-11/16 inch (2100 mm) long, to right-hand control valve

1шт.

2

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 3

2шт.

3

154475A1

O-RING

- elbow

1шт.

4

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

5

152748A1

ADAPTER

- straight

2шт.

6

152135A1

TEE

- hydraulic

4шт.

7

150847A1

HYD CONNECTOR

CONNECTOR - straight

3шт.

8

152749A1

ADAPTER

ELBOW - 90 degree, at tee

1шт.

9

153409A1

HOSE

- 55-1/4 inch (1400 mm) long, right-hand control, Serial Range: valve-tee

1шт.

10

151892A1

HOSE,6.3mm ID x 1950mm L

- RH control valve to LH control valve 1950.00 mm

1шт.

11

153596A1

ADAPTER

ELBOW - 90 degree, hydraulic

15шт.

12

152309A1

SOCKET

REDUCER - special

1шт.

13

152517A1

HOSE,63mm ID x 1100mm L

- LH control valve to cross at hydraulic valve 63.00 mm ID x 1100.00 mm

1шт.

14

152303A1

4 WAY CONNECTION

CROSS - special

1шт.

15

151055A1

BUSHING

- reducer

1шт.

16

152899A1

HYD CONNECTOR

CONNECTOR - straight, hydraulic

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

1шт.

18

153247A1

VALVE

- hydraulic control, component parts not serviced separately

1шт.

19

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9

2шт.

20

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, hydraulic, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

23

152517A1

HOSE,63mm ID x 1100mm L

- LH control valve to hydraulic control valve 63.00 mm ID x 1100.00 mm

1шт.

24

153230A1

HOSE ASSY.

HOSE - 41-3/8 inch (1050 mm) long, left-hand control valve to travel shuttle valve

1шт.

25

152276A1

HOSE,63mm ID x 550mm L

Travel shuttle valve to RH control valve 63.00 mm ID x 550.00 mm

1шт.

26

151862A1

HOSE,63.00 mm ID x 400.00 mm

63.00 mm ID x 400.00 mm

3шт.

27

152636A1

ADAPTER

- straight, hydraulic, at left-hand control valve, Includes: Ref. 28

1шт.

28

154475A1

O-RING

- adapter

1шт.

29

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

30

153603A1

ADAPTER

- straight, hydraulic

1шт.

31

151872A1

HOSE ASSY.

HOSE - 33-1/2 inch (850 mm) long, left-hand control valve to right-hand control valve

1шт.

32

153418A1

HOSE ASSY.

HOSE - 33-1/2 inch (850 mm) long, right-hand control valve

1шт.

33

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, hydraulic, Includes: Ref. 34

1шт.

34

154475A1

O-RING

- adapter

1шт.

35

151664A1

CONNECTOR, ELEC

ADAPTER - straight

1шт.

36

152693A1

CONNECTOR, ELEC

ADAPTER - straight, hydraulic

5шт.

37

154475A1

O-RING

- adapter

1шт.

38

153300A1

TUBE,714 mm Length

- right-hand to left-hand control valve

1шт.

39

152630A1

ELBOW

- special, 90 degree

1шт.

40

153302A1

TUBE,564.5 mm Length

- left-hand to right-hand control valve

1шт.

41

153299A1

HYD TUBE

TUBE - hydraulic

1шт.

42

153294A1

TUBE

- left-hand control, Serial Range: valve-tee

1шт.

43

151258A1

SPECIAL CLAMP

CLAMP - tube

1шт.

44

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

1шт.

45

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

46

153301A1

TUBE,314.7, 53.3 mm Length

- at tee

1шт.

47

153295A1

TUBE,120, 52 mm Length

- at tee

1шт.

48

153297A1

TUBE,549.5, 529.5 mm Length

- to right-hand control valve

1шт.

49

151789A1

TEE

- hydraulic

2шт.

50

150132A1

SOCKET

ADAPTER - straight, special

1шт.
