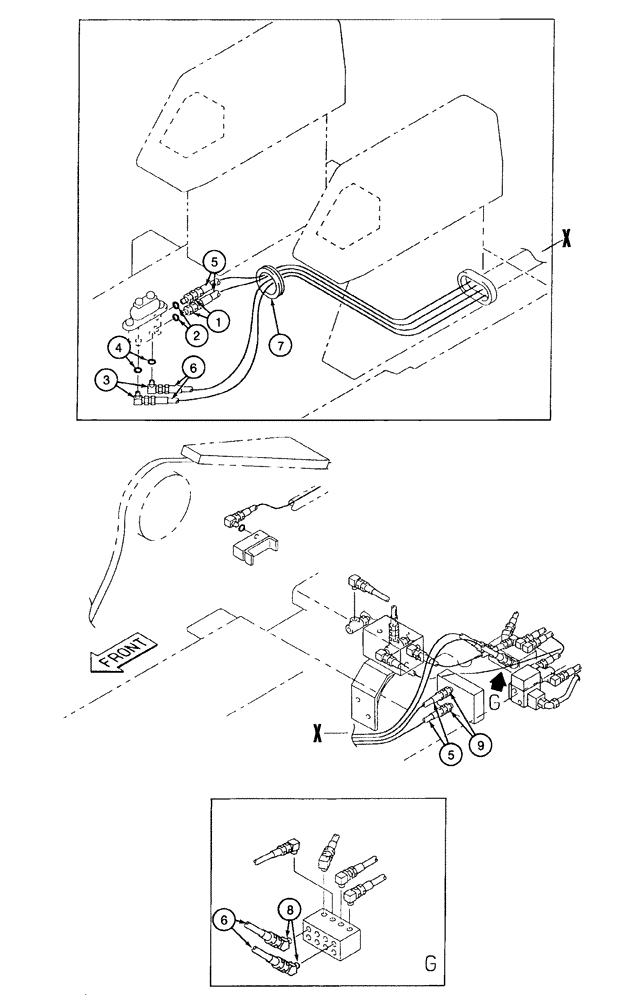

Запчасти Case 9040 (8-34) - PILOT CONTROL LINE HYDRAULIC CIRCUIT, DUAL TRACK DRIVE FOOT CONTROLS, TO TRAVEL SHUTTLE VALVE (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, hydraulic, Includes: Ref. 2

2шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, at lower port of foot pedal control valve, Includes: Ref. 4

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

5

153592A1

HOSE

- 59-1/16 inch (1500 mm) long, foot pedal control, Serial Range: valve-manifold

2шт.

6

152704A1

HOSE

- 71 inch (1800 mm) long, Lower port foot pedal control valve to travel shuttle valve

2шт.

7

152531A1

GROMMET

- rubber

1шт.

8

153599A1

ADAPTER

ELBOW - 45 degree, at travel shuttle valve

2шт.

9

153603A1

ADAPTER

- straight, hydraulic, at manifold

2шт.
