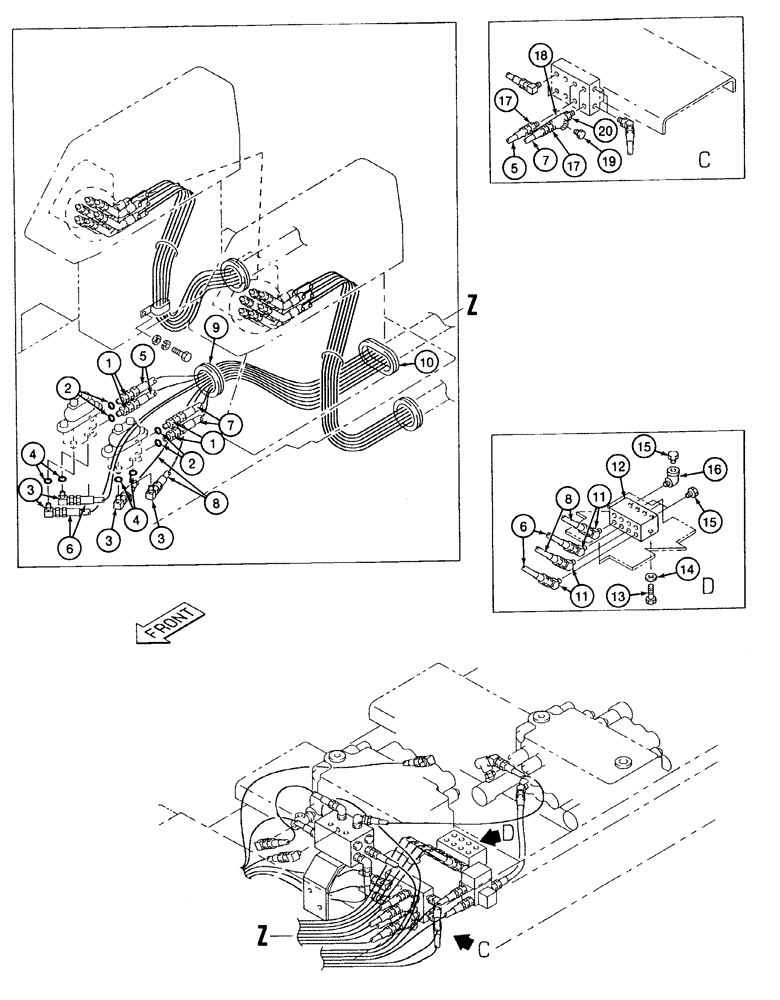

Запчасти Case 9040 (8-32) - PILOT CONTROL LINE HYDRAULIC CIRCUIT, L.H. & R.H. TRACK DRIVE FOOT CONTROLS TO, TRAVEL SHUTTLE VALVE (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, at left-hand and right-hand foot pedal control valve, Includes: Ref. 2

4шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, at left-hand and right-hand foot pedal control valve lower port, Includes: Ref. 4

4шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

5

153398A1

HOSE ASSY.

HOSE - 55-1/4 inch (1400 mm) long, right-hand foot pedal control, Serial Range: valve-manifold

2шт.

6

153484A1

HOSE ASSY.

HOSE - 67 inch (1700 mm) long, right-hand foot pedal control valve to travel shuttle valve

2шт.

7

153398A1

HOSE ASSY.

HOSE - 55-1/4 inch (1400 mm) long, left-hand foot pedal control, Serial Range: valve-manifold

2шт.

8

153484A1

HOSE ASSY.

HOSE - 67 inch (1700 mm) long, left-hand foot pedal control valve to travel shuttle valve

2шт.

9

152531A1

GROMMET

- rubber

1шт.

10

152619A1

GROMMET

- rubber

1шт.

11

153599A1

ADAPTER

ELBOW - 45 degree, hydraulic

4шт.

12

152744A1

SHUT-OFF VALVE

VALVE ASSEMBLY - shuttle, travel, parts list figure 8-62

1шт.

13

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

14

153232A1

WASHER

- special

4шт.

15

151055A1

BUSHING

- reducer

4шт.

16

152155A1

ELBOW

- 90 degree, hydraulic

1шт.

17

153603A1

ADAPTER

- straight, hydraulic

4шт.

18

152135A1

TEE

- hydraulic

2шт.

19

151026A1

PLUG

- port

2шт.

20

150847A1

HYD CONNECTOR

CONNECTOR - straight

2шт.
