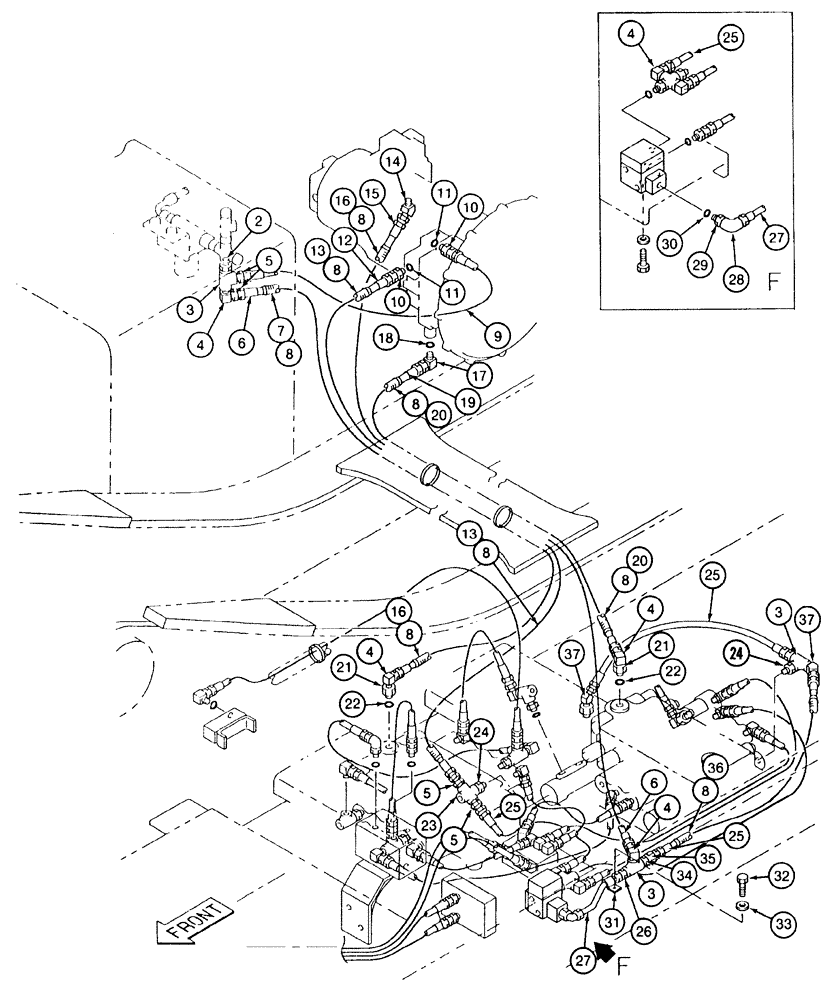

Запчасти Case 9040 (8-30) - PILOT CONTROL LINE HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVES (08) - HYDRAULICS

2

152129A1

NIPPLE, LUBE

ADAPTER - straight, hydraulic

1шт.

3

152135A1

TEE

- hydraulic

3шт.

4

153596A1

ADAPTER

ELBOW - 90 degree, hydraulic

5шт.

5

153603A1

ADAPTER

- straight, hydraulic

4шт.

6

152299A1

HOSE,63.00 mm ID x 2950.00 mm

- To RH control valve 63.00 mm ID x 2950.00 mm

1шт.

7

153309A1

TUBE

GUARD - hose

1шт.

8

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

8шт.

9

151872A1

HOSE ASSY.

HOSE - 33-1/2 inch (850 mm) long

1шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, hydraulic, Includes: Ref. 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

12

152289A1

HOSE,6.3mm ID x 2550mm L

63.00 mm ID x 2550.00 mm

1шт.

13

153308A1

TUBE,10.5 mm ID, 14.1 mm OD, 2400 mm Length

GUARD - hose

1шт.

14

150933A1

ELBOW

- 45 degree, hydraulic

1шт.

15

151904A1

HOSE,6.3mm ID x 3100mm L

Pump to tee 63.00 mm ID x 3100.00 mm

1шт.

16

153310A1

TUBE

GUARD - hose

1шт.

17

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, hydraulic, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

19

151892A1

HOSE,6.3mm ID x 1950mm L

- Pump to LH control valve 1950.00 mm

1шт.

20

151942A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 70-7/8 inch (1800 mm) long

1шт.

21

152359A1

ADAPTER

- special, Includes: Ref. 22

2шт.

22

154475A1

O-RING

- adapter

1шт.

23

152303A1

4 WAY CONNECTION

CROSS - special

1шт.

24

150847A1

HYD CONNECTOR

CONNECTOR - straight

2шт.

25

152276A1

HOSE,63mm ID x 550mm L

63.00 mm ID x 550.00 mm

3шт.

26

151664A1

CONNECTOR, ELEC

ADAPTER - straight

1шт.

27

153303A1

HYD TUBE,210, 40 mm Length

TUBE - to hydraulic control valve

1шт.

28

151731A1

ELBOW

- 90 degree, hydraulic

1шт.

29

153215A1

BUSHING

REDUCER -, Serial Range: special,-valve

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- reducer, Includes: Ref. 30

1шт.

31

153223A1

SPECIAL CLAMP

CLAMP - tube

1шт.

32

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

1шт.

33

153232A1

WASHER

- special

1шт.

34

153306A1

ORIFICE

REDUCER - special, with orifice

1шт.

35

150693A1

FITTING

ADAPTER - straight

1шт.

36

152662A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated

1шт.

37

153599A1

ADAPTER

ELBOW - 45 degree, hydraulic

2шт.
