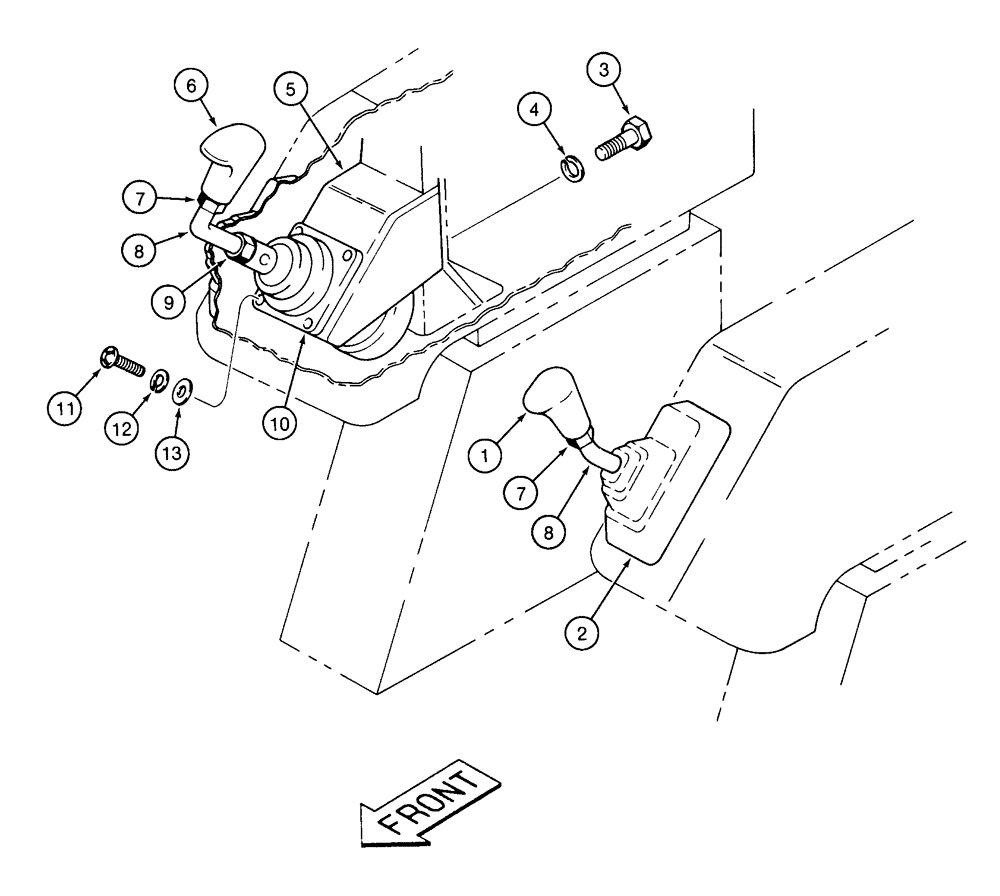

Запчасти Case 9040 (8-28) - REMOTE CONTROL LEVERS, CONTROLLERS AND MOUNTING (08) - HYDRAULICS

1

151613A1

KNOB

- control, left-hand controller

1шт.

2

151302A1

CAP

BOOT - dust protection

2шт.

REF NO 2 the picture of the dust boot is incorrect in many catalogs. This is a dust cap. If looking for large rectangular boot the part no. is 152398a1. sb 8/99

1шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

8шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

5

151027A1

BRACKET

- mounting, controller

2шт.

6

151616A1

KNOB

- control, right-hand controller

1шт.

7

150373A1

NUT

- hex, 12 mm - 1.25, class 12.9, jam, special

2шт.

8

150906A1

LEVER

- control, equipment

2шт.

9

151154A1

JAM NUT

- hex, jam, special

2шт.

10

153359A1

VALVE

ASSEMBLY - remote control, hand operated controllers, parts list figure 8-58

2шт.

11

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 25 mm

8шт.

12

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

8шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.
