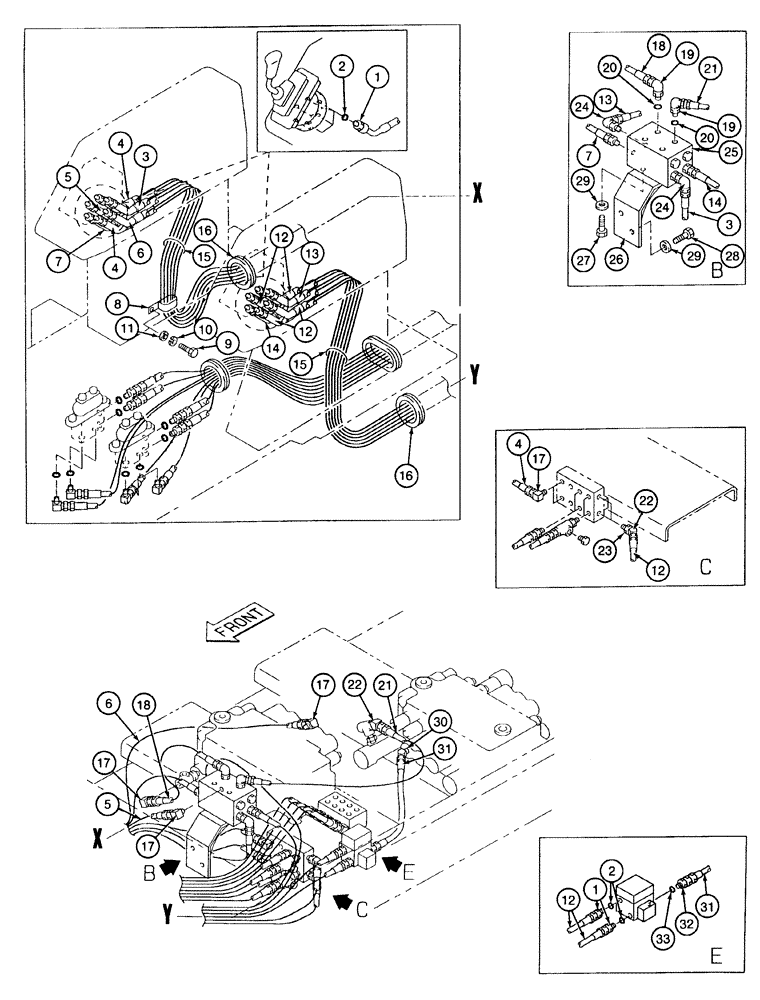

Запчасти Case 9040 (8-26) - PILOT CONTROL LINE HYDRAULIC CIRCUIT, HAND CONTROLLERS TO MAIN CONTROL VALVES (08) - HYDRAULICS

1

152747A1

ADAPTER

- straight, hydraulic, Includes: Ref. 2

14шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

153089A1

HOSE

- 86-5/8 inch (220 mm) long, right-hand controller to attachment cushion valve

1шт.

4

152960A1

HOSE

- 78-3/4 inch (2000 mm) long, right-hand, Serial Range: controller-manifold

2шт.

5

153513A1

HOSE

- 67 inch (1700 mm) long, right-hand controller to attachment cushion valve

1шт.

6

152984A1

HOSE

- 94-1/2 inch (2400 mm) long, right-hand controller to right-hand control valve

1шт.

7

150385A1

HYDRAULIC HOSE

HOSE - 74-13/16 inch (1900 mm) long, right-hand controller to attachment cushion valve

1шт.

8

152762A1

CLAMP

- at right-hand controller

1шт.

9

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9

1шт.

10

892-11010

LOCK WASHER,M10

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

12

153513A1

HOSE

- 67 inch (1700 mm) long, left-hand controller to manifold and hydraulic control valve

4шт.

13

153533A1

HOSE

- 82-11/16 inch (2100 mm) long, left-hand controller to attachment cushion valve

1шт.

14

152983A1

HOSE

- 71 inch (1800 mm) long, left-hand controller to attachment cushion valve

1шт.

15

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

16

152531A1

GROMMET

- rubber

2шт.

17

152749A1

ADAPTER

ELBOW - 90 degree, hydraulic

4шт.

18

152612A1

HOSE,95.00 mm ID x 600.00 mm

- To RH control valve 95.00 mm ID x 600.00 mm

1шт.

19

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, at attachment cushion valve, Includes: Ref. 20

2шт.

20

154475A1

O-RING

- elbow

1шт.

21

152758A1

HOSE ASSY.

HOSE - 49-3/16 inch (1250 mm) long, to left-hand control valve

1шт.

22

152955A1

ADAPTER

ELBOW - special, 45 degree

3шт.

23

151063A1

BUSHING

- reducer, at manifold

2шт.

24

153526A1

ELBOW

- 90 degree, special, hydraulic

2шт.

25

153406A1

VALVE, CUSHION

VALVE - cushion, attachment, parts list page 8-57

1шт.

26

153387A1

BRACKET

- mounting, attachment cushion valve

1шт.

27

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

29

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

30

153599A1

ADAPTER

ELBOW - 45 degree, at left-hand control valve

1шт.

31

152276A1

HOSE,63mm ID x 550mm L

LH control valve to hydraulic control valve 63.00 mm ID x 550.00 mm

1шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, at hydraulic control valve, Includes: Ref. 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

28

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
