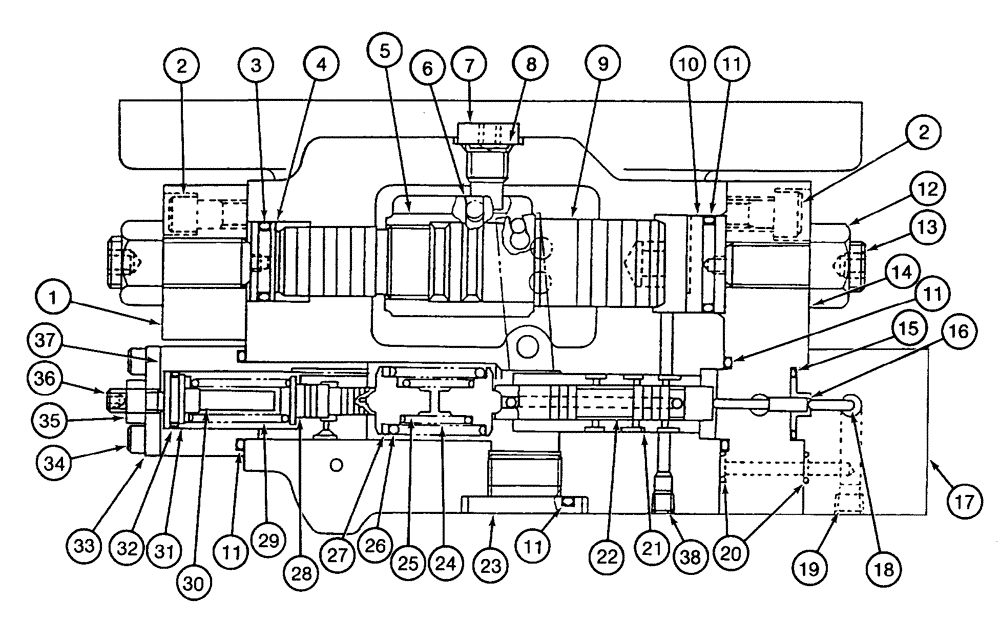

Запчасти Case 9040 (8-24) - 153393A1 HYDRAULIC PUMP, FRONT AND REAR REGULATOR, HOUSING AND PISTONS (08) - HYDRAULICS

153393A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment, parts list figures 8-14 through 8-24, Includes: Ref. 1 - 38

1шт.

NSS

NOT SOLD SEPARAT

REGULATOR ASSEMBLY - pump, front, includes parts on figure 8-20, Includes: Ref. 1 - 38

1шт.

NSS

NOT SOLD SEPARAT

REGULATOR ASSEMBLY - pump, rear, includes parts on figure 8-22, Includes: Ref. 1 - 38

1шт.

1

156974A1

COVER

- regulator

1шт.

2

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

8шт.

3

155095A1

O-RING

- piston end

1шт.

Part of Front Regulator Seal Kit P/N 157027A1

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

4

156975A1

STOP

- piston, small end

1шт.

5

156976A1

LEVER

- regulator

1шт.

6

156977A1

SET SCREW

SCREW - set

1шт.

7

156978A1

BOLT

PLUG - port

1шт.

8

154471A1

O-RING

- plug

1шт.

9

156988A1

PISTON

- regulator, main

1шт.

10

156980A1

STOP

- piston, large end

1шт.

11

154529A1

O-RING

- large end

4шт.

Part of Front Regulator Seal Kit P/N 157027A1

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

12

156981A1

NUT

- hex, special

2шт.

13

156982A1

SET SCREW

- adjusting, piston

2шт.

14

156983A1

CASE

COVER - piston end, and pilot

1шт.

15

154495A1

O-RING

- sub plate to pilot end cover

1шт.

Part of Front Regulator Seal Kit P/N 157027A1

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

16

156986A1

PISTON

PLUNGER - pilot

1шт.

17

156984A1

COVER

PLATE - manifold, front regulator only

1шт.

17

157028A1

PLATE

- manifold, rear regulator only

1шт.

18

156985A1

PISTON

ROD - push

1шт.

19

156987A1

PLUG

- port

4шт.

20

154455A1

O-RING

- plug

5шт.

Part of Front Regulator Seal Kit P/N 157027A1

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

156543A1

SLEEVE

ASSEMBLY - with spool, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE - spool

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - regulator

1шт.

23

156544A1

PLUG

- port

1шт.

24

156990A1

SPRING

- spool return, inner

1шт.

25

156991A1

SPRING SEAT

SEAT - spring

2шт.

26

156992A1

SPRING

- spool return, outer

1шт.

27

156993A1

LINING

SHIM - adjusting

1шт.

28

156994A1

PISTON

- regulator

1шт.

29

156995A1

SPRING

- piston return

1шт.

30

156996A1

RING

SEAT - spring

1шт.

31

156997A1

SPRING SEAT

GUIDE - spring, horsepower adjusting, front regulator only

1шт.

31

156989A1

SPRING SEAT

SEAT - spring, horsepower adjusting, rear regulator only

1шт.

32

154483A1

O-RING

- spring seat

1шт.

Part of Front Regulator Seal Kit P/N 157027A1

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

33

156998A1

COVER

- regulator

1шт.

34

861-6045

HEX SOC SCREW,M6 x 45mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 45 mm, class 12.9

4шт.

35

156999A1

NUT

- hex, special

2шт.

36

157000A1

SET SCREW

- set, special

1шт.

37

157001A1

CASE

HOUSING - spool, and spring

1шт.

38

156785A1

HOSE

PLUG - port

2шт.

157027A1

SEAL KIT

- seal, front regulator, Includes: Ref. 3, 8, 11, 15, 20 and 32 this figure and 5, 12, 15, 19, 26, 35 and 39 on Figure 08-020

1шт.

157030A1

SEAL KIT

- seal, rear regulator, Includes: Ref. 3, 8, 11, 15, 20 and 32 this figure and 5, 12, 15, 17, 19, 26, 28 and 31 on Figure 08-022

1шт.
