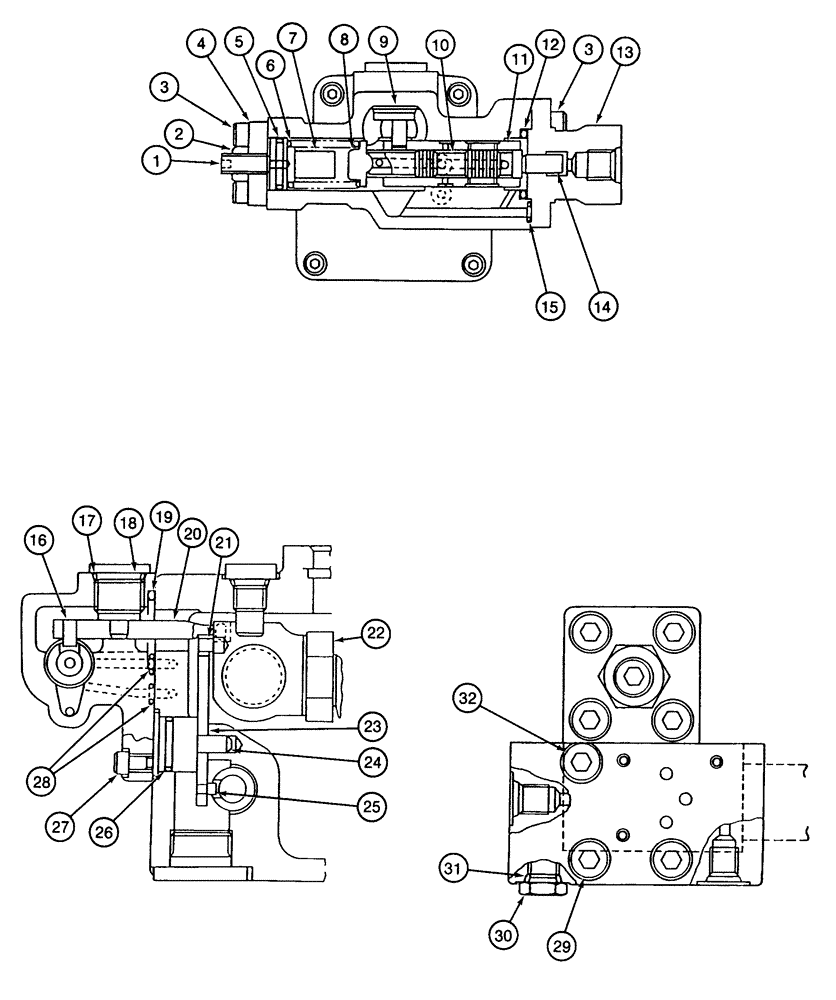

Запчасти Case 9040 (8-22) - 153393A1 HYDRAULIC PUMP, REAR REGULATOR ASSEMBLY, FEED BACK LEVER AND CONTROL ASSEMBLY (08) - HYDRAULICS

153393A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment, parts list figures 8-14 through 8-24, Includes: Ref. 1 - 32

1шт.

NSS

NOT SOLD SEPARAT

REGULATOR ASSEMBLY - pump, rear, includes parts on figures 8-22 through 8-24, Includes: Ref. 1 - 32

1шт.

1

157000A1

SET SCREW

- set, special

1шт.

2

156999A1

NUT

- hex, special

1шт.

3

861-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 16 mm, class 12.9

8шт.

4

157003A1

COVER

- spool end

1шт.

5

154487A1

O-RING

- spring seat seal

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

6

157007A1

SPRING

- spool return

1шт.

7

157006A1

SPRING SEAT

SEAT - spring

1шт.

8

156545A1

PIN

SEAT - spring

1шт.

157029A1

CONTROL

ASSEMBLY - regulator, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - regulator control

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

11

NSS

NOT SOLD SEPARAT

SLEEVE - spool

1шт.

12

154509A1

O-RING

- cover to housing seal

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

13

157011A1

COVER

- spool end

1шт.

14

157010A1

PISTON

ROD - push

1шт.

15

154447A1

O-RING

- oil passage seal

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

16

157018A1

COTTER PIN

PIN - feed back lever

1шт.

17

154487A1

O-RING

- port plug

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

18

157019A1

PLUG

- port

1шт.

19

154529A1

O-RING

- lever housing

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

20

157020A1

LEVER

- feed back

1шт.

21

157021A1

PIN

- feed back

1шт.

22

157022A1

BACK-UP RING

RING - slide

1шт.

23

157023A1

LEVER

- feed back

1шт.

24

157024A1

PIN

- center

1шт.

25

157025A1

PIN

- feed back

1шт.

26

154491A1

O-RING

- oil passage seal

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

27

861-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

- hex socket, 6 - 1.0 x 20 mm, class 12.9

4шт.

28

154447A1

O-RING

- oil passage

2шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

29

861-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 70 mm, class 12.9

2шт.

30

155496A1

PLUG

- port

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

- port plug

1шт.

Part of Rear Regulator Kit P/N 157030A1

1шт.

32

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

1шт.

157030A1

SEAL KIT

- seal, rear regulator, Includes: Ref. 5, 12, 15, 17, 19, 26, 28 and 31 this figure and 3, 8, 11, 15, 20, and 32 on Figure 8-24

1шт.
