Запчасти Case 9040 (8-14) - 153393A1 EQUIPMENT PUMP, PUMP DRIVE (08) - HYDRAULICS

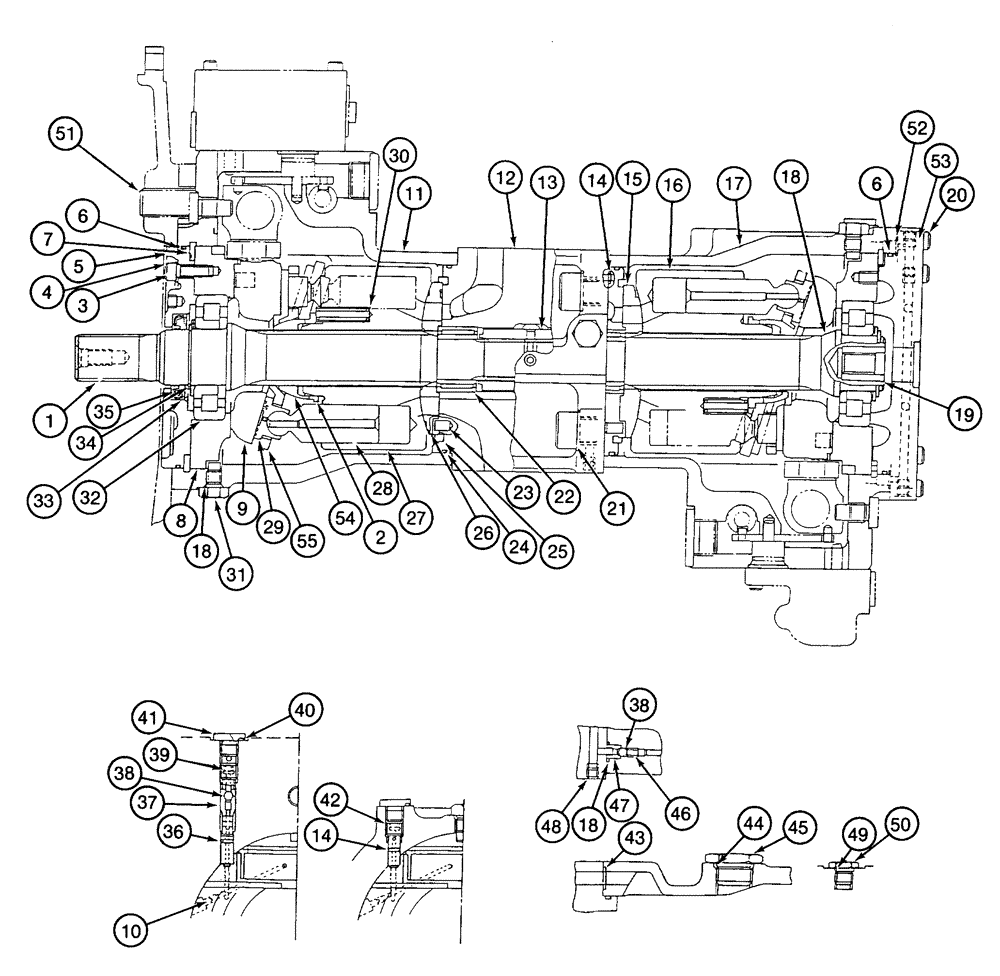

Схема запчастей Case 9040 - (8-14) - 153393A1 EQUIPMENT PUMP, PUMP DRIVE (08) - HYDRAULICS
21
35
14
4
41
29
45
44
22
15
19
47
24
12
33
43
31
32
28
23
40
17
51
50
8
54
11
37
39
14
5
6
30
18
9
7
18
48
6
13
38
20
52
49
2
26
1
38
16
3
18
34
25
46
55
27
36
53
42
10

Артикул

Название

Примечание

Количество

153393A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment, parts list figures 8-14 through 8-24, Includes: Ref. 1 - 56

1шт.

NSS

NOT SOLD SEPARAT

DRIVE ASSEMBLY - pump, parts list figures 8-14 and 8-16, Includes: Ref. 1 - 56

1шт.

1

156724A1

DRIVE SHAFT

SHAFT - drive, flange end

1шт.

2

156873A1

KIT

SPACER - special, bushing

2шт.

3

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

4шт.

4

156884A1

SEALING WASHER

- special, sealing

4шт.

5

156940A1

COVER

- front bearing

1шт.

6

156941A1

O-RING

- seal, cover

2шт.

Part of Pump Drive Seal Kit P/N 156973A1

1шт.

7

156942A1

RETAINER

RING - retaining, plate

2шт.

156943A1

PLATE

ASSEMBLY - piston shoe, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

HOLDER - shoe

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - piston

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - port, oil passage

1шт.

11

156932A1

CASE

HOUSING - pump, flange end

1шт.

12

156946A1

BLOCK

HOUSING - center coupling

1шт.

13

156947A1

COUPLING

- splined, pump shaft

1шт.

14

154447A1

O-RING

- oil passage

10шт.

Part of Pump Drive Seal Kit P/N 156973A1

1шт.

156948A1

CYLINDER

BLOCK ASSEMBLY - cylinder, closed end, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

16

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

17

156949A1

CASE

HOUSING - pump, closed end

1шт.

156950A1

DRIVE

SHAFT ASSEMBLY - pump, closed end, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

SHAFT - pump, closed end

1шт.

19

NSS

NOT SOLD SEPARAT

COUPLING - splined, closed end

1шт.

20

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 30 mm, class 12.9

8шт.

21

156952A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, special

8шт.

22

156953A1

NEEDLE BEARING

- coupling

2шт.

23

156954A1

DOWEL

PIN - dowel

2шт.

24

154777A1

O-RING

- housing

2шт.

Part of Pump Drive Seal Kit P/N 156973A1

1шт.

25

156955A1

GUIDE RING

RING - guide, housing

2шт.

156956A1

CYLINDER

BLOCK ASSEMBLY - cylinder, flange end, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

27

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

156957A1

PISTON

ASSEMBLY - pump, Includes: Ref. 28 and 29

2шт.

28

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

29

NSS

NOT SOLD SEPARAT

SHOE - piston

9шт.

30

156960A1

SPRING

- shoe return

18шт.

153393A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment, parts list page 8-15 through 8-25

1шт.

NSS

NOT SOLD SEPARAT

DRIVE ASSEMBLY - pump, parts list pages 8-15 and 8-17

1шт.

31

156961A1

BOLT

PLUG - port, special

2шт.

32

156962A1

ROLLER BEARING,40 mm ID x 90 mm OD x 23 mm

- pump shaft

2шт.

33

156963A1

SPACER

- bearing

2шт.

34

800-1140

SNAP RING,M40, Ext

Retaining M40, Ext

2шт.

35

156964A1

OIL SEAL

SEAL - oil, pump shaft, flange end

1шт.

Part of Pump Drive Seal Kit P/N 156973A1

1шт.

36

154435A1

O-RING

- seal, oil passage

10шт.

Part of Pump Drive Seal Kit P/N 156973A1

1шт.

37

156965A1

PIPE

HOLDER - ball check

1шт.

38

156966A1

BALL

- steel

4шт.

39

156967A1

STOP

- ball check

1шт.

40

154483A1

O-RING

- plug

2шт.

Part of Pump Drive Seal Kit P/N 156973A1

1шт.

41

156968A1

PLUG

- port, special

2шт.

42

156969A1

PIPE

PLUNGER - oil passage check

1шт.

43

154471A1

O-RING

- plug, seal

4шт.

Part of Pump Drive Seal Kit P/N 156973A1

1шт.

44

154503A1

O-RING

- plug, seal

3шт.

45

155471A1

PLUG

- port

3шт.

46

156970A1

STOP

- ball check

3шт.

47

156971A1

SEAT

- ball

3шт.

48

156972A1

PLUG

- port

35шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

- port plug

4шт.

Part of Pump Drive Seal Kit P/N 156973A1

1шт.

50

155496A1

PLUG

- port

4шт.

51

156201A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, special

4шт.

52

154463A1

O-RING

- plug

5шт.

Part of Pump Drive Seal Kit P/N 156973A1

1шт.

53

156951A1

REAR COVER

COVER - pump, closed end

1шт.

54

156958A1

BUSHING

- cylinder block

2шт.

55

156959A1

HOLDER

- piston shoe

2шт.

56

163098A1

SOLENOID

- valve, proportional, not shown

1шт.

156973A1

SEAL KIT

- seal, pump drive, Includes: Ref. 6, 14, 24, 35, 36, 40, 43, 49 and 52.

1шт.
