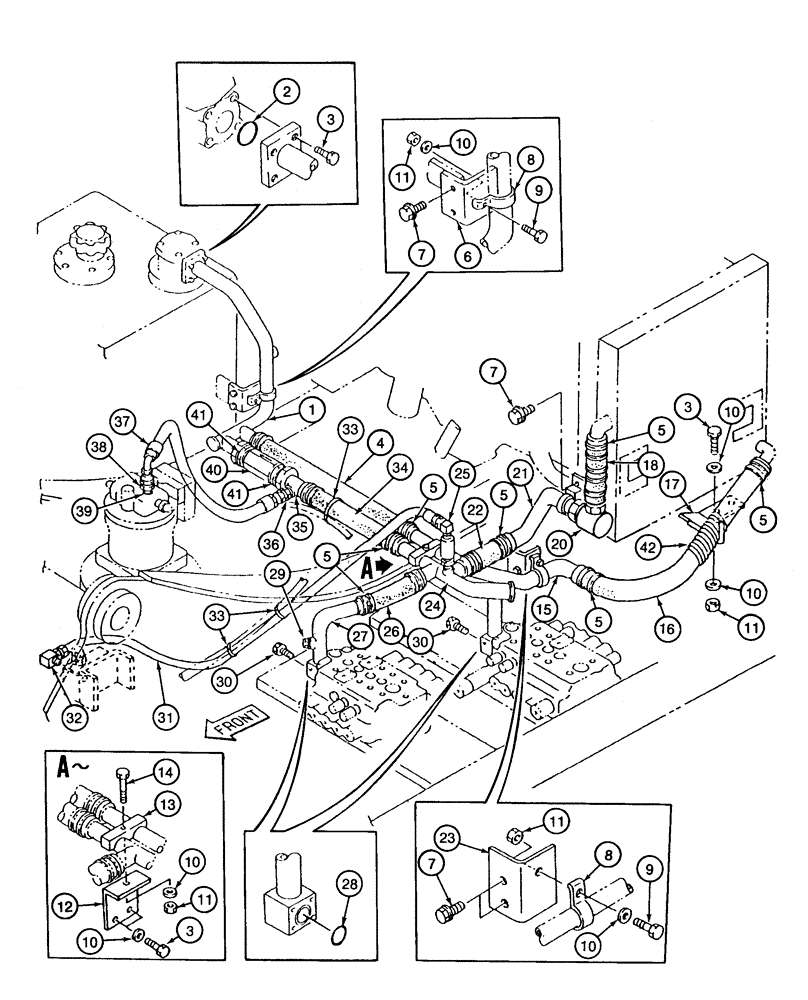

Запчасти Case 9040 (8-12) - BASIC HYDRAULIC CIRCUIT, COOLING SYSTEM (08) - HYDRAULICS

1

153278A1

TUBE,42.7 mm OD, 654, 157 mm Length

- cooler return at reservoir

1шт.

2

154655A1

O-RING

- tube at reservoir

1шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

8шт.

4

153334A1

HOSE

- 31-1/8 inch (790 mm) long, Serial Range: reservoir-cooler

1шт.

5

152795A1

CLIP

CLAMP - hose

24шт.

6

153289A1

BRACKET

- mounting, tube at reservoir

1шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, bracket mounting

6шт.

8

150078A1

SPECIAL CLAMP

CLAMP - tube, 42 mm

2шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 45 mm, class 10.9

2шт.

10

150811A1

WASHER

- flat, special, 12 mm

9шт.

11

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

5шт.

12

153201A1

BRACKET

- mounting

1шт.

13

153188A1

COLLAR

CLAMP - hose

1шт.

14

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 85 mm, class 10.9

1шт.

15

153421A1

TUBE

, Serial Range: --cooler

1шт.

16

158641A1

HOSE

- at cooler

1шт.

17

157153A1

BRACKET

- retaining

1шт.

18

158803A1

HOSE

- 10-7/16 inch (265 mm) long, at cooler

1шт.

20

156458A1

ELBOW

- at cooler

1шт.

21

153419A1

TUBE

- at cooler

1шт.

22

153221A1

HOSE

- 7-7/8 inch (200 mm) long, cooler line return at cooler

1шт.

23

153288A1

BRACKET

- mounting, tube

1шт.

24

153420A1

TUBE,42.7 mm OD, 536.9, 222 mm Length

- special

1шт.

25

150602A1

ADAPTER

ELBOW - 90 degree

1шт.

26

152690A1

HOSE,42.70 mm ID x 340.00 mm

- Cooler system to cooler 42.70 mm ID x 340.00 mm

1шт.

27

153276A1

TUBE,222, 185 mm Length

- at right-hand control valve

1шт.

28

154569A1

O-RING

- tube

2шт.

29

150995A1

PLUG

- hex, pipe

1шт.

30

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 60 mm, class 12.9

8шт.

31

153586A1

HOSE ASSY.

HOSE - 75 inch (1900 mm) long

1шт.

32

150466A1

ELBOW

- special, 90 degree

1шт.

33

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

3шт.

34

150731A1

HOSE

-, Serial Range: return-reservoir

1шт.

35

153277A1

TUBE,42.7 mm OD, 180 mm Length

- special

1шт.

36

150723A1

ADAPTER

- straight, special, hydraulic

1шт.

37

153279A1

HOSE ASSY.

HOSE - 30-3/4 inch (780 mm) long, to swing motor

1шт.

38

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, at swing motor, Includes: Ref. 39

1шт.

39

154523A1

O-RING

- adapter

1шт.

40

153265A1

VALVE, CHECK

VALVE - check

1шт.

41

150726A1

CONNECTOR, ELEC

ADAPTER - straight, at check valve

2шт.

42

152539A1

GUARD

- hose

1шт.
