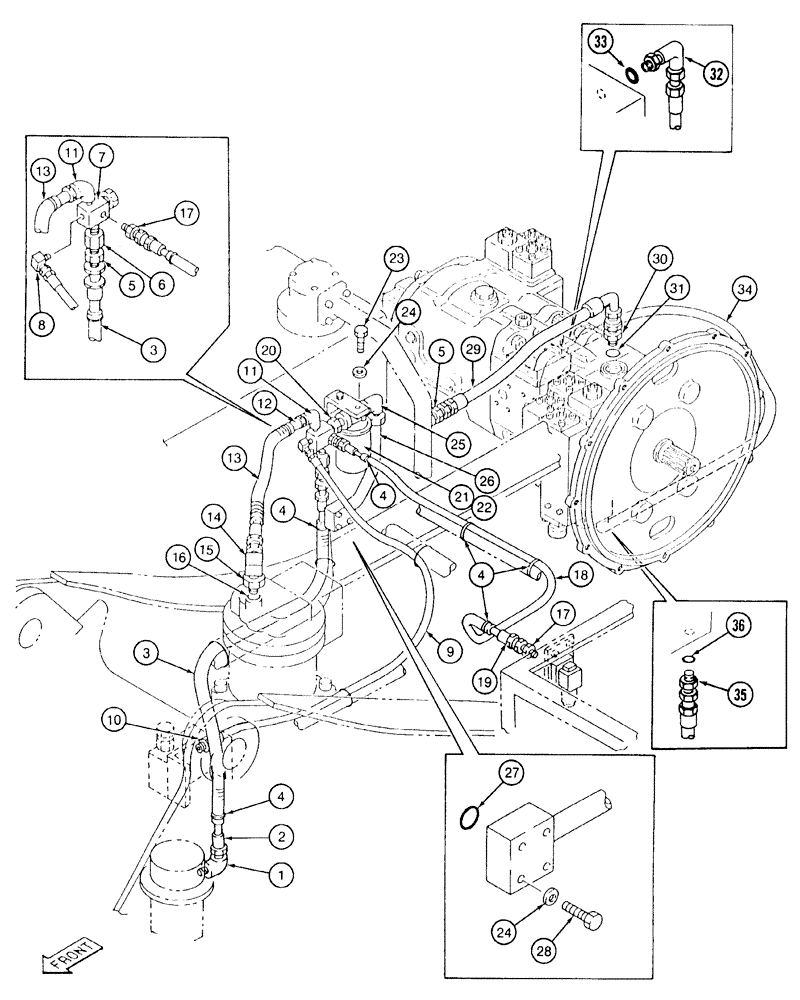

Запчасти Case 9040 (8-10) - BASIC HYDRAULIC CIRCUIT, RETURN LINES TO FILTER AND RESERVOIR (08) - HYDRAULICS

1

153438A1

ELBOW

- 90 degree, special, at hydraulic swivel

1шт.

2

152650A1

HYDRAULIC HOSE,19.00 mm ID x 1600.00 mm

Swivel to filter 19.00 mm ID x 1600.00 mm

1шт.

3

151012A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 51-3/16 inch (1300 mm) long

1шт.

4

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

6шт.

5

150720A1

ADAPTER

- straight, special, hose

2шт.

6

152040A1

BUSHING

REDUCER -, Serial Range: adapter-manifold

1шт.

7

153500A1

MANIFOLD

- hydraulic, return line

1шт.

8

153495A1

ADAPTER

ELBOW - 90 degree, upper at manifold

1шт.

9

152765A1

HOSE

- 82-11/16 inch (2100 mm) long

1шт.

10

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight

1шт.

11

153588A1

ELBOW

- 90 degree, at manifold, upper

1шт.

12

151392A1

HOSE ASSY.,127.00 mm ID x 880.00 mm

HYDRAULIC HOSE - Swing motor to manifold 127.00 mm ID x 880.00 mm

1шт.

13

150433A1

PLASTIC-RUBBER TUBE,22 mm ID, 27 mm OD, 600 mm Length

SLEEVE - corrugated, 23-5/8 inch (600 mm) long

1шт.

14

150602A1

ADAPTER

ELBOW - 90 degree, at swing motor

1шт.

15

152726A1

SOCKET

REDUCER - special, at swing motor

1шт.

16

154487A1

O-RING

- reducer

1шт.

17

153603A1

ADAPTER

- straight

2шт.

18

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

SLEEVE - corrugated, 39-3/8 inch (1000 mm) long

1шт.

19

152807A1

HOSE ASSY.

HOSE - 49-1/4 inch (1250 mm) long

1шт.

20

152133A1

NIPPLE, LUBE

ADAPTER - straight

1шт.

21

152163A1

FILTER

ASSEMBLY - hydraulic oil, return line, Includes: Ref. 22

1шт.

22

150794A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

23

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

24

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

6шт.

25

153222A1

ELBOW

- special, 90 degree, at filter

1шт.

26

153280A1

TUBE,27.2 mm OD, 279.6, 178.6 mm Length

- at filter

1шт.

27

154529A1

O-RING

- tube

1шт.

28

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

- hex, 10 - 1.5 x 60 mm, class 10.9

4шт.

29

153282A1

HOSE ASSY.

HOSE - 25-5/8 inch (650 mm) long, Serial Range: pump-reservoir

1шт.

30

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, at pump, Includes: Ref. 31

1шт.

31

154503A1

O-RING

- adapter

1шт.

32

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, hydraulic, Includes: Ref. 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

34

152281A1

HOSE,63.00 mm ID x 800.00 mm

63.00 mm ID x 800 mm - at pump

1шт.

35

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, hydraulic, Includes: Ref. 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.
