(8-08) - BASIC HYDRAULIC CIRCUIT, PUMP TO EQUIPMENT CONTROL VALVES

Запчасти Case 9040 (8-08) - BASIC HYDRAULIC CIRCUIT, PUMP TO EQUIPMENT CONTROL VALVES (08) - HYDRAULICS

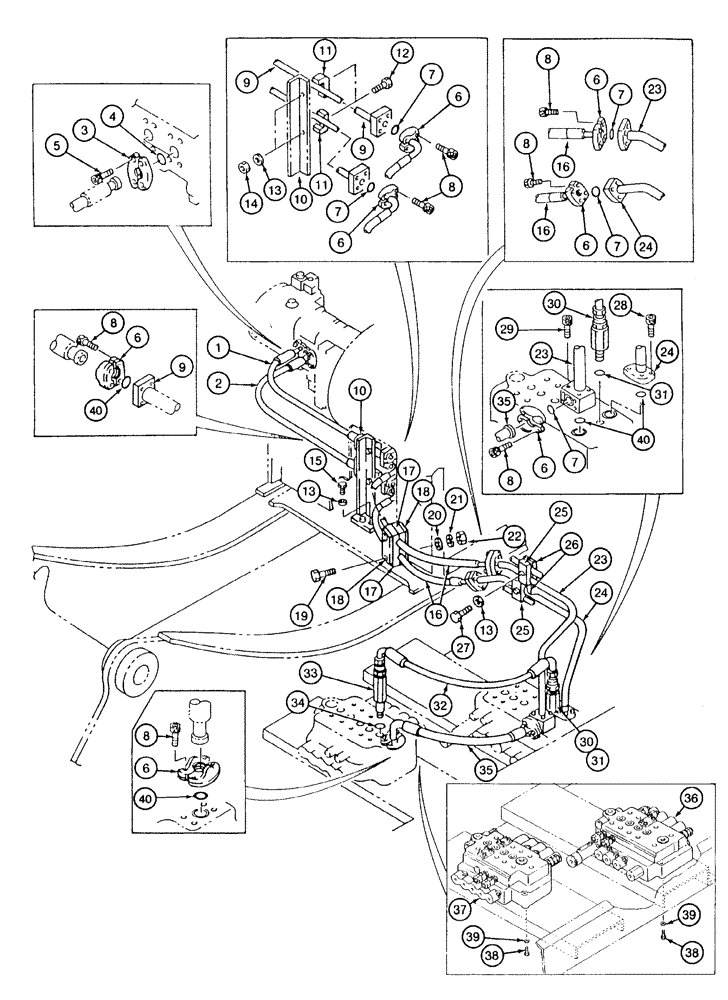

Схема запчастей Case 9040 - (8-08) - BASIC HYDRAULIC CIRCUIT, PUMP TO EQUIPMENT CONTROL VALVES (08) - HYDRAULICS
9
40
40
24
9
28
7
37
21
12
16
3
10
6
40
7
34
20
6
31
17
35
18
2
39
7
30
8
5
23
23
11
24
26
8
4
11
7
1
13
6
9
19
24
39
14
13
38
29
8
38
31
6
8
16
8
13
6
23
8
32
15
22
18
6
7
25
10
30
6
17
25
36
27
16
33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

158711A1

HYDRAULIC HOSE

at Left-Hand Port

1шт.

2

158710A1

HYDRAULIC HOSE

at Right-Hand Port

1шт.

3

152598A1

HALF-COLLAR

FLANGE - split

4шт.

4

153628A1

O-RING

- pressure line hoses at pump

2шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

8шт.

6

150561A1

FLANGE

- split

16шт.

7

154539A1

O-RING

- hose

7шт.

8

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 40 mm, class 12.9

32шт.

9

152341A1

TUBE,26mm ID, 34mm OD, 130mm L

- connecting

2шт.

10

153326A1

BRACKET

- support, tube

1шт.

11

153594A1

SPECIAL CLAMP

CLAMP - tube

2шт.

12

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

13

150811A1

WASHER

- flat, special, 12 mm

6шт.

14

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

16

152090A1

HOSE ASSY.

HOSE ASSY - Pressure line

2шт.

17

153237A1

HOSE CLAMP

CLAMP - hose

2шт.

18

153238A1

PLATE

- clamp

2шт.

19

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

- hex, 10 - 1.5 x 90 mm, class 10.9

2шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

21

892-11010

LOCK WASHER,M10

2шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

23

153383A1

TUBE

- pressure, at left-hand control valve

1шт.

24

153382A1

TUBE

- pressure, at left-hand control valve

1шт.

25

153187A1

SPECIAL CLAMP

CLAMP - tube

2шт.

26

152336A1

PLATE

- clamp

2шт.

27

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

hex, 12 - 1.75 x 65 mm, class 10.9

2шт.

28

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

SCREW - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

29

862-12095

HEX SOC SCREW,M12 x 95mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 95 mm, class 12.9

4шт.

30

153375A1

STUD

ADAPTER - special, at left-hand equipment control valve

1шт.

31

154503A1

O-RING

- adapter

1шт.

32

158713A1

HYDRAULIC HOSE

Left-Hand to Right-Hand Control Valve

1шт.

33

153426A1

STUD

ADAPTER - special, at right-hand equipment control valve

1шт.

34

154503A1

O-RING

- adapter, Includes: Ref. 34

1шт.

35

158712A1

HYDRAULIC HOSE

Crossover

1шт.

36

153354A1

CONTROL

VALVE ASSEMBLY - hydraulic control, left-hand, swing side, 4 spool section, not used on Long Reach models, parts list figures 8-74 and 8-76

1шт.

36

158640A1

VALVE, CONTROL

VALVE - control, left-hand, swing side, 4 spool section, Long Reach models only, parts list figures 8-77A and 8-77C

1шт.

37

153248A1

VALVE, CONTROL

VALVE ASSEMBLY - hydraulic control, right-hand, bucket side, 5 spool section, not used on Long Reach models, parts list figures 8-78 and 8-80

1шт.

36

158639A1

VALVE, CONTROL

VALVE - control, right-hand, bucket side, 5 spool section, Long Reach models only, parts list figures 8-81A and 8-81C

1шт.

38

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

6шт.

39

150988A1

WASHER

- flat, special, 12 mm

6шт.

40

162246A1

O-RING

- hose

4шт.
