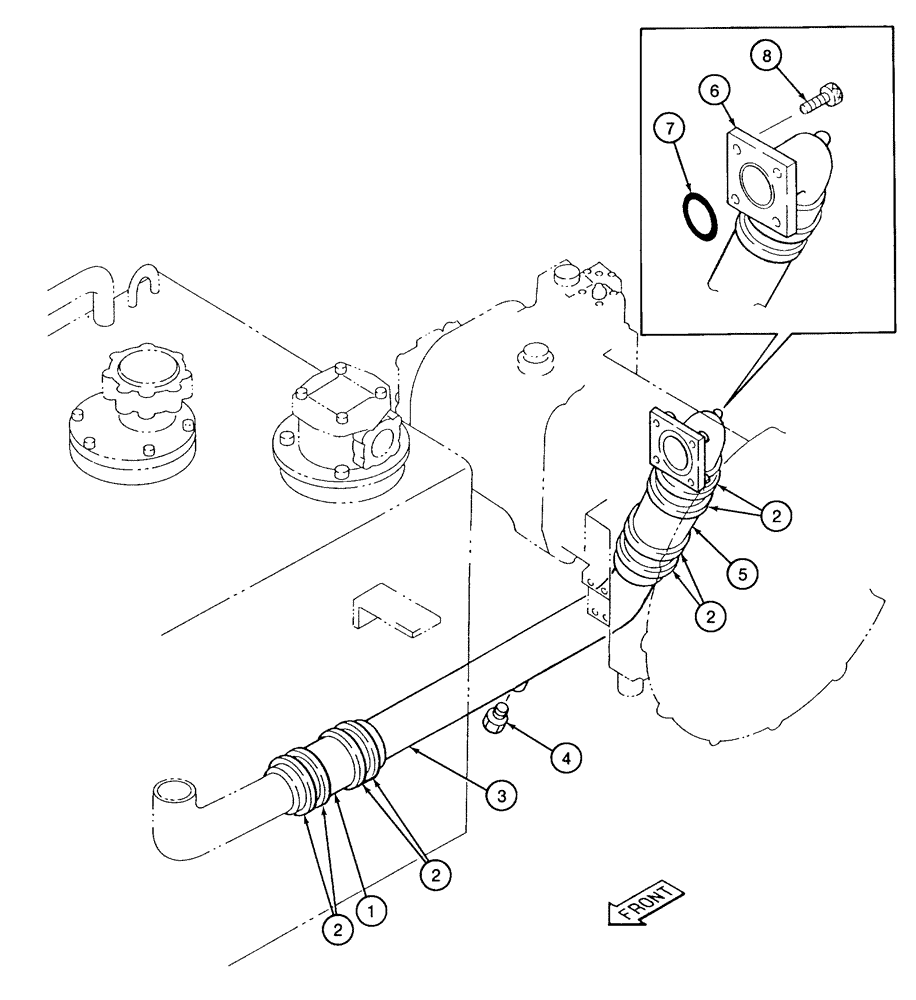

Запчасти Case 9040 (8-06) - BASIC HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (08) - HYDRAULICS

1

150633A1

HOSE

- 7-7/8 inch (200 mm) long, at reservoir

1шт.

2

152782A1

COLLAR

CLAMP - adjustable, hose

8шт.

3

153332A1

TUBE,76.3 mm OD, 997.8, 143.5 mm Length

- suction, center, with tapped boss

1шт.

4

151002A1

PLUG

- pipe, center suction tube

1шт.

5

153203A1

HOSE

- 10-11/16 inch (270 mm) long, suction line at pump

1шт.

6

153415A1

TUBE,76.3 mm OD, 215.7, 123.3 mm Length

- suction line, at pump

1шт.

7

154679A1

O-RING

- suction line tube at pump

1шт.

8

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.
