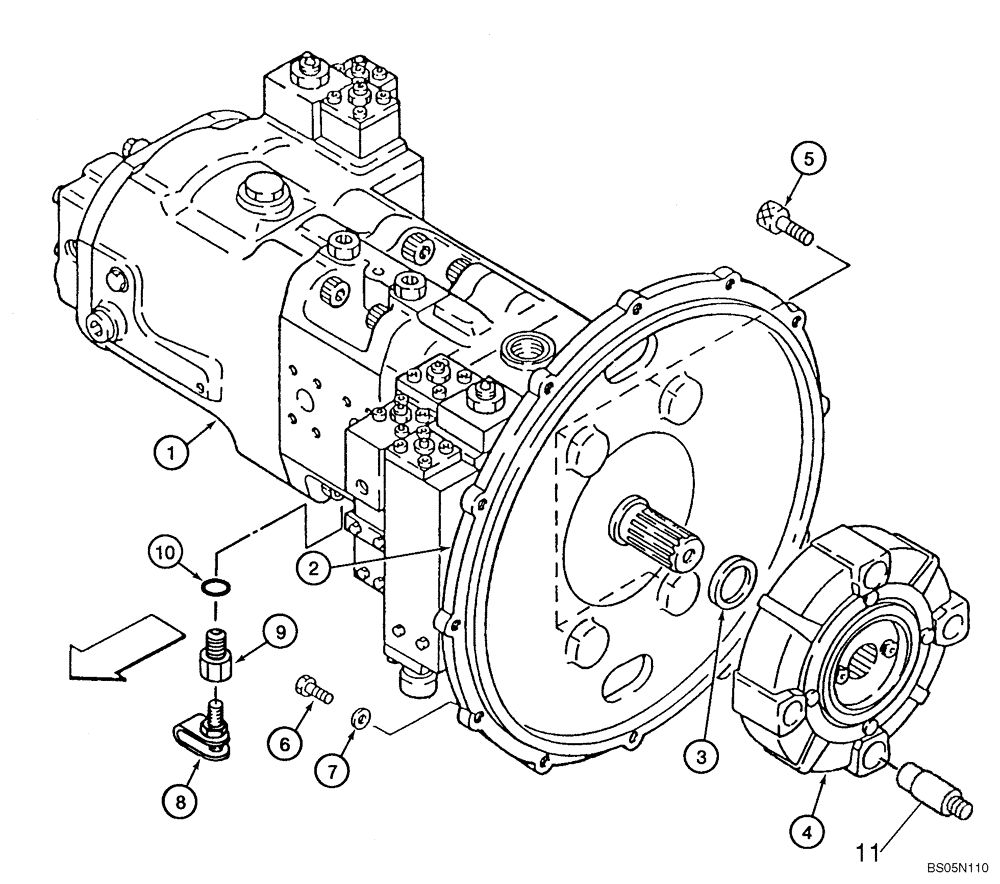

Запчасти Case 9040 (8-04) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

153393A1

PUMP, HYDRAULIC

Equipment, parts list figures 8-14 through 8-24

1шт.

2

153437A1

FLANGE

mount

1шт.

3

153405A1

SPACER

coupling

1шт.

4

153136A1

COUPLING

Hydraulic pump

1шт.

5

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

hex socket, 20 - 2.5 x 55 mm, class 12.9

4шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

7

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

8шт.

8

S243647

COUPLING

quick disconnect, see page 8-47 for component parts

2шт.

9

151136A1

BUSHING

straight, special

2шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

11

153454A1

DOWEL

Special

4шт.
