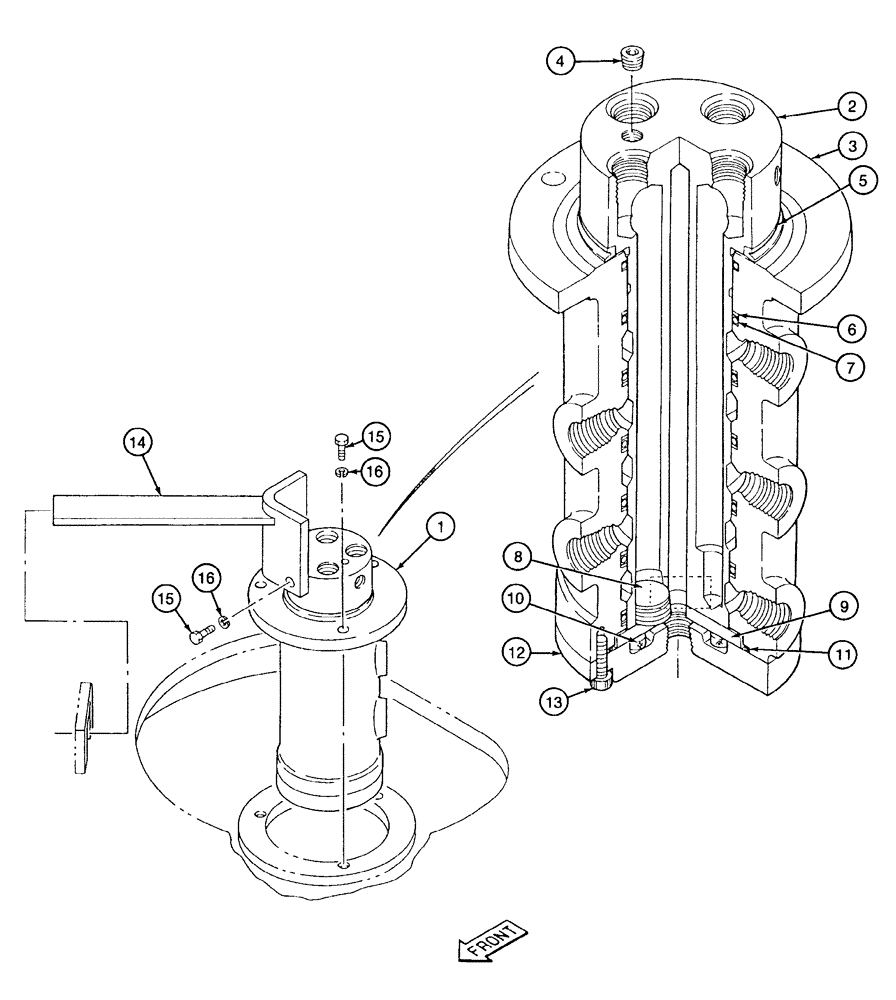

Запчасти Case 9040 (6-18) - HYDRAULIC SWIVEL (06) - POWER TRAIN

1

153373A1

JOINT

SWIVEL ASSEMBLY - hydraulic, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - swivel

1шт.

3

NSS

NOT SOLD SEPARAT

ROTOR - hydraulic swivel

1шт.

4

151030A1

PLUG

- port

1шт.

5

164930A1

COMPRESSOR

V-RING - swivel

1шт.

6

158831A1

BACK-UP RING

RING-back-up

10шт.

7

154704A1

O-RING

- seal, to shaft seal

7шт.

8

151035A1

PLUG

- pipe

4шт.

9

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

10

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 20 mm, class 12.9

4шт.

11

154741A1

O-RING

SEAL - swivel base

1шт.

12

164929A1

BASE

CAP - swivel

1шт.

13

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

6шт.

14

153355A1

BAR

COLLAR - lock

1шт.

15

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

5шт.

16

150988A1

WASHER

- flat, special, 12 mm

5шт.
