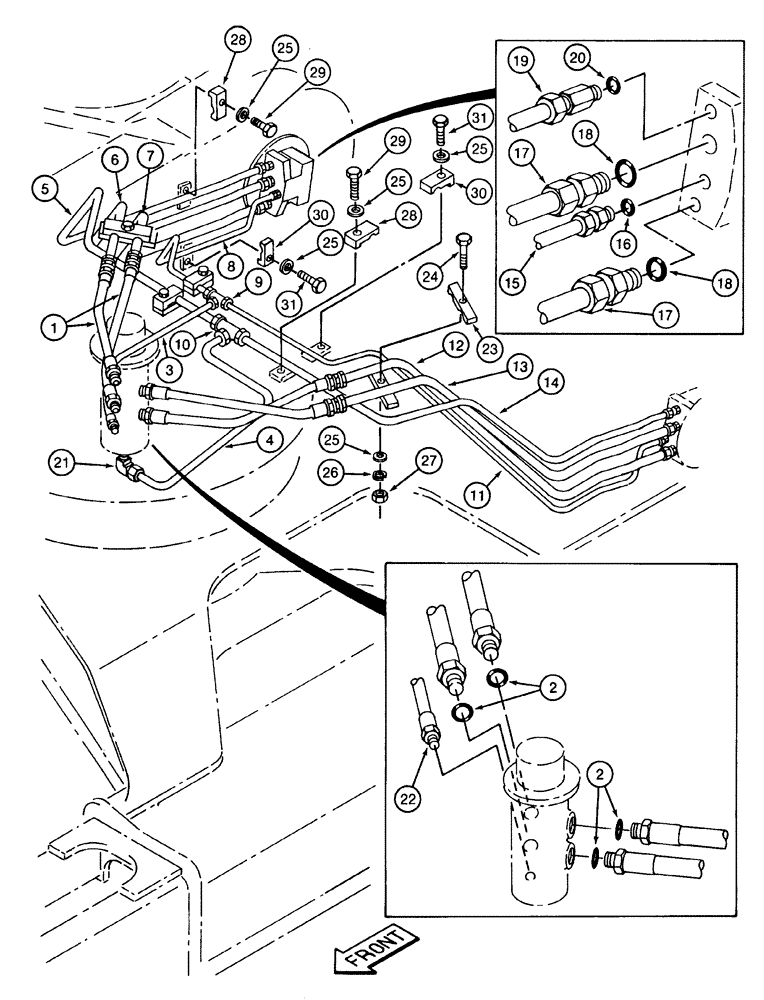

Запчасти Case 9040 (6-16) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTOR, TIMBER KING MODELS (06) - POWER TRAIN

1

151337A1

HOSE ASSY.,700.00 mm

HYDRAULIC HOSE , From swivel 700.00 mm

4шт.

2

154503A1

O-RING

- hose

4шт.

3

151800A1

TUBE,635.4, 69 mm Length

- to tee, to tee

1шт.

4

151786A1

TUBE,623.2, 130 mm Length

- to tee, bottom of swivel, from bottom of swivel

1шт.

5

158196A1

TUBE

- upper right-hand, upper

1шт.

6

158192A1

TUBE,1257.1, 543.4 mm Length

- center, right-hand, center

1шт.

7

158194A1

TUBE

- lower right-hand, lower

1шт.

8

158198A1

TUBE

- from tee, right-hand, from tee

1шт.

9

151794A1

TEE

- special

1шт.

10

151802A1

TEE

- special

1шт.

11

158199A1

TUBE

- from tee, left-hand, from tee

1шт.

12

158195A1

TUBE

- lower left-hand, lower

1шт.

13

158193A1

TUBE,1252.5, 543.4 mm Length

- center, left-hand, center

1шт.

14

158197A1

TUBE

- upper left-hand, upper

1шт.

15

152567A1

CONNECTOR, ELEC

ADAPTER - center lower port

2шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tube

2шт.

17

152731A1

CONNECTOR, ELEC

ADAPTER - tube

4шт.

18

154523A1

O-RING

- adapter

4шт.

19

151575A1

CONNECTOR, ELEC

ADAPTER - straight, upper

2шт.

20

154487A1

O-RING

- adapter

2шт.

21

153236A1

ELBOW

- special

1шт.

22

152601A1

CONNECTOR, ELEC

ADAPTER - swivel, side

1шт.

23

150429A1

CLAMP

- tube, double, 30 mm

2шт.

24

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

25

150988A1

WASHER

- flat, special, 12 mm

10шт.

26

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

27

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

28

151565A1

SPECIAL CLAMP

CLAMP - tube

4шт.

29

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

30

151124A1

SPECIAL CLAMP

CLAMP - tube

4шт.

31

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

4шт.
