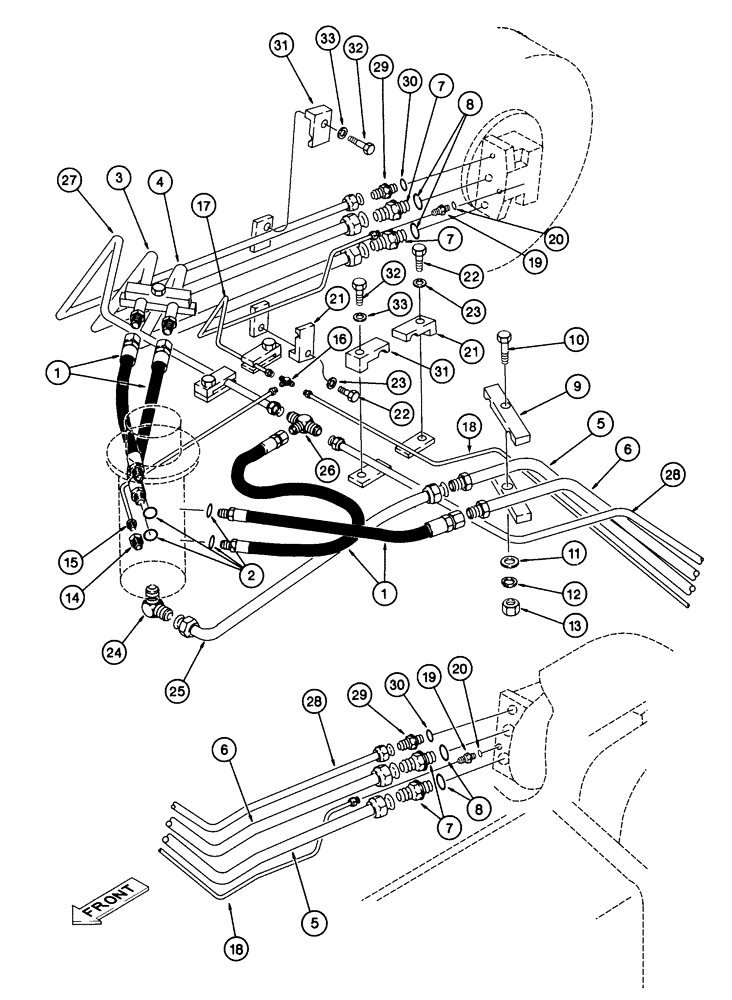

Запчасти Case 9040 (6-14) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTOR (06) - POWER TRAIN

1

151337A1

HOSE ASSY.,700.00 mm

HYDRAULIC HOSE , To track drive motor, Includes Ref. 2 700.00 mm

4шт.

2

154503A1

O-RING

-, Serial Range: hose-swivel

4шт.

3

151896A1

TUBE

- swivel to right-hand track drive motor

1шт.

4

151905A1

TUBE

- swivel to right-hand track drive motor

1шт.

5

151910A1

TUBE

- swivel to left-hand track drive motor

1шт.

6

151901A1

TUBE

- swivel to left-hand track drive motor

1шт.

7

152731A1

CONNECTOR, ELEC

ADAPTER - at track drive motor and lower port

4шт.

8

154523A1

O-RING

- at track drive motor

4шт.

9

150429A1

CLAMP

- tube, double, 30 mm

2шт.

10

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

11

150988A1

WASHER

- flat, special, 12 mm

2шт.

12

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

13

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

14

152601A1

CONNECTOR, ELEC

ADAPTER - swivel, side

1шт.

15

151800A1

TUBE,635.4, 69 mm Length

- to tee, swivel to tee

1шт.

16

151794A1

TEE

- special

1шт.

17

151926A1

TUBE

- tee to right-hand track drive motor

1шт.

18

151932A1

TUBE

- tee to left-hand track drive motor

1шт.

19

152567A1

CONNECTOR, ELEC

ADAPTER - center lower port, at track drive motor

2шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- at drive motor

2шт.

21

151124A1

SPECIAL CLAMP

CLAMP - tube

4шт.

22

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

4шт.

23

150988A1

WASHER

- flat, special, 12 mm

4шт.

24

153236A1

ELBOW

- special, swivel bottom port

1шт.

25

151786A1

TUBE,623.2, 130 mm Length

- to tee, bottom of swivel, bottom of swivel

1шт.

26

151802A1

TEE

- special

1шт.

27

151916A1

TUBE

- tee to right-hand track drive motor

1шт.

28

151920A1

TUBE

- tee to left-hand track drive motor

1шт.

29

151575A1

CONNECTOR, ELEC

ADAPTER - straight, at track drive motor

2шт.

30

154487A1

O-RING

- adapter

2шт.

31

151565A1

SPECIAL CLAMP

CLAMP - tube

4шт.

32

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

33

150988A1

WASHER

- flat, special, 12 mm

4шт.
