(6-12) - TRACK DRIVE HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC SWIVEL

Запчасти Case 9040 (6-12) - TRACK DRIVE HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC SWIVEL (06) - POWER TRAIN

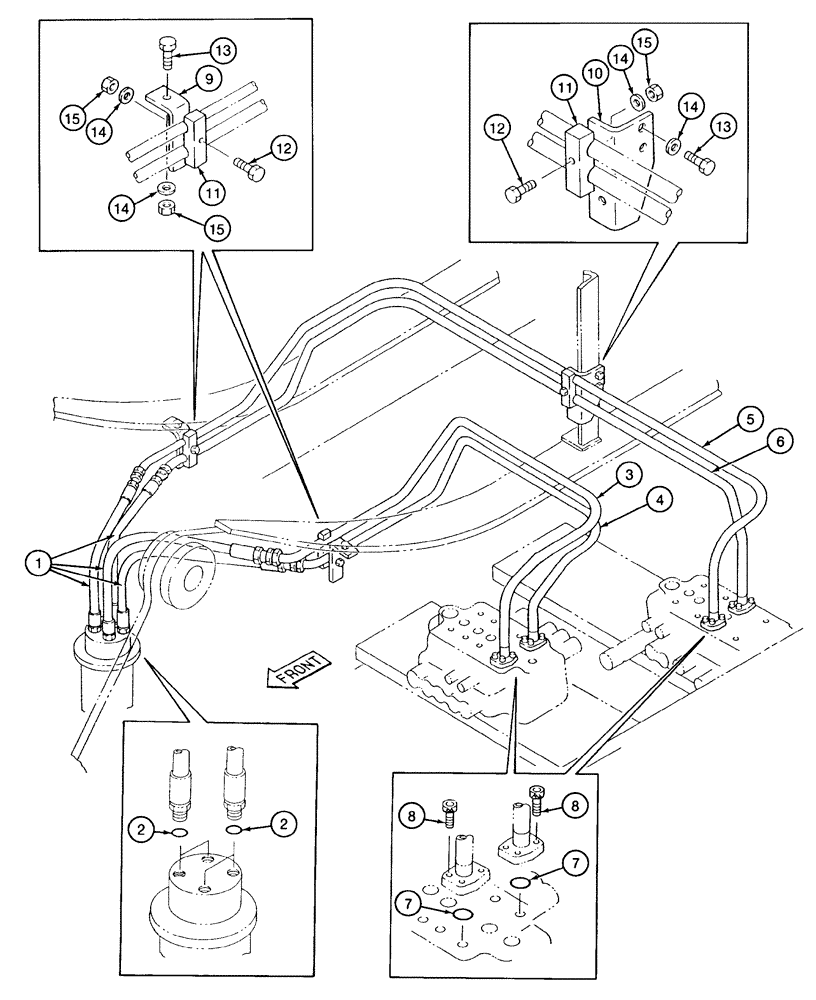

Схема запчастей Case 9040 - (6-12) - TRACK DRIVE HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC SWIVEL (06) - POWER TRAIN
2
9
15
14
14
12
5
15
15
11
11
13
7
8
2
1
13
6
14
14
7
10
3
4
12
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

158714A1

HOSE

- at swivel, Includes: Ref. 2

4шт.

2

154503A1

O-RING

, Serial Range: --swivel

4шт.

3

153427A1

TUBE,622, 725.9 mm Length

- front control valve, upper

1шт.

4

153256A1

TUBE

- front control valve, lower

1шт.

5

153255A1

TUBE

- rear control valve, upper

1шт.

6

153253A1

TUBE

- rear control valve, lower

1шт.

7

154529A1

O-RING

- at control valve

4шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

16шт.

9

153339A1

BRACKET

- mounting, tube

2шт.

10

153285A1

BRACKET

- mounting, tube

1шт.

11

150485A1

SPECIAL CLAMP

CLAMP - tube, double, 30 mm

3шт.

12

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

3шт.

13

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

4шт.

14

150811A1

WASHER

- flat, special, 12 mm

7шт.

15

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

5шт.
