(6-10) - TRACK DRIVE CONTROLS

Запчасти Case 9040 (6-10) - TRACK DRIVE CONTROLS (06) - POWER TRAIN

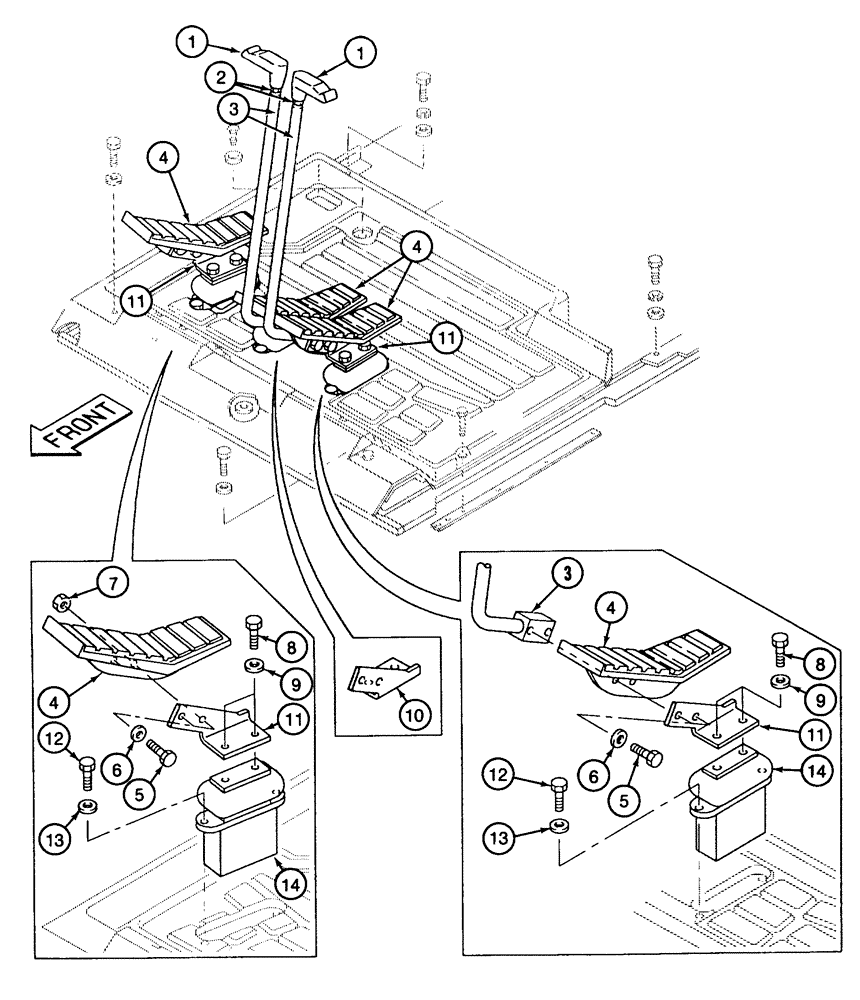

Схема запчастей Case 9040 - (6-10) - TRACK DRIVE CONTROLS (06) - POWER TRAIN
2
14
4
3
3
4
13
13
11
14
4
11
6
9
8
9
12
1
5
11
1
11
6
8
10
5
4
12
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150347A1

KNOB

HANDLE - control, track drive

2шт.

2

150373A1

NUT

- hex, 12 mm - 1.25, class 12.9, jam, special

2шт.

3

151634A1

LEVER

- hand control, track drive

2шт.

4

150524A1

PEDAL

- foot control, track drive

3шт.

5

150555A1

BOLT,High Strength, Hex, M10 x 30mm

BOLT - hex, 10 - 1.5 x 30 mm, class 10.9, Serial Range: pedal-lever

6шт.

6

150604A1

WASHER

- special

6шт.

7

150363A1

NUT

- hex, 10 mm - 1.5, class 12.9, special

2шт.

8

150548A1

BOLT,High Strength, Hex, M10 x 20mm

BOLT - hex, 10 - 1.5 x 20 mm, class 10.9, special, Serial Range: pedal-bracket

6шт.

9

150604A1

WASHER

- special

6шт.

10

151410A1

BRACKET

- pedal mounting, center

1шт.

11

151404A1

SUPPORT

BRACKET - pedal mounting, left-hand and far right

2шт.

12

150552A1

BOLT,High Strength, Hex, M10 x 25mm

BOLT - hex, 10 - 1.5 x 25 mm, class 10.9, special

6шт.

13

150604A1

WASHER

- special

6шт.

14

153090A1

VALVE

ASSEMBLY - remote control, parts list figure 8-60

3шт.
