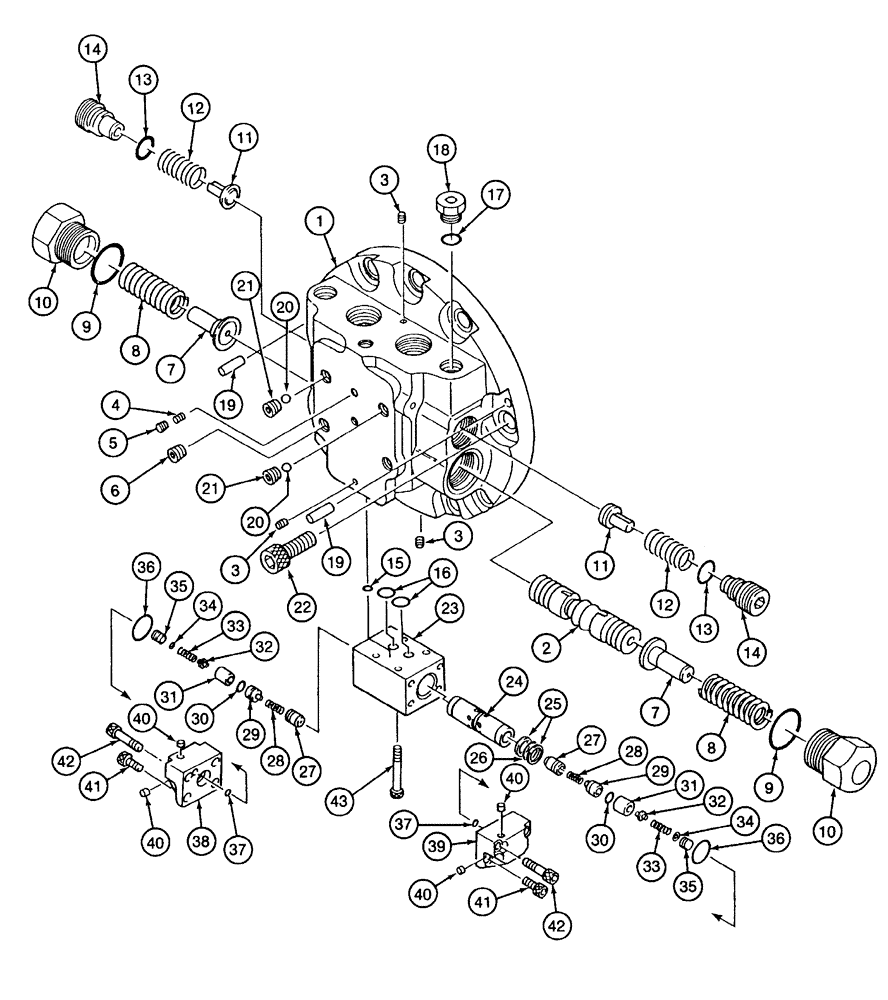

Запчасти Case 9040 (6-08) - TRACK DRIVE MOTOR ASSEMBLY, HOUSING AND VALVES (06) - POWER TRAIN

151890A1

MOTOR

ASSEMBLY - track drive, Includes: Ref. 1 - 43

1шт.

155828A1

MOTOR

ASSEMBLY - track drive, includes parts on figures 6-06 and 6-08, Includes: Ref. 1 - 43

2шт.

155829A1

FLANGE ASSY

HOUSING ASSEMBLY - track drive motor, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - housing, motor

1шт.

3

155680A1

EXPANDER

PLUG - expander port

6шт.

4

NSS

NOT SOLD SEPARAT

ORIFICE - plug

1шт.

5

151022A1

PLUG

- hex socket, special, housing

1шт.

6

151026A1

PLUG

- port, housing

2шт.

7

155595A1

STOP

POPPET - valve

2шт.

8

156074A1

SPRING

- detent

2шт.

9

154539A1

O-RING

- plug

2шт.

10

155474A1

PLUG

- hex

2шт.

11

155939A1

VALVE

- check

2шт.

12

156069A1

SPRING

- valve

2шт.

13

155095A1

O-RING

- valve

2шт.

14

155469A1

PLUG

- port

2шт.

15

154455A1

O-RING

- small, relief valve

1шт.

16

154491A1

O-RING

- large, relief valve

2шт.

17

154487A1

O-RING

- port plug

1шт.

18

155492A1

PLUG

- housing

1шт.

19

837-10032

DOWEL,10mm OD x 32mm L

PIN - dowel, 10 x 32 mm, hardened

2шт.

20

155957A1

BALL

- steel

2шт.

21

157036A1

PLUG

- housing

2шт.

22

863-16040

HEX SOC SCREW,M16 x 40mm, Cl 12.9

BOLT - hex socket, 16 - 2.0 x 40 mm, class 12.9

9шт.

155831A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, Includes: Ref. 23 - 43

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - valve

1шт.

25

153979A1

BACK-UP RING

RING - backup

2шт.

26

154499A1

O-RING

- valve guide

1шт.

27

NSS

NOT SOLD SEPARAT

PLUNGER - valve

2шт.

28

NSS

NOT SOLD SEPARAT

SPRING - valve

2шт.

29

NSS

NOT SOLD SEPARAT

PLUNGER - valve

2шт.

30

154475A1

O-RING

- plunger

2шт.

31

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

32

NSS

NOT SOLD SEPARAT

POPPET - valve

2шт.

33

NSS

NOT SOLD SEPARAT

SPRING - valve

2шт.

34

NSS

NOT SOLD SEPARAT

SHIM - valve

2шт.

35

NSS

NOT SOLD SEPARAT

PISTON - valve

2шт.

36

154529A1

O-RING

- valve body

2шт.

37

154447A1

O-RING

- cover

2шт.

38

NSS

NOT SOLD SEPARAT

COVER - left-hand, valve

1шт.

39

NSS

NOT SOLD SEPARAT

COVER - right-hand, valve

1шт.

40

155493A1

PLUG

- hex socket head, special

4шт.

41

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

SCREW, Hex Soc Hd, M10 x 25, 12.9

4шт.

42

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 45 mm, class 12.9

4шт.

43

863-8065

HEX SOC SCREW,M8 x 65mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 65 mm, class 12.9

4шт.
