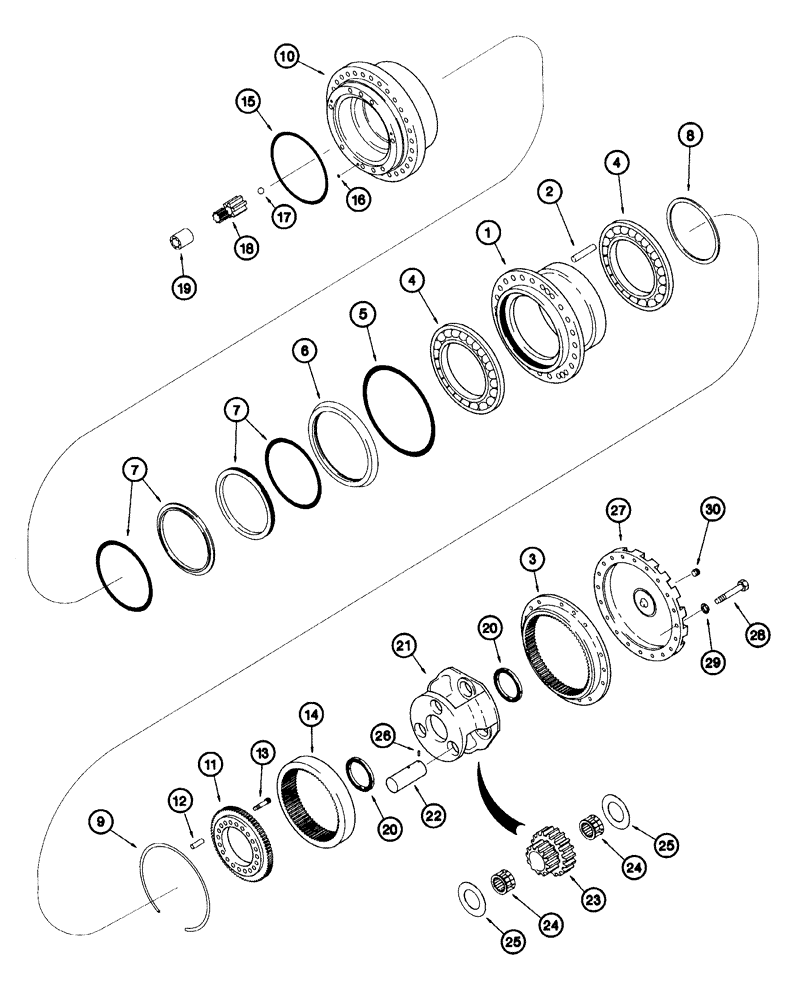

Запчасти Case 9040 (6-04) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

151890A1

MOTOR

ASSEMBLY - track drive, Includes: Ref. 1 - 30

1шт.

158038A1

TRANSMISSION

ASSEMBLY - final drive, Includes: Ref. 1 - 30

1шт.

158040A1

HUB

ASSEMBLY - gear, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

2

157044A1

PIN

- dowel

10шт.

3

NSS

NOT SOLD SEPARAT

HUB - gear

1шт.

4

157042A1

BEARING, BALL

BEARING - ball

2шт.

5

155035A1

O-RING

- seal

1шт.

6

157041A1

SEALING RING

RING - seal

1шт.

7

157040A1

SEAL

- four piece, includes two seals and two backup rings

1шт.

8

157045A1

SEAL

RING - bearing, set of 14, assorted, use as required

1шт.

9

157046A1

RING

- retaining

1шт.

158039A1

SPINDLE

ASSEMBLY - transmission, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

SPINDLE - gear

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - coupling

1шт.

12

157039A1

PIN

- dowel

10шт.

13

157047A1

BOLT,Hex Skt

- hex socket head, special

10шт.

14

157048A1

GEAR, RING

GEAR - ring

1шт.

15

154933A1

O-RING

- seal

1шт.

16

154455A1

O-RING

- spindle

2шт.

17

155583A1

BALL

- steel

1шт.

18

157056A1

SUN GEAR

GEAR - sun

1шт.

19

157057A1

COUPLING

- shaft

1шт.

20

156546A1

BEARING, THRUST

BEARING - thrust

1шт.

21

158041A1

CARRIER

- planetary

1шт.

22

157054A1

PIN

- special

3шт.

23

157051A1

GEAR

- cluster

3шт.

24

157052A1

BEARING, NEEDLE

BEARING - needle

6шт.

25

157053A1

WASHER

- thrust

6шт.

26

155597A1

COTTER PIN

PIN - lock

3шт.

27

157055A1

COVER

- transmission

1шт.

28

828-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

- hex, 12 - 1.75 x 85 mm, class 10.9

20шт.

29

156189A1

LOCK WASHER

- lock

20шт.

30

151033A1

PLUG

- hex socket, special

3шт.
